Investigating a Melting Stem While Refreshing a Willard Imported Briar

This smaller pipe came to me in pretty rough cosmetic condition. Marked “Willard” over “Imported Briar”. Pipedia tells us this:

“The Willard pipes were made by Sparta Industries in Sparta, N.C from 1963 to 1975 (about 60,000 pipes per week). Some were distributed by the Post and Base Exchanges that serviced the military during the Vietnam War. Others were produced for R. J. Reynolds Tobacco.”

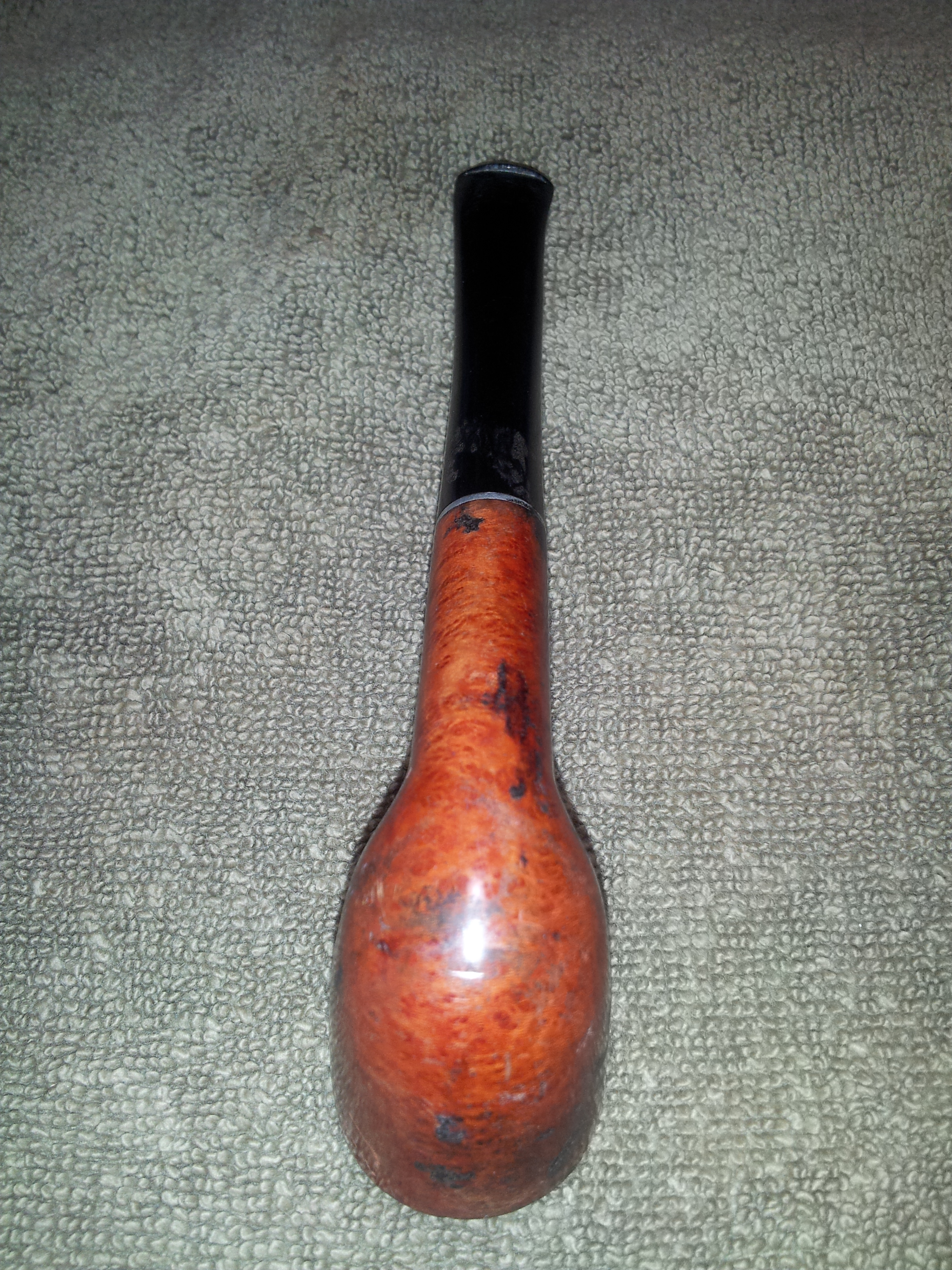

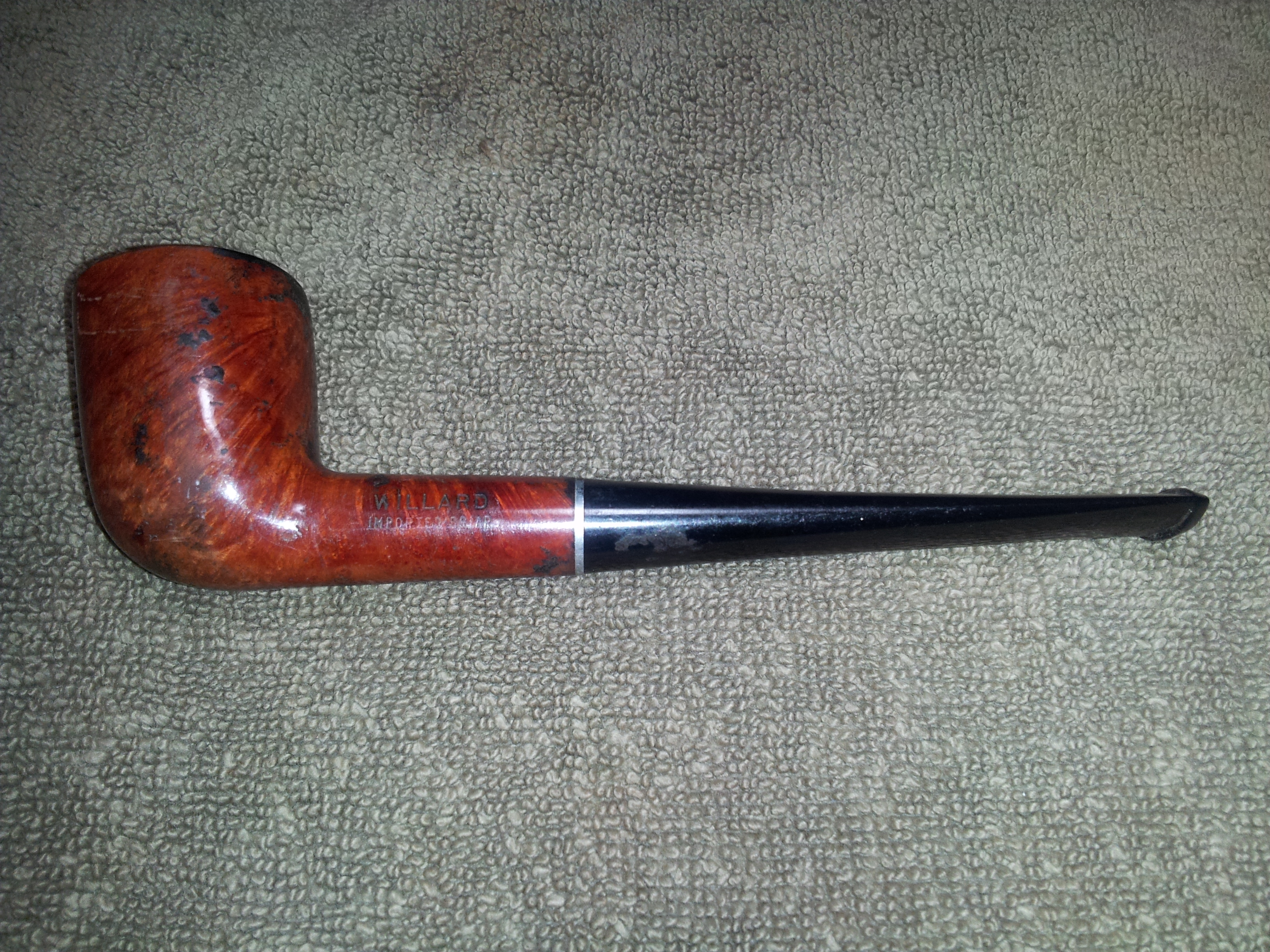

The pipe was covered in blobs of sticky gunk and general grime, the lacquer finish was chipped and peeling, and the rim was covered in a hard, flaky layer of “lava flow” – tars and other crud produced through heavy use. The stem had considerable tooth chatter in the “bite” area, both above and below, though otherwise it seemed in good shape, with little to no oxidation. The stinger was intact and, somewhat remarkably, the stem was not overturned, lining up perfectly with the shank. The lack of oxidation should have been a warning sign for me…..

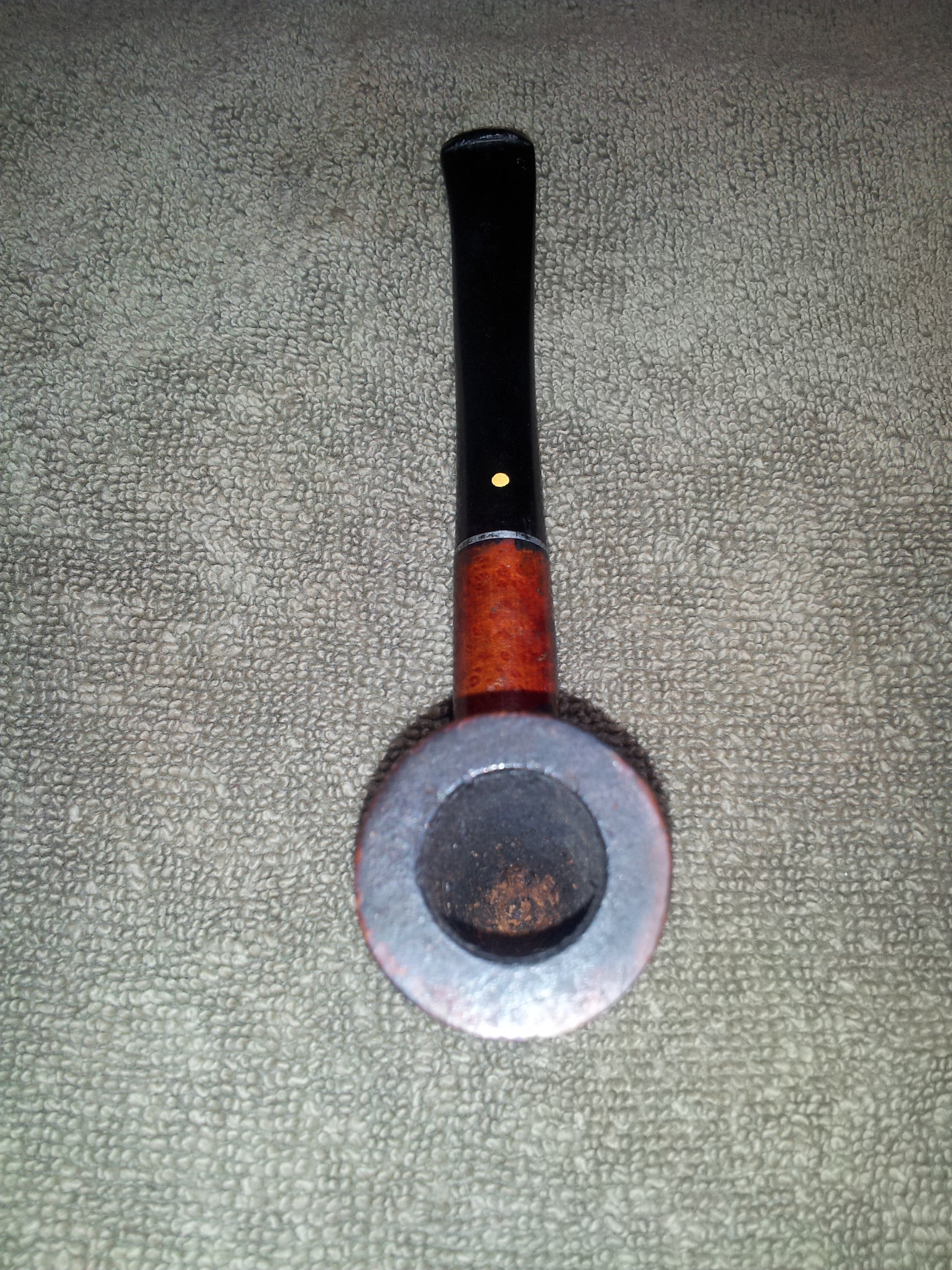

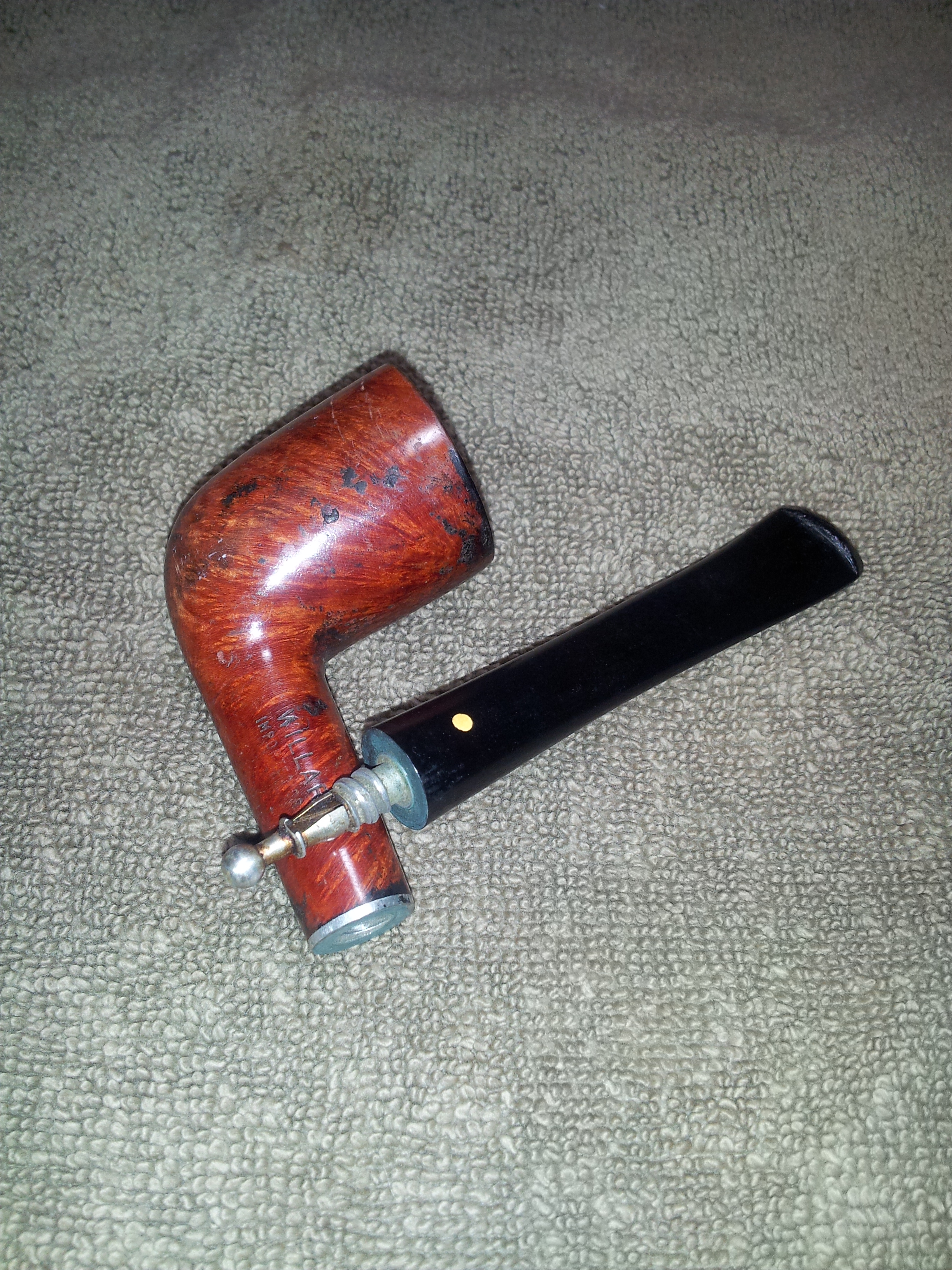

20150908_144941 20150908_144947 20150908_144958 20150908_145004 20150908_145036Starting the clean-up, I used a pen knife to scrape out the small amount of cake in the bowl, and then dropped the stummel into an isopropyl alcohol bath. I would normally have tossed the stem into an Oxyclean bath, but for some reason on this refurb, I decided to run an alcohol-dipped pipe cleaner through the stem first to see if the airway was clear.

This was where things got… weird.

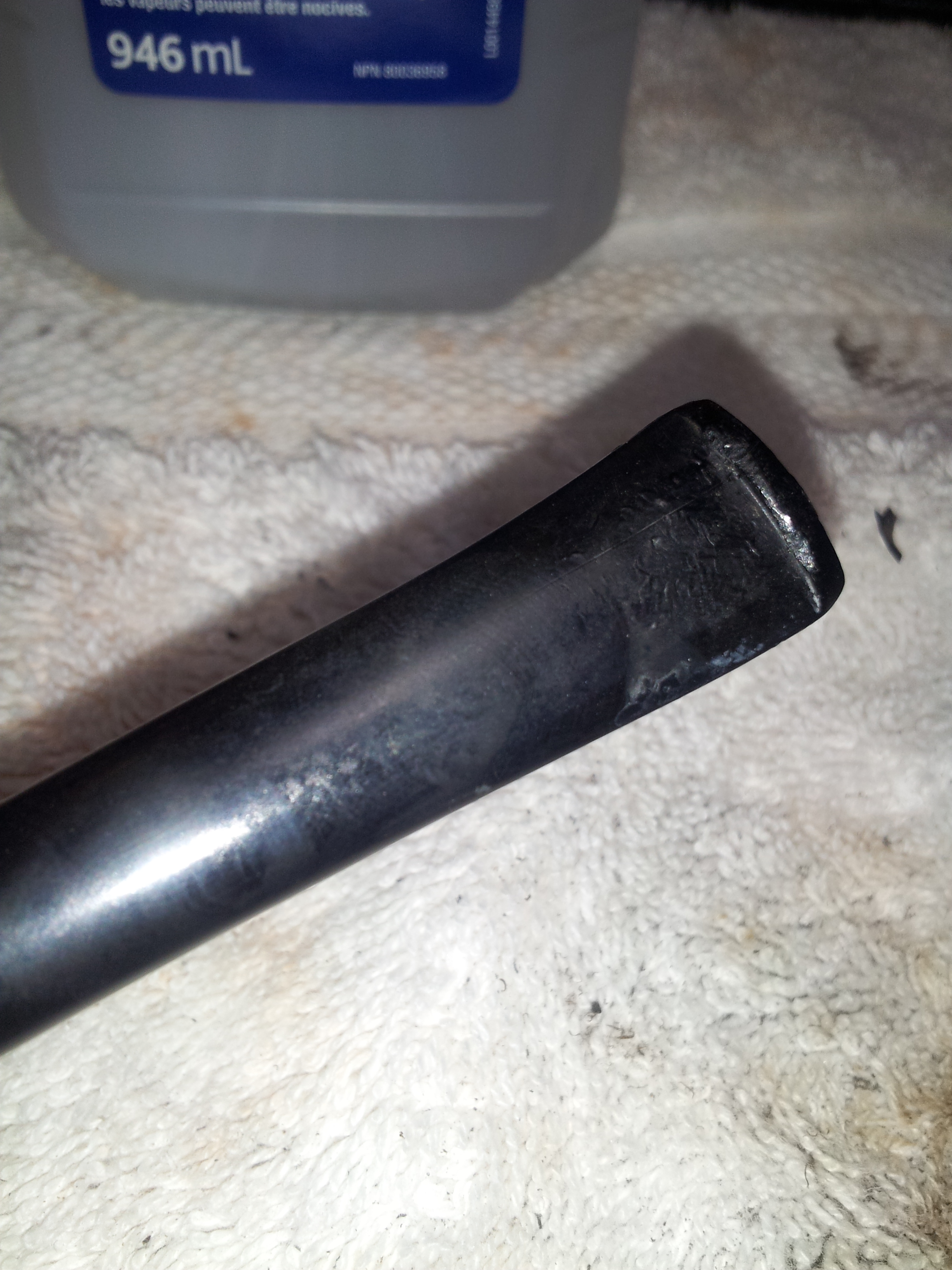

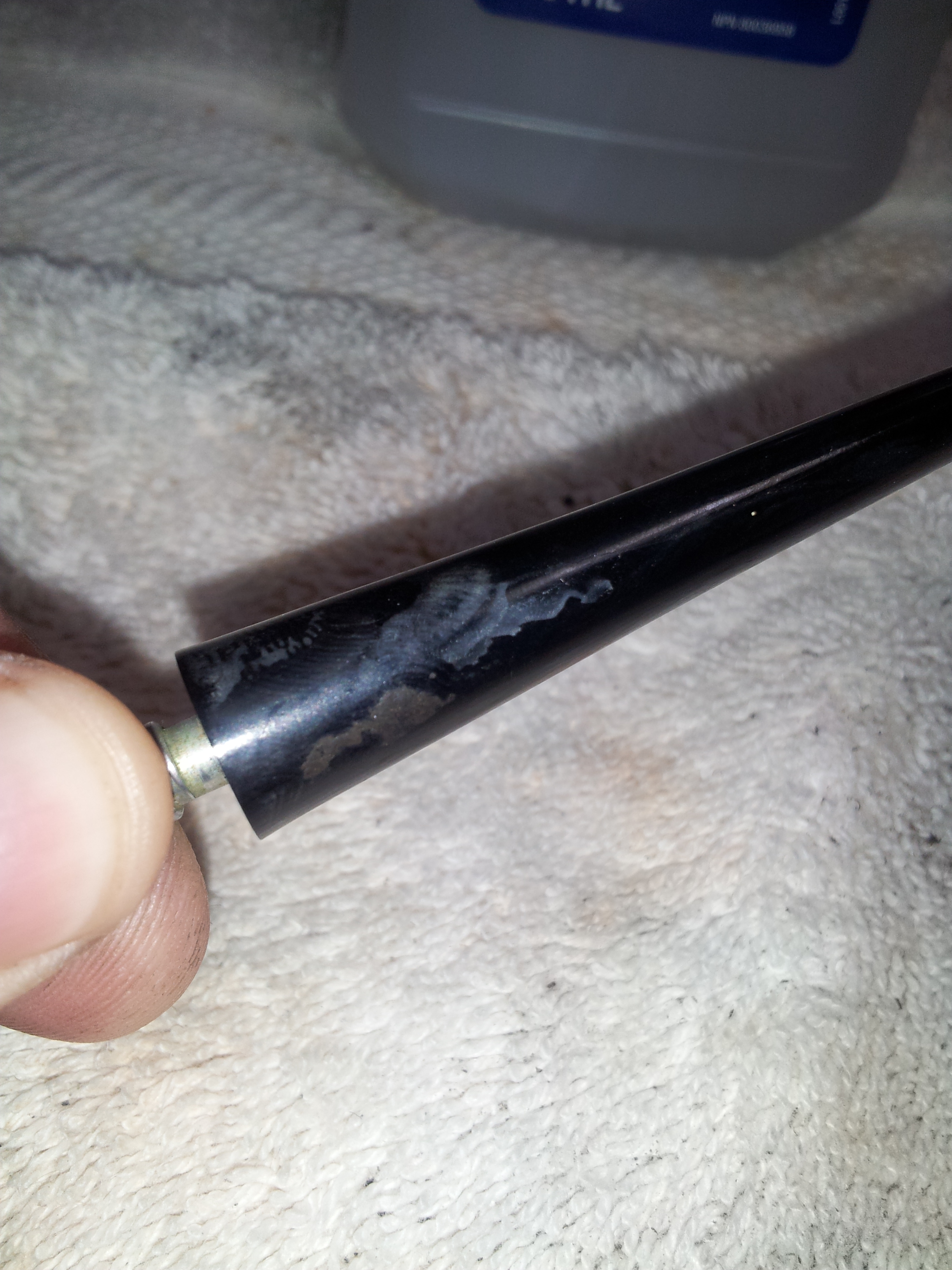

As I slipped the prepped pipe cleaner into the end of the bit, a run of isopropyl squeezed out and ran down the stem onto my fingers. Seconds later, I realized that something felt wrong. As I pulled my fingers away to examine the stem more closely, I realized the alcohol was MELTING the stem material. I had actually imprinted fingerprints in the stem where the alcohol had softened the surface! I quickly wiped away the remaining alcohol on the stem and set it aside to dry and harden up again, hoping I could fix whatever damage I had done later.

20150908_145903 20150908_145910 20150908_145915

I realized very quickly that I needed some expert advice on this one, so I fired off a (hopefully not too panicked) email to Steve Laug of rebornpipes.com, as I know he’s posted write-ups of several Willard refurbs on his blog.

While I waited to hear from Steve, I turned my attention to the stummel. Pulling it out of the isopropyl bath, I rubbed the briar in an old towel to remove whatever grime the alcohol bath had softened. Then I scrubbed the stummel with Murphy’s Oil Soap and an old toothbrush to get the rest of the dirt off. Some 0000 steel wool and a Magic Eraser took care of the rim tars and loose lacquer.

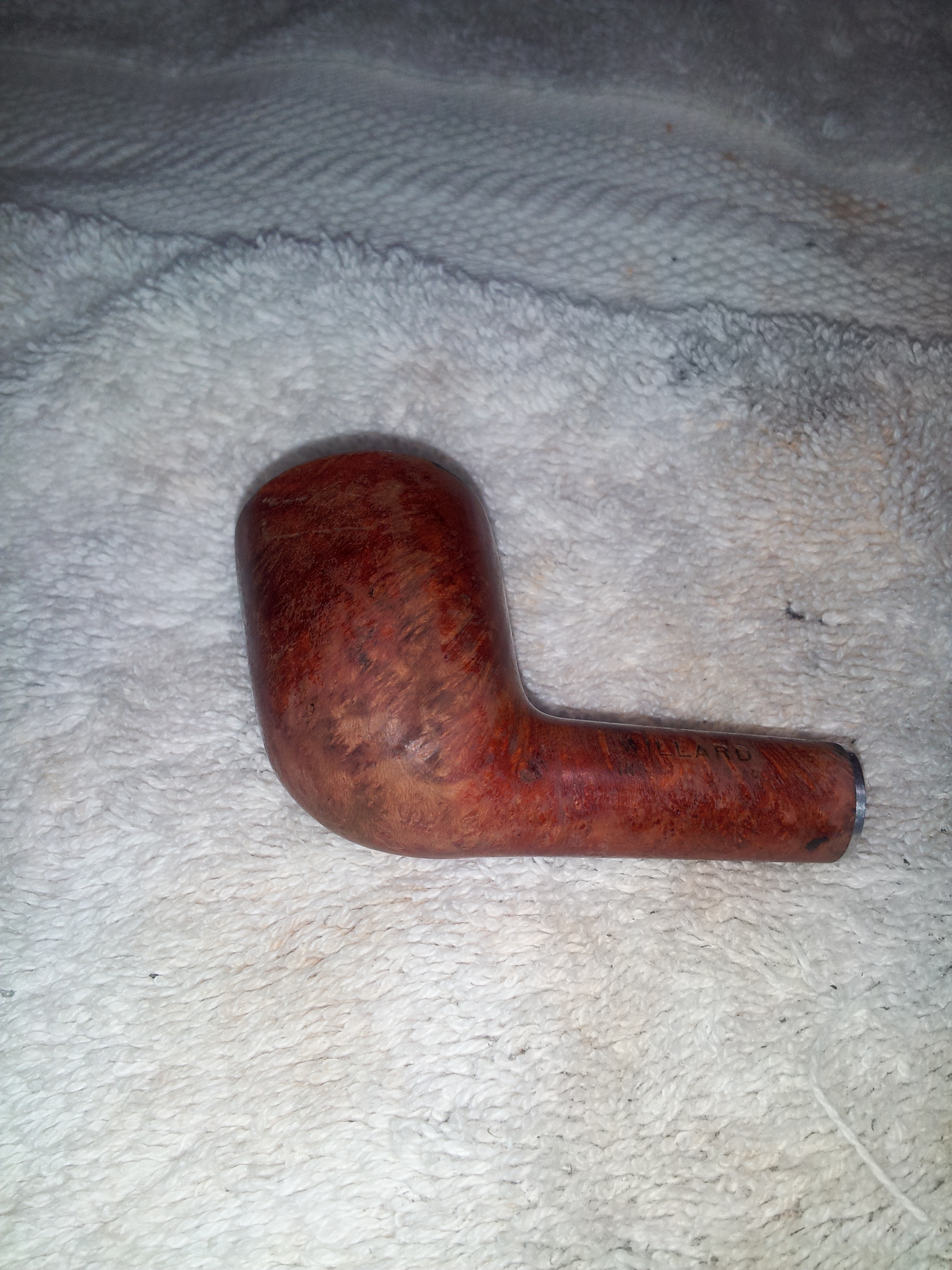

20150908_15393620150908_153947

The rest of the lacquer and most of the old red stain came off with acetone (aka nail polish remover) and cotton pads.

20150908_155523

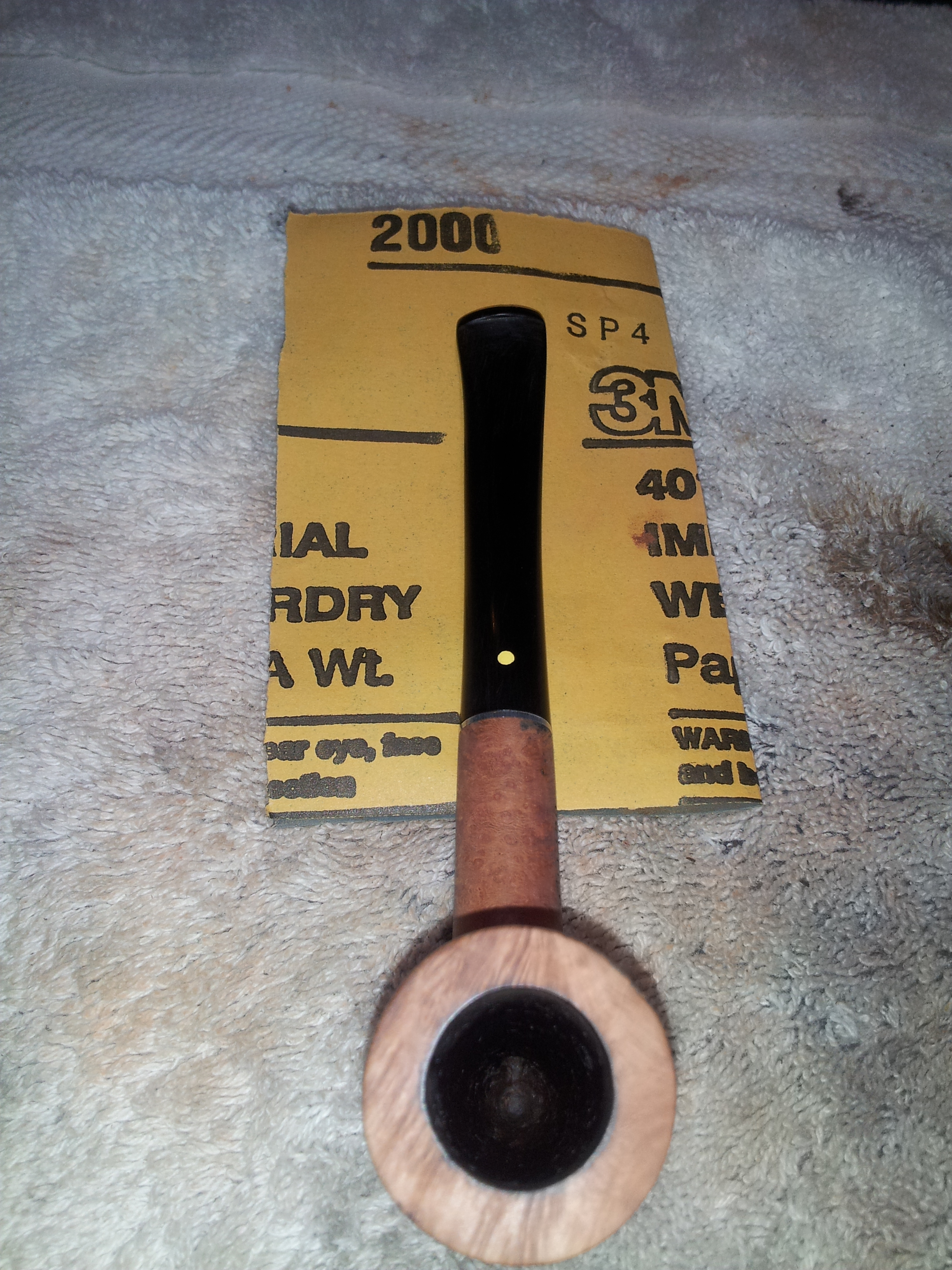

Then I reattached the (now blessedly rehardened) stem and sanded the entire pipe with 600 – 2000 grit wet paper to remove the small dents and scratches of the last 40 or so years. I sanded the stem very carefully, as the sandpaper made very quick work on the tooth chatter (and my fingerprints, thankfully).

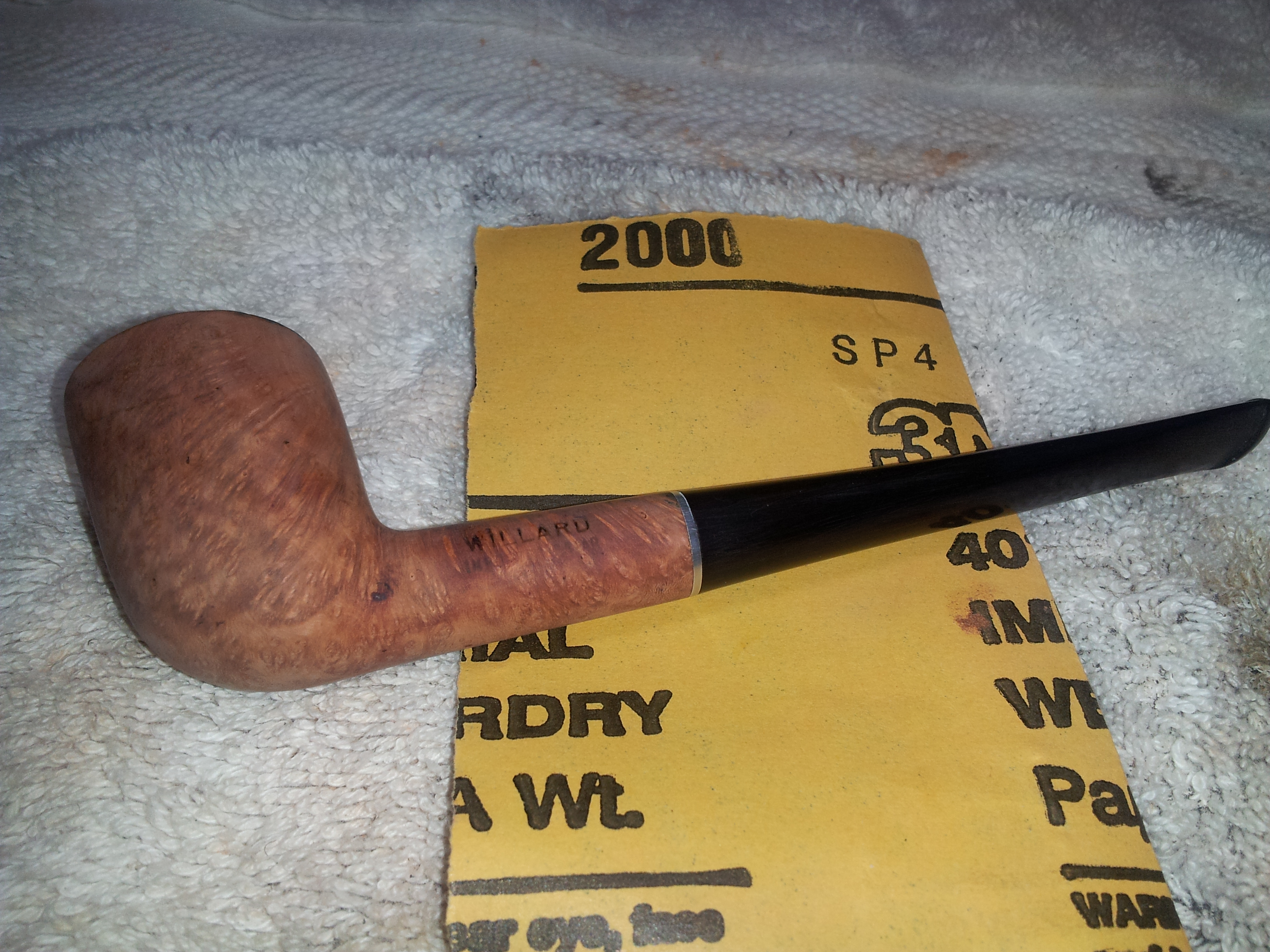

20150908_163013 20150908_163019 20150908_163026 20150908_163034

A ping in my email inbox signalled Steve’s reply. He told me that some of the early Willard pipes used stems made from a nylon/rubber compound. It came out softer than Vulcanite, but it did indeed react with alcohol. I can only guess that its use was discontinued when smokers had a hard time finding something safe to clean the stems with??

At any rate, Steve suggested using a solution of warm water and powdered cleanser (a la Comet) to clean and sanitize the stem’s airway. We also brainstormed other possibilities, which led me to a little experiment the next morning. My apologies for the lack of photos, but my attention was focused on the task at hand.

I was a bit concerned about the possibility of leaving leftover cleanser in the stem – not something I’m keen to have in my mouth, after all. So I set up a test of a few other possible cleaners to use on these wacky nylon stems. Aiming for something natural, non-harmful, cheap and readily available, I tested both lemon juice and common household white vinegar. To my joy and relief, both had no detrimental effect on the nylon stem. In fact, the vinegar in particular beaded up on the stem’s surface much like rain water on a freshly waxed car. And both test solutions are acidic enough to break down built-up tobacco tars and other residues in the pipe.

So I here humbly submit for your own testing and evaluation, my suggested approach to cleaning a nylon pipe stem. Many thanks to Steve Laug for his generous and most timely advice, without which I would probably still be staring dismally at a dirty, semi-melted pipe stem.

For heavy cleaning and sanitizing, as in the case of a new-to-you estate pipe or the long-overdue cleaning of an old favourite, Steve’s warm water and cleansing powder treatment seems in order. For lighter, regular cleaning duty, common white vinegar will do the trick. Lemon juice will also work, but I think the vinegar presents less risk of organic solids (ie lemon pulp) or sugars being left behind in the pipe. In either case a good rinse with clean water afterwards seems reasonable to remove any unwanted flavours.

Getting back to the refurb, I stained the stummel with Fiebing’s leather dye in Saddle Tan, and then, when the stain had dried, wiped it down with mineral oil to liven up the grain.

20150908_164311 20150909_094249

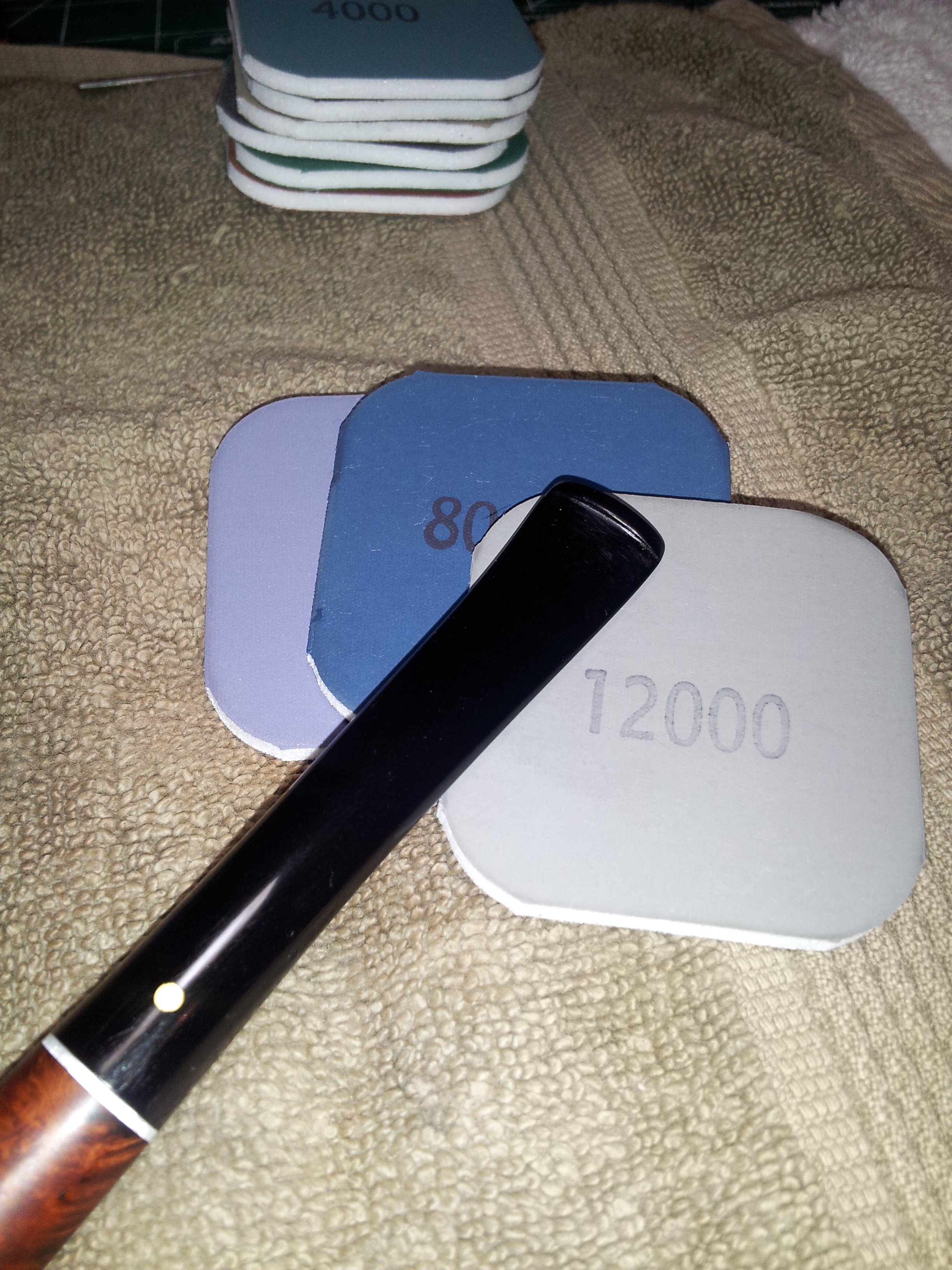

Moving my attention back to the stem, I used a series of MicroMesh sanding pads to smooth and polish the nylon, working from 3200 to 12000 grit. This very quickly removed the last traces of the “alcohol incident” and brought the shine up terrifically.

20150909_133055 20150909_133557

The pipe then went to the buffer for a 3-course meal of Red Tripoli, White Diamond several helpings of Carnauba wax. The finished pipe is pictured below. I’m very happy with the outcome, especially considering the setback with the stem. This pipe is ready for a fresh start with a new piper, who will no doubt enjoy it for years to come.

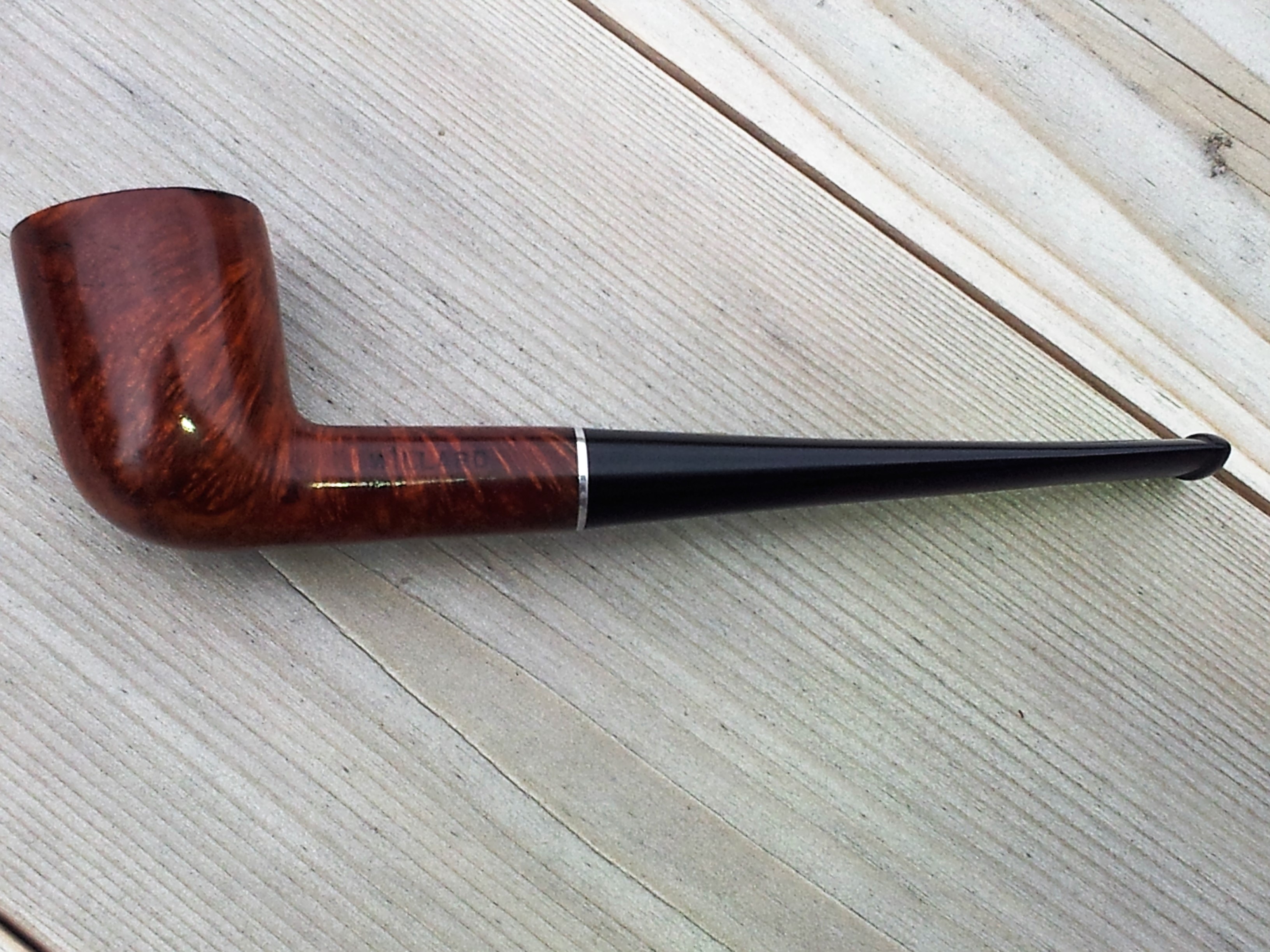

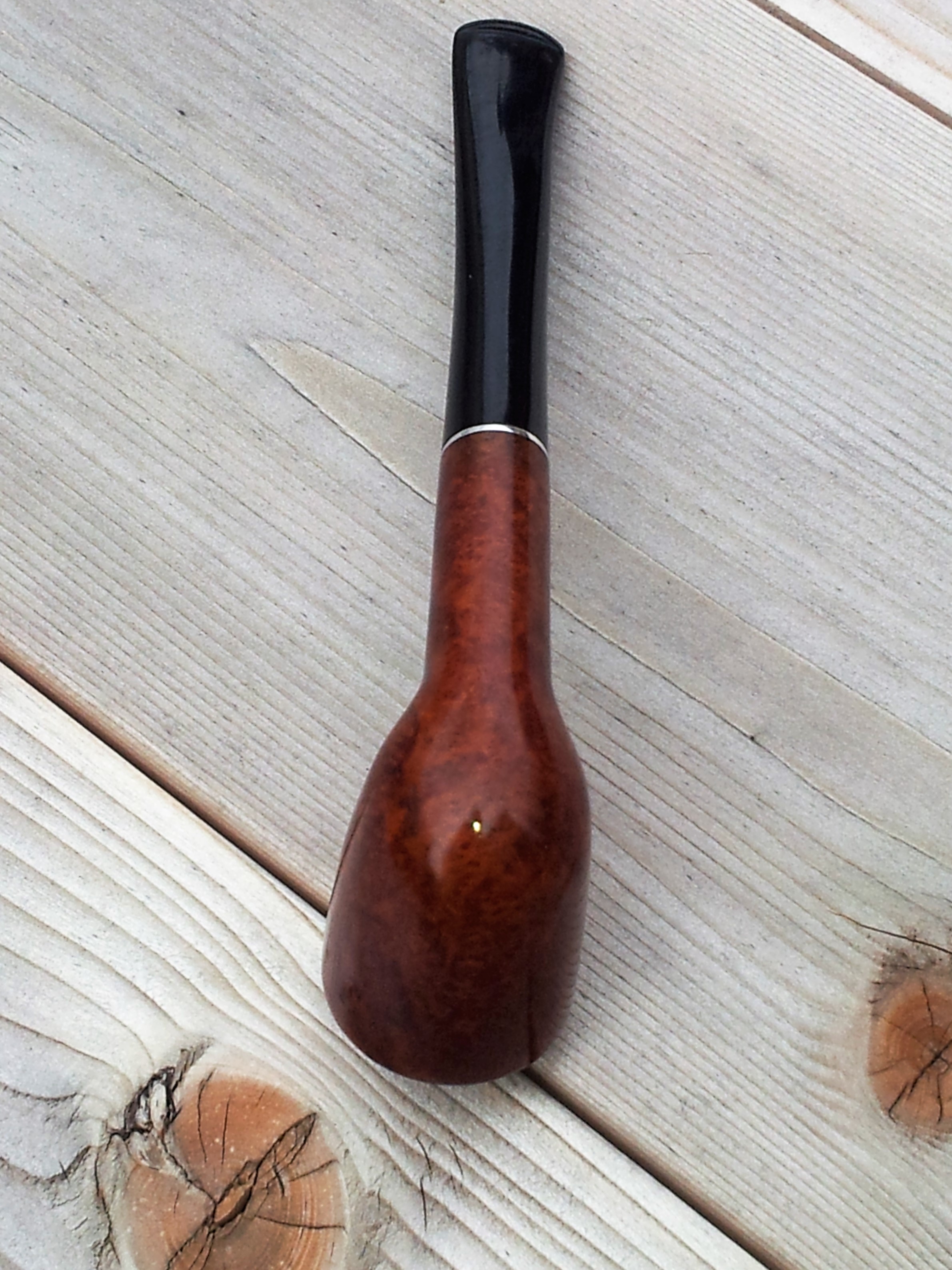

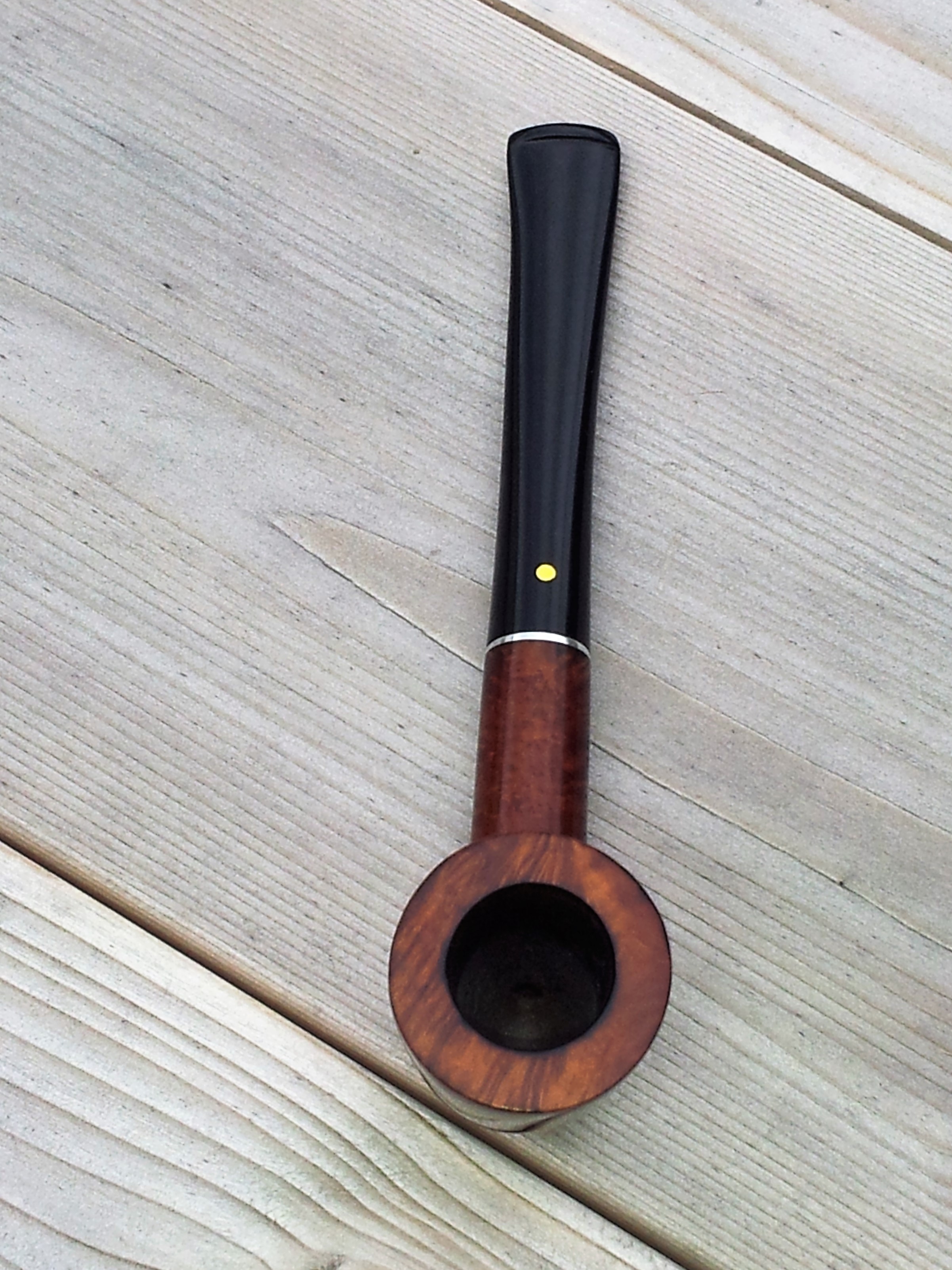

20150909_143317 20150909_143329 20150909_143349 20150909_143358

Advertisements

13 comments

  1. Nice clean up on the Williard . I’ve refurbed enough Yello Boles that i can tell by look and feel which will melt and the stems that wont anymore. They can be a challenge but not bad once you get the hang of them.
    You know how you can tell a military Willard from a non one? All military Willard”s are banded.If its banded then it was sold in a PX. I’ve always thought that was odd though you figure a military pipe you would not want a shiny band on it.

    Like

  2. That Willard cleaned up nicely. Fine work all around. She has a very nice shine. Consider yourself lucky on the alcohol reacting with the stem incident. I had an HLT Willard pipe with the crest on top of the stem. I dropped it into an alcohol bath and went to work on the stummel. About 20 minutes later I took the stem to the sink and ran a pipe cleaner through. That’s when I noticed how slickery the stem felt. I let it dry out over night and it hardened back up with some mild distortion that I filed/sanded away. One thing for sure. That alcohol bath got rid of the tooth chatter. I now dampen my finger with alcohol and hold on the stem for a few seconds and see how it reacts first. Anthony C provided me with that trick.

    Like

  3. That one came out really well. Dave Whitney’s book “Old Briar” says the dot on top of the stem are older than the ones on the side, though I can’t recall date ranges.

    Lucky on that stem! I once dropped a Yello Bole cigarette holder I was going to convert into a tamper/poker into an alcohol bath to come back to find a melted glob of glue; it wasn’t briar though it looked like varnished briar: lesson learned that day!

    Like

  4. Never knew about these types of nylon stems, but now I do and will be extra careful. Still learning from you all on a daily basis. Love the sheen you managed to get on that briar. Great job.

    Like

  5. I learned this lesson by completely destroying an old Thermofilter stem when I first started doing refurbs. It’s pretty horrifying when you realize what’s happening. Now, I use a solution similar to your own when cleaning these problematic stems. I put white vinegar, a little water, and some citrus peels in jar for about two weeks to make a homemade citrus cleaner. It works great around the kitchen too!

    Those Willard stems aren’t really nylon though. They’re a type of plastic with a small bit of nylon infusion. Pure nylon, like the old Medicos, won’t react to alcohol. If you find a bent Willard, you’re completely safe. The stem on those is vulcanite. As I understand it, that low-grade plastic used on the Willard stems wouldn’t bend without collapsing the airway.

    Like
