Shank Rescue on a 1990’s Era Brigham 424 Bent Billiard

I have worked on a lot of Brigham pipes over the last year, and posted most of them here on the DadsPipes blog. I’m trying to maintain some sort of balance to my regular posts as to avoid becoming “the Brigham blog”, but I do love them and tend to buy them for myself whenever I come across one at an estate sale or antique market. The 424 Bent Billiard under discussion today, however, is not one of mine; rather, it was sent to me for refurbishment as part of a small estate lot purchased by a DadsPipes reader.

This classic Bent Billiard had clearly led an eventful life prior to arriving on my worktable. The chamber was heavily caked, to the point of choking off the airway, and a crust of lava covered the rim. The stem was oxidized, with thicker calcium deposits at the bit end.

20170607_093953 20170607_093958
20170607_094005 20170607_094016
20170607_094021

It looked like the original piper had slipped a rubber Softie bit over the end of the stem sometime after the tooth dents became evident. Nice of him to have considered extending the life of the bit, but perhaps he could also have thought to pass a pipe cleaner through the stem once in a while – the stem slot, and likely the rest of the airway, was clogged with tars and debris.

20170607_094034
20170607_094038 20170607_095530

The pipe is stamped “424” followed by “Brigham” over “Canada”. The marks date this particular pipe to the late 1980’s or early 1990’s. The stem is original, with the aluminum filter holder/tenon and 4 brass pins, or Dots, inlaid in the left flank.

20170607_094045

I started cleaning up the pipe by reaming the thick cake out of the bowl. I’ve found my Castleford reamer quite adept at taking most Brigham bowls back to briar – the U-shaped bore matches well with the reamer heads, leaving very little to touch up with sandpaper afterwards.

20170607_095707
20170607_100715 20170607_100725

I scraped away the worst of the rim lava with my pen knife, taking care to keep the blade square to the rim top to avoid gouging the briar.

20170607_101427

As I suspected, the stummel’s mortise and airway were in a bit of a state. This preliminary picture shows the ring of build-up inside the shank. Also notice the area I’ve circled at the 7 o’clock position on the shank end. There was something off about that bit of shank that would move this refurbishment to another level very soon.

Inked20170607_101610_LI

Taking a closer look at the shank, I found an old putty fill on the left side. I went at it with a dental pick and quickly realized I’d found a major issue. The putty just kept coming out of the briar, and the damaged area got larger and larger.

By the time I was satisfied that all the putty was out, the pit covered a significant portion of the left side of the shank. I’m sure the original fissure was much smaller and tighter, but over the years the briar had expanded and twisted slightly, opening the crack straight through to the mortise.

The last pic shows just how far the briar had moved – from the side you can see that the mortise face no longer lined up across the crack.

20170608_084943 20170608_085002
20170608_085014 20170608_085120
20170608_085633

I passed on the news to the pipe’s owner and recommended filling the damage area with CA glue and briar dust before fitting a shank band for a permanent repair. The band would partially obscure the pipe’s stamps, but there wasn’t much avoiding that at this point.

Before I could repair the shank, I needed to clean it. I scraped a LOT of tars and muck from the mortise with the flat end of a square needle file. When the worst of the gunk was gone, I used pipe cleaners, cotton swabs and alcohol to finish the job.

20170608_090528

With the internals clean, I gave the exterior of the stummel a good scrub with Murphy’s Oil Soap to lift the dirt and grease from the briar.

20170608_093453

Then it was time to mix up a batch of CA and briar dust and start layering fill material into the damaged area. It took more than a few applications to completely fill the pit, leaving the fill slightly proud of the surrounding briar to facilitate sanding later. I took these pics and then set the stummel aside to let the CA glue cure fully.

20170608_143208
20170608_143217

While the stummel sat, I ran a pipe cleaner through the stem to make sure the airway was open and then dropped it into an Oxyclean bath for a long soak. This series of pictures shows the stem before and after the soak, and again after the initial scrub-down with 0000 steel wool and Magic Eraser. Quite a difference!

20170607_103052
20170608_081739 20170608_082109

I finished cleaning the stem with pipe cleaners and cotton swabs dipped in alcohol. The Oxy bath had dissolved quite a bit of the muck in there already, making this part of the job much easier.

20170608_083307

Moving back to the stummel, I filed and sanded the contours of the CA & briar patch flush with the surrounding area. I selected a shank band from my supplies and worked on the shank until I could slip the band most of the way into place. Heating the band over my heat gun, I pushed it the rest of the way onto the shank, completely covering the patched area. The band shrunk as it cooled, making a nice tight pressure fit. I left the rear edge of the band slightly proud of the shank face to facilitate a seamless fit with the stem.

20170608_145124
20170608_145140

Relieved to have the pipe structurally sound again, I spruced up the briar finish with a fresh two-part stain of Fiebing’s Saddle Tan leather dye under a top coat of Black. A quick wipe of the smooth side patches and rim with a damp cotton pad pulled off most of the black stain to create the contrast finish I was after. A last wipe with mineral oil rehydrated the briar and gave the finish some much needed pop.

20170610_102121
20170610_103313 20170610_103327
20170610_104239

The next task was to sort out the tooth dents in the stem. The dents on the top side were shallow, only needing a bit of filing and sanding to smooth out. The bottom of the bit was a different matter, with two deep dents that would not raise with heat.

I mixed a bit of CA glue and activated charcoal powder and dropped the patch material into the dents. When the glue had fully cured, I filed and sanded the fills smooth. A full course of micromesh sanding pads removed the sanding scratches and brought the vulcanite to a mirror shine.

20170610_112640
20170610_112911 20170611_203001
20170611_203113 20170611_205451

Last, but certainly not least from the client’s point of view, I set up the stummel with a salt and alcohol treatment to pull the last stubborn tars and their associated odours from the pipe’s internals. The pics below show just how much deeply-ingrained tars were left behind inside the “clean” pipe.

20170610_113420 20170611_202701

Then it was time to take the pipe to the buffer for a run of White Diamond and several coats of Carnauba wax. The wheel brought up the shine on the smooth areas of the stummel nicely, increasing the contrast with the dark rustication.

The finished pipe has come a long way since it hit the worktable a few days ago. Gone is the grubby old pipe, replaced by polished briar and deep black vulcanite. This Brigham 4 Dot Bent Billiard is ready to take its place in its new owner’s regular rotation, where it will doubtless serve well for decades to come.

Thanks for following along on this rather extensive refurbishment. It took some time, but I think the results speak for themselves.

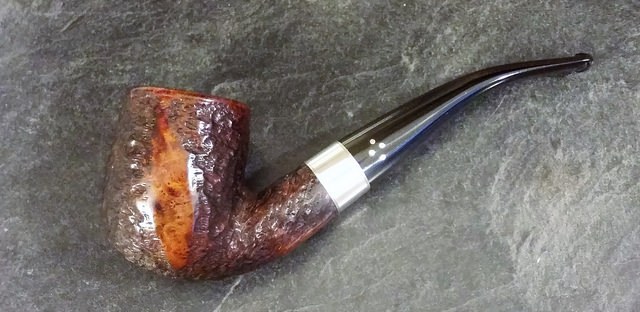

Here’s the finished pipe. Until next time, Happy Piping!

20170611_210920 20170611_210933
20170611_210941 20170611_211023
20170611_211045 20170611_211105
20170611_211140 20170611_211152
20170611_211206 20170611_211222
