Restoring an Underwhelming Habitant Deluxe Chubby Bulldog

Some pipe shapes jump out at you from across the room, grabbing your attention in the equal but opposite way other shapes make you wonder what the carver could possibly have been thinking. I was immediately drawn to this pipe when I spotted it on a recent estate pipe hunting expedition. The chubby bulldog reminded me of a kind of cross between a Savinelli 320KS recently featured on rebornpipes.com and the classic Peterson 999 shape, though this pipe was not nearly as well-executed. In fact, it rather struck me as a practice piece after I had stared at it a while. The bowl was drilled slightly off-centre, and the distinctive bulldog bowl rings were anything but on this pipe – the upper ring was almost entirely absent, and the lower was unevenly cut.

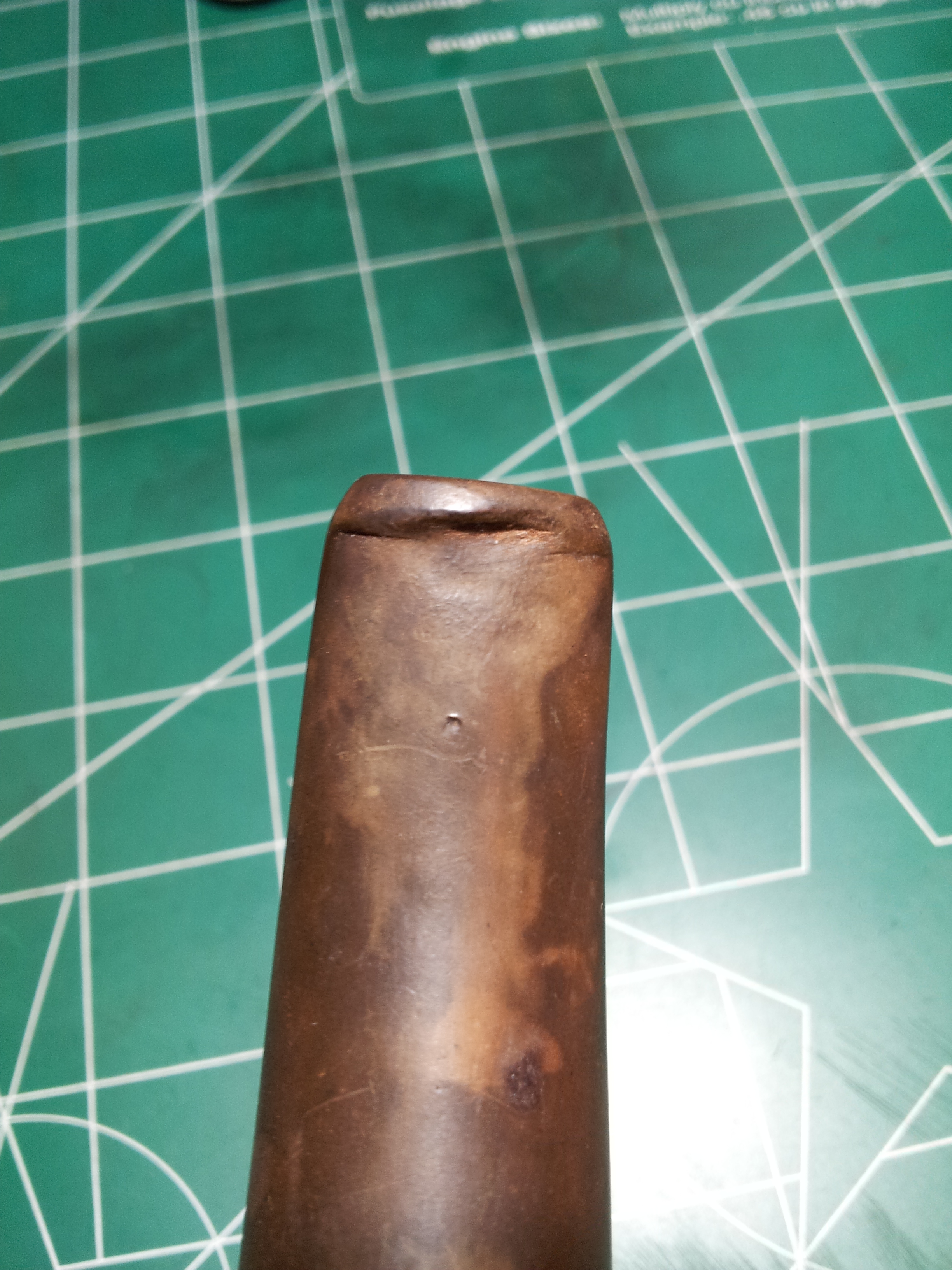

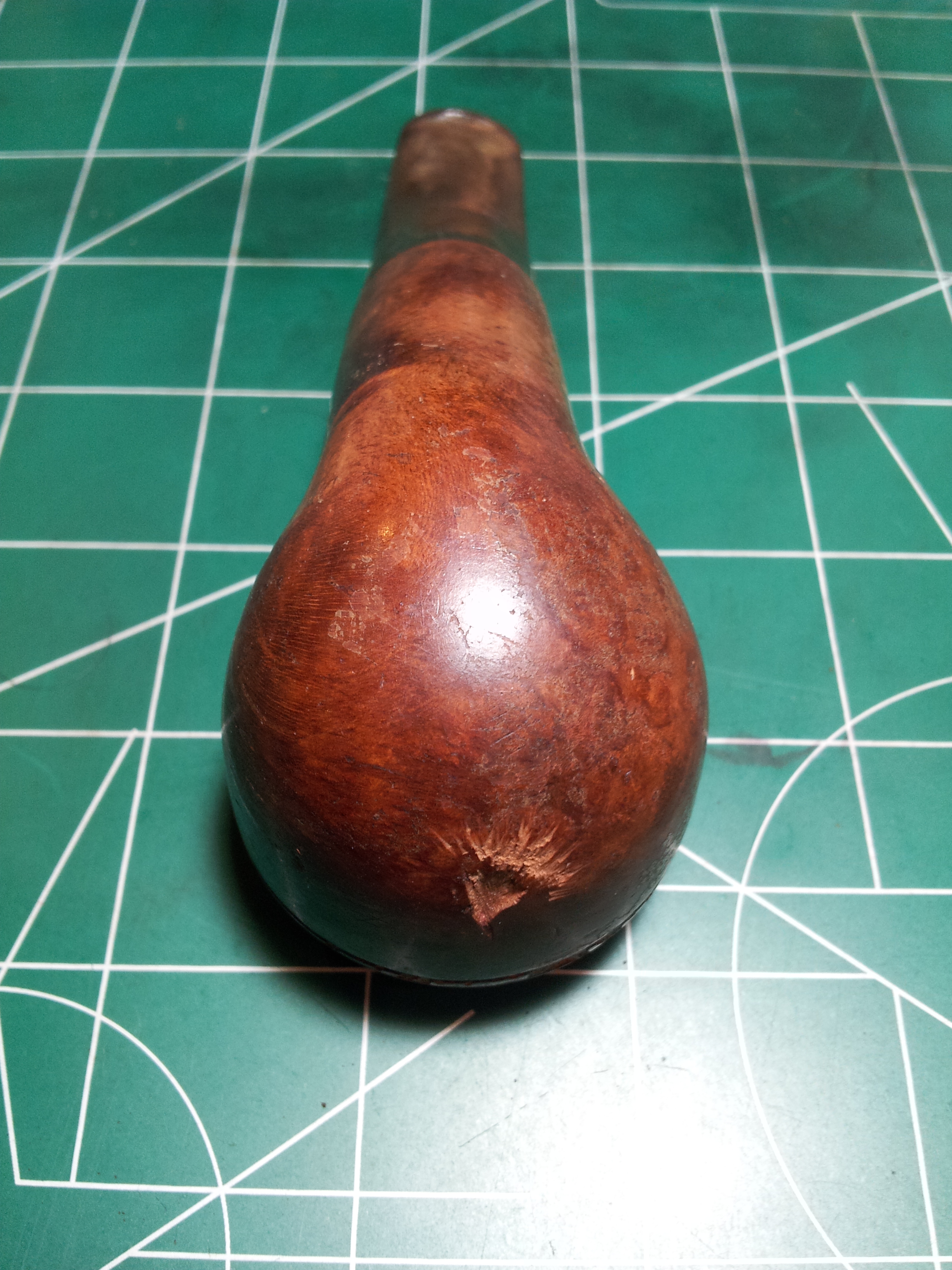

The pipe had the usual gammut of estate pipe woes – tarry rim, dents, dings, scratches and loose fills. The rim was chipped nearly everywhere, and the front of the bowl sported a missing chunk. The stem was oxidized and had a heavy tooth bite right behind the button on the lower side. It was also very loose in the mortise, nearly to the point of falling out.

The pipe is stamped “Habitant Deluxe” on the left shank, and “Italy” on the bottom of the shank, parallel to the mortise. I couldn’t find any information on the brand online. My guess is that this must have been a seconds brand for some Italian pipe manufacturer.

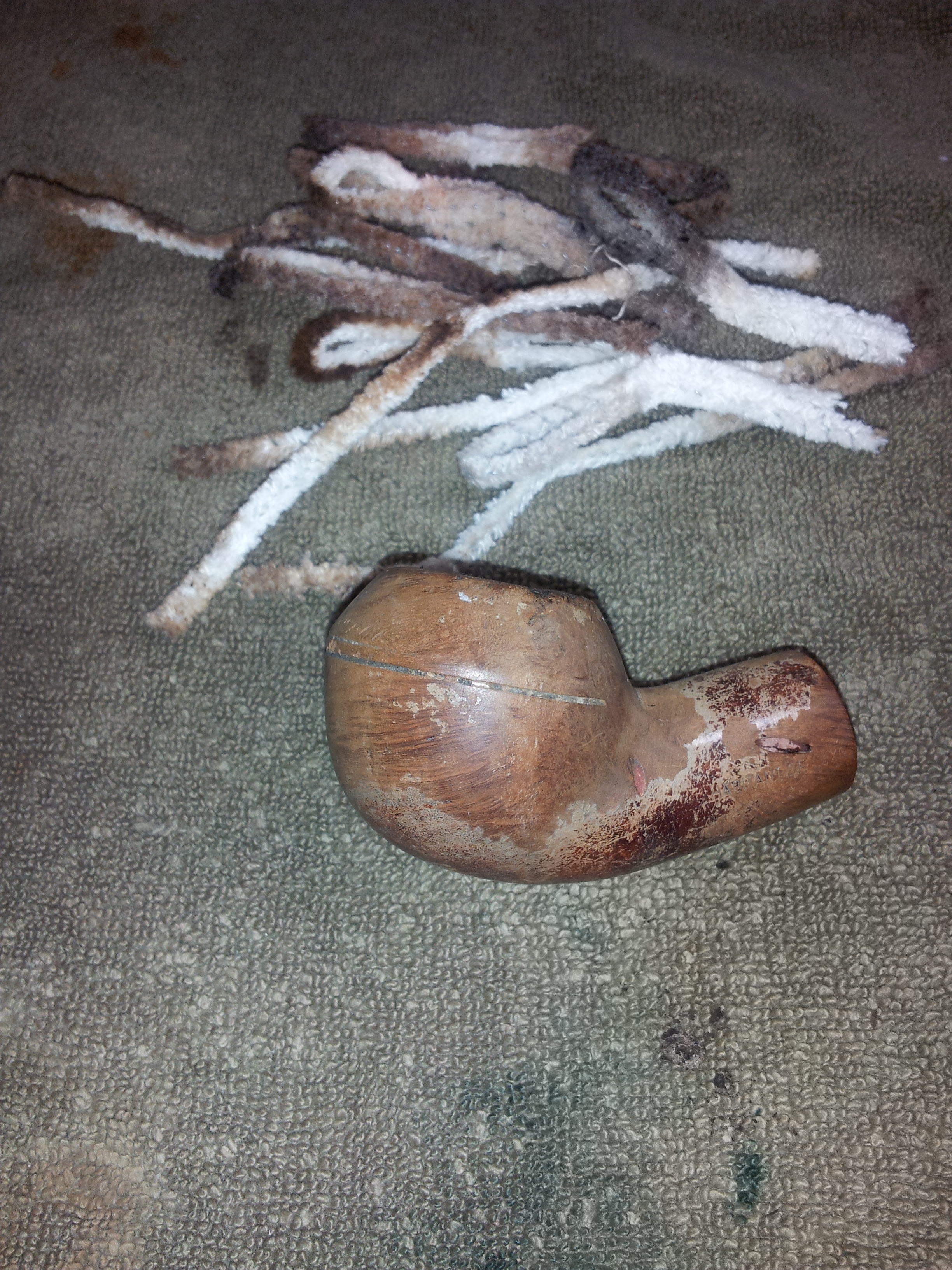

20151004_094849 20151004_094857 20151004_094909 20151004_094922 20151004_094937 20151004_094947I started out by reaming the bowl back to bare briar. The tobacco chamber was in good shape. No cracks or burnouts, and the draft hole met the chamber floor very neatly. Satisfied with the structure of the stummel, I dropped it into an alcohol bath to dissolve the lacquer coating and soften the accumulated tars. When I removed it from the bath the next morning, I used pipe cleaners and more alcohol to clean the bowl and airway before removing the last vestiges of lacquer with some nail polish remover and cotton pads.

20151004_095350 20151004_182642 20151004_183854

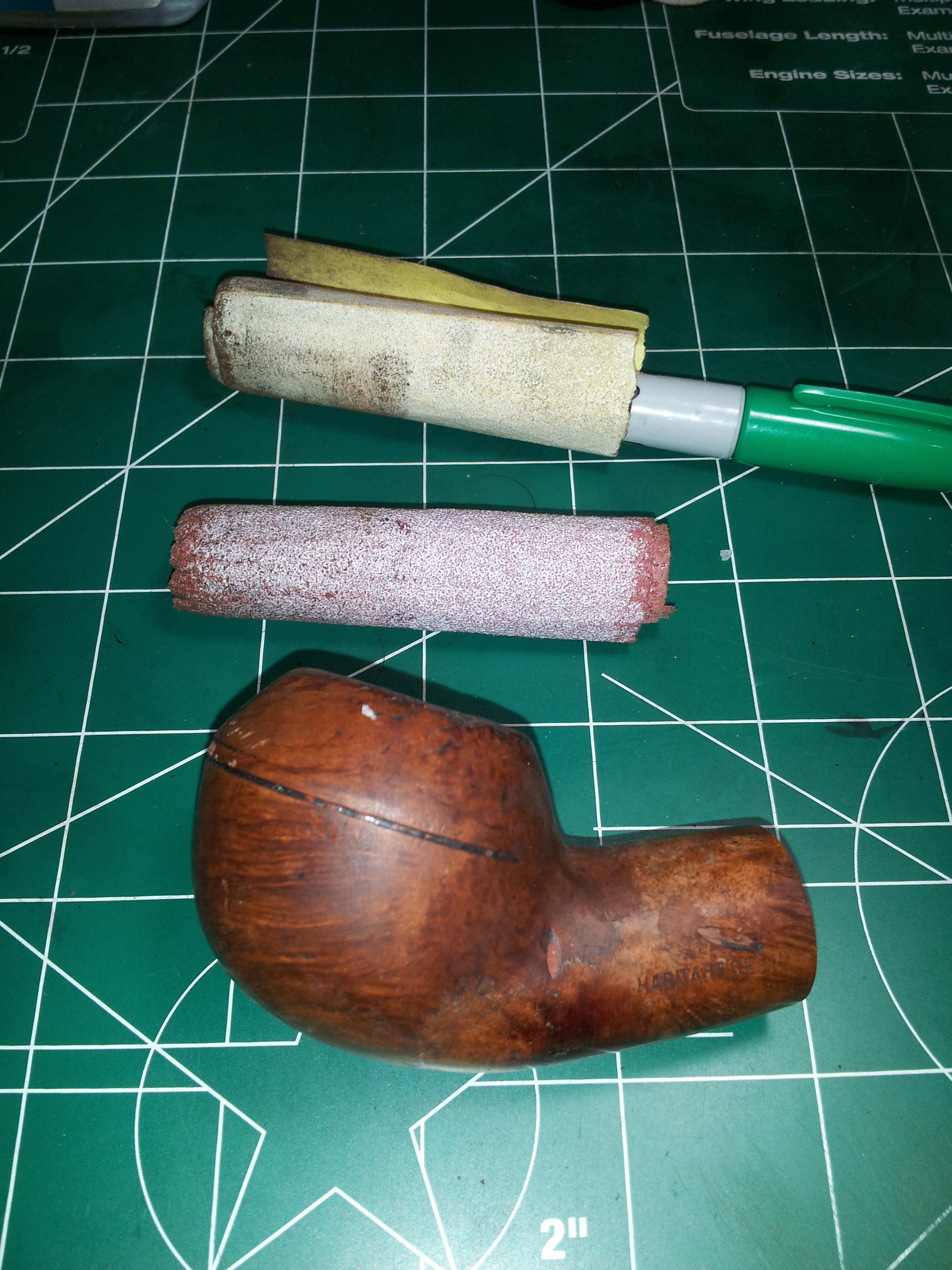

I topped the bowl to remove most of the dents and dings, and then turned my attention to the bowl rings. I dug into my guitar repair kit for my set of nut files, and used a 0.028” thick file to both clean out and deepen the lower bowl ring. Then I used the same file to carefully re-cut the upper ring, extending it the full circumference of the bowl. It took a fair amount of time and patience, but it made a world of difference to the bulldog-ish appearance of the pipe overall.

20151004_185947 20151004_191142

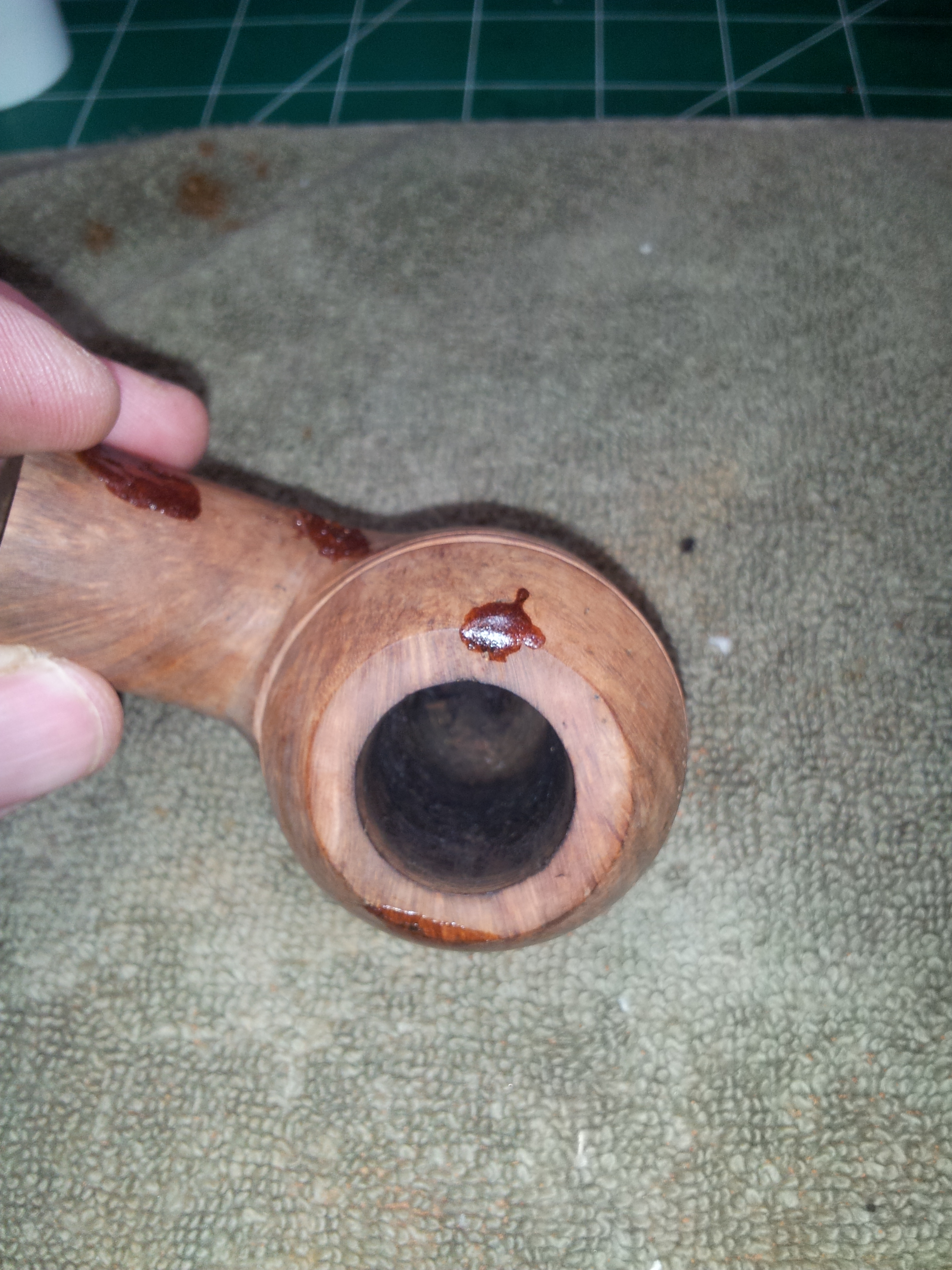

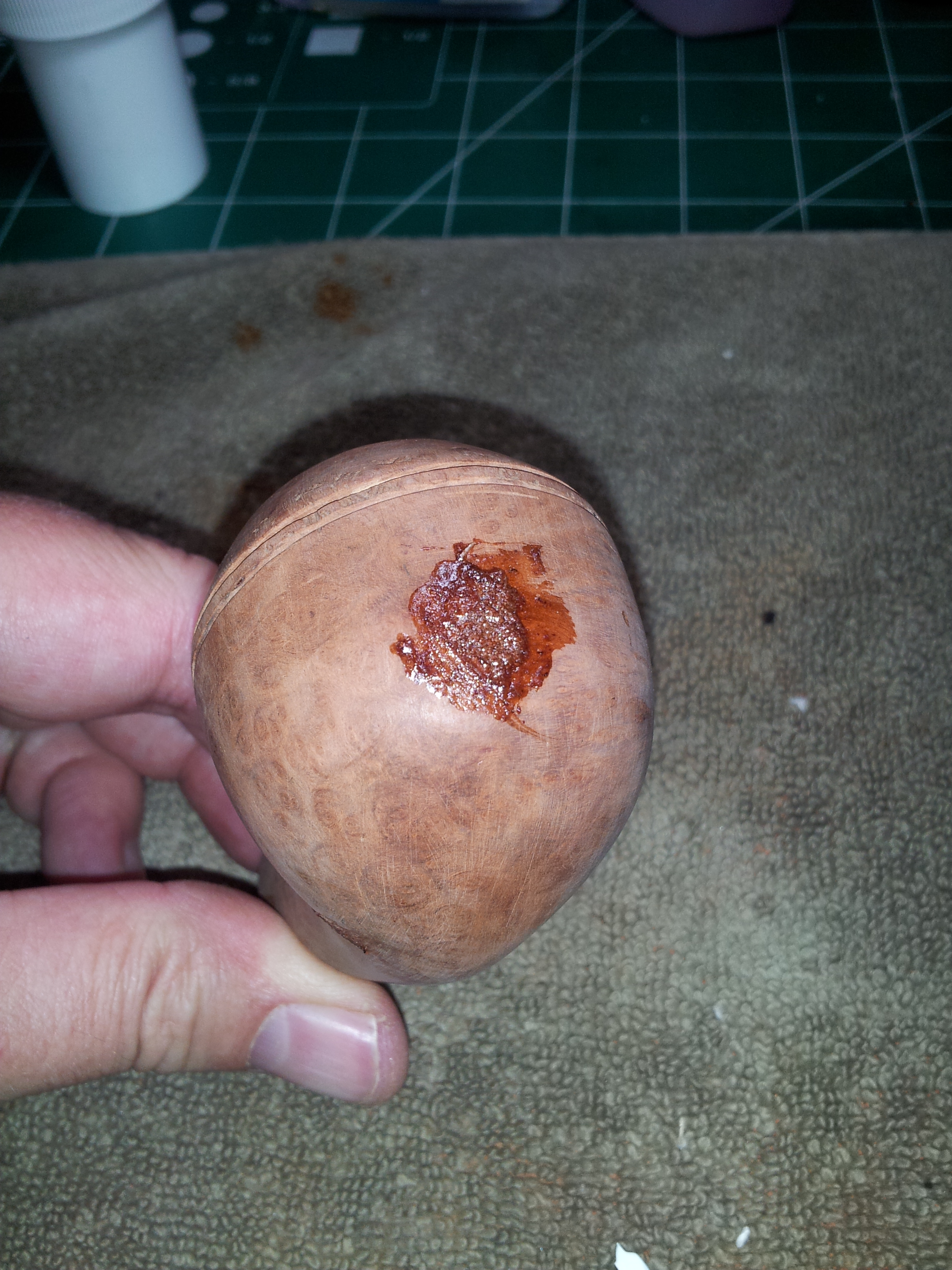

I picked out several loose putty fills using a dental pick and noted a few deeper dents on the bowl that would also need filling. All these areas were hit with CA glue and briar dust before sanding with 220 and 320 grit papers.

20151004_191129 20151004_212205 20151004_212211 20151004_212220

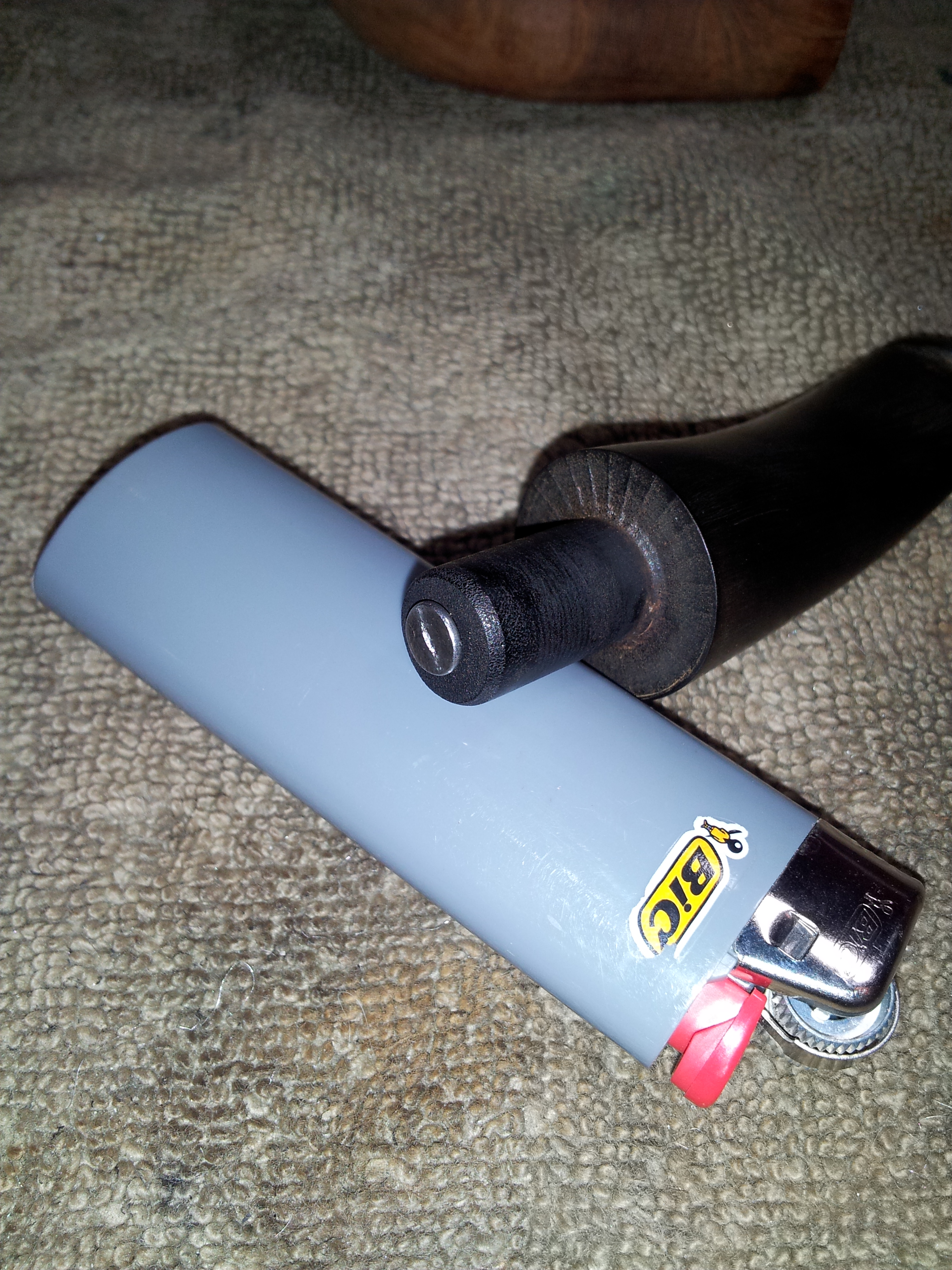

Meanwhile, I soaked the stem in Oxyclean and warm water to lift the oxidation, which was scrubbed off using Magic Eraser and then 600 – 2000 grit wet sandpapers. I cleaned the stem’s internals with pipe cleaners and alcohol before adjusting the fit of the tenon in the mortise. This was accomplished by heating the rather fat tenon over a lighter until maleable and then pushing it against a flat surface. I slid a suitably sized nail into the tenon’s airway before doing this to help keep the tenon straight and the airway open. It didn’t take much effort to expand the tenon sufficiently to give a comfortably snug fit.

20151010_175946

The tooth dents near the button were filled with CA glue and sanded smooth. I also built the button’s height up slightly with CA glue and charcoal powder to provide a better grip in the teeth. This pipe is really not suited to clenching – the stem is too fat to be comfortable – but I felt it would be good to at least be able to hold it briefly in the mouth anyway.

20151010_221144 20151015_204827 20151015_204848 20151015_204854

With the stem work done, it was time to refinish the pipe. I first applied a solid coat of Fiebing’s Black leather dye and let it dry before removing most of it with 0000 steel wool. Two coats of a 3:1 mix of Fiebing’s Dark Brown and Saddle Tan dyes followed. The resulting finish was dark enough to hide the fills while still allowing the wood grain to show through from beneath. The pipe was then lightly buffed with Red Tripoli and White Diamond compounds before receiving several coats of Carnauba wax.

I’m not sure what it was about this pipe, but for some reason I was plagued throughout this restoration by doubts and indecision. I seemed to debate constantly with myself over the best course of action at each stage in the process – so much so that this pipe took the better part of a month to finish. In fact, I completed restorations on two other pipes while this chubby dog was on the work table. Looking back now, I can’t quite pinpoint why I was so vexed by this job, but I can tell you that I’m glad it’s finished. I still really like the shape of this pipe, but I am a confirmed clencher, so this one will be available to a new piper to whom it is better suited,

Here’s the restored pipe.

20151020_114808 20151020_114818 20151020_114843 20151020_114933
