Internal Injuries – Repairing an Over-Reamed Bowl and Opening the Airway on a Yello-Bole Duo-Lined

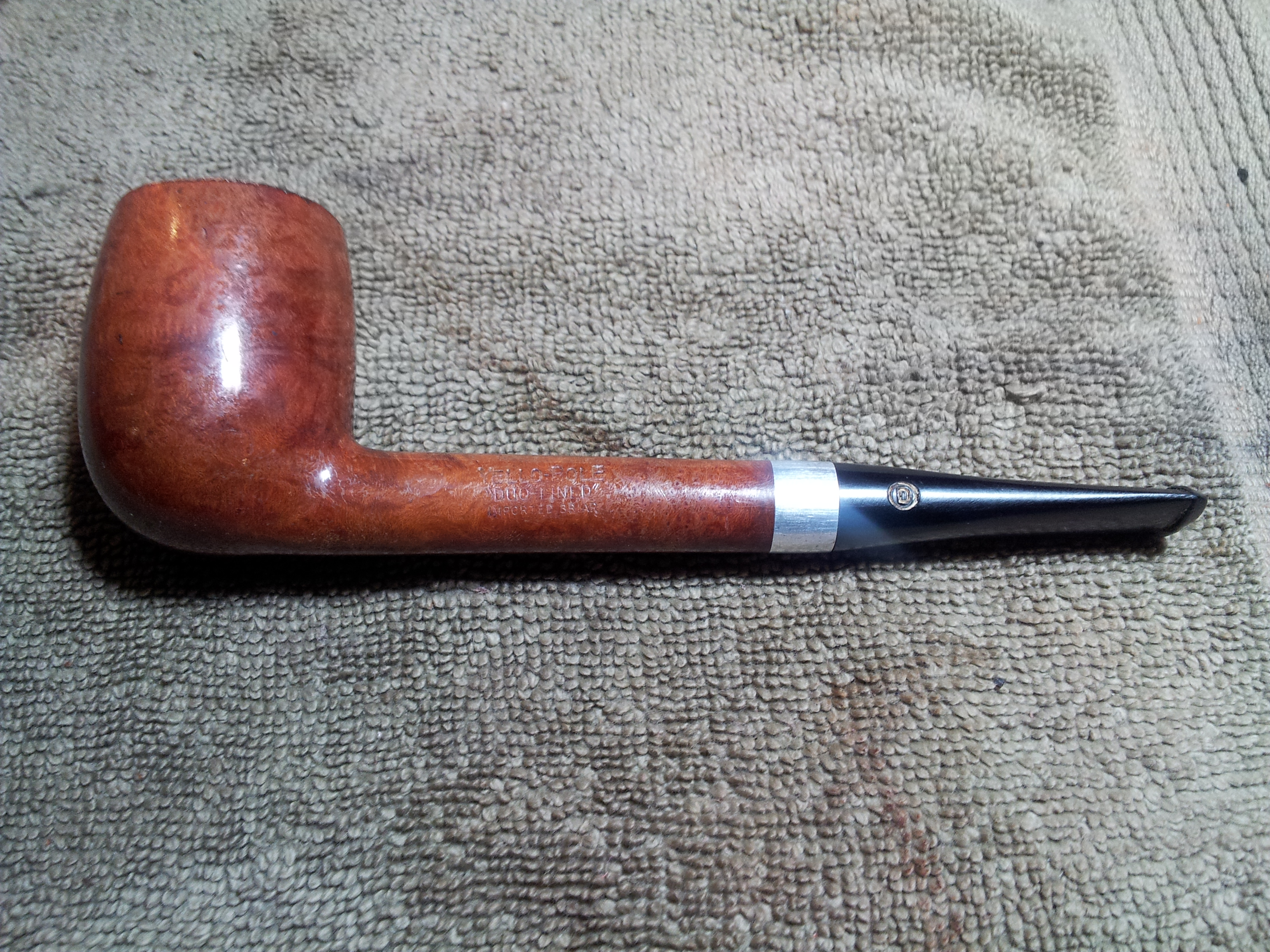

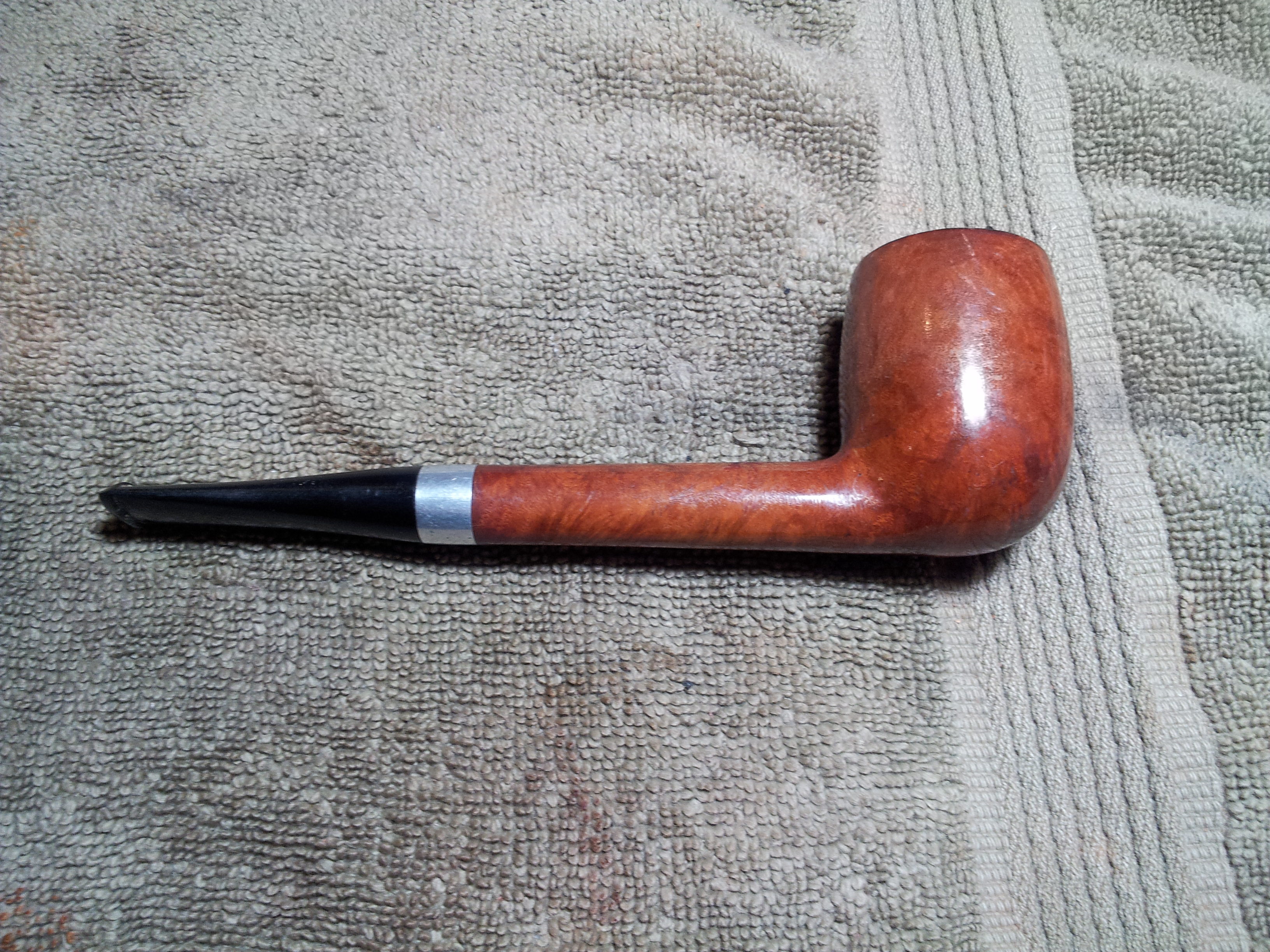

This is another pipe I picked up on a recent wander through my local antique mall – a Yello-Bole Duo-Lined in a classic Lumberman shape. It was in relatively good condition on the outside, with a bit of rim tar and a few flakes of original lacquer finish missing. The stem was original and still bore the D in a circle stamping that paired with the “Yello-Bole” over “Duo-Lined” over “Imported Briar” stamped into the left shank. The bowl had some fairly thick, though even, cake. It had obviously been a favourite of the previous owner, who had devoted a decent bit of care to the pipe’s maintenance.

20150922_095336 20150922_095345 20150922_095355 20150922_095413 20150922_095440 20150922_095445

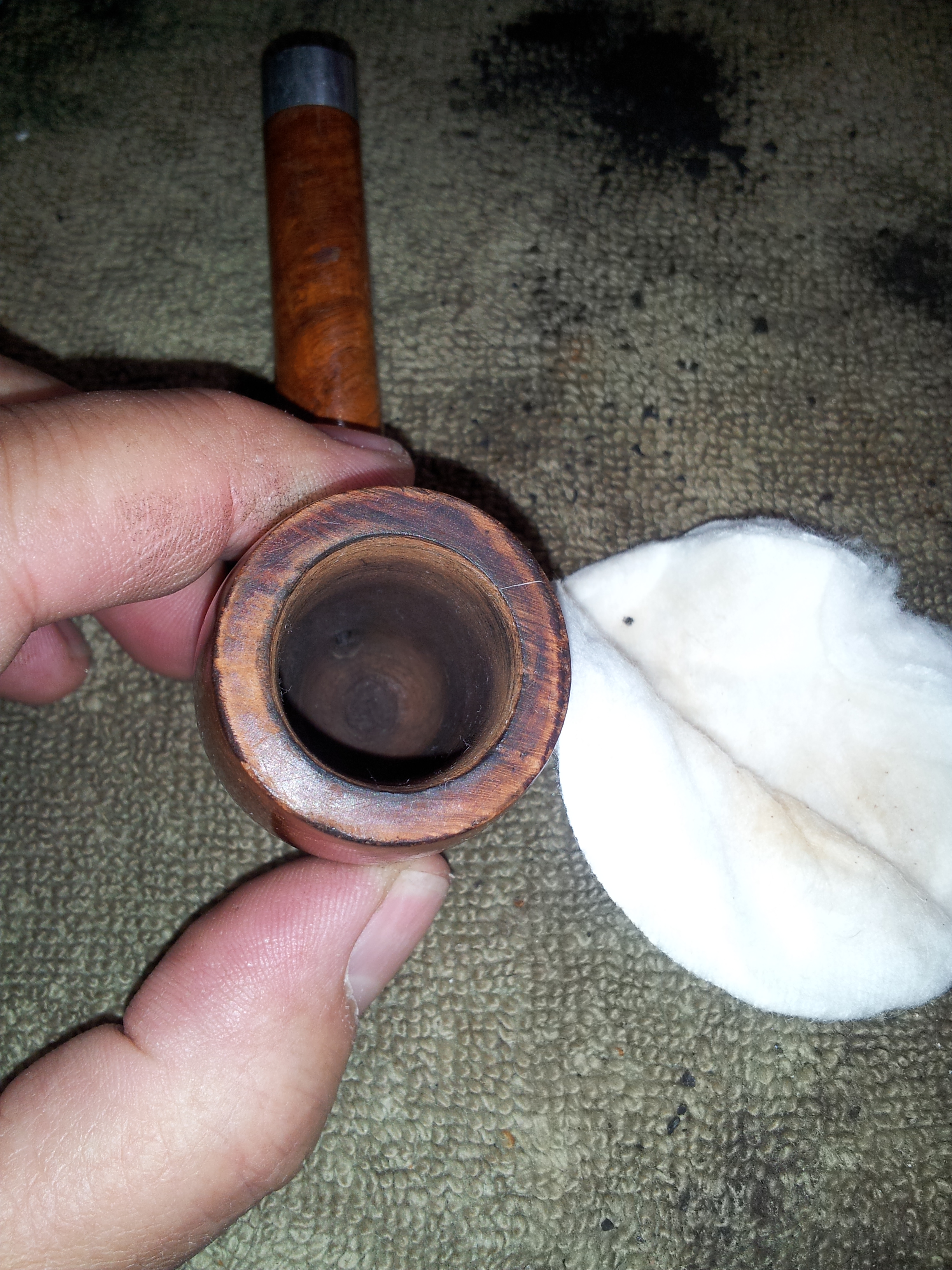

My first action on this refurb was to ream the bowl back to briar and clean the tars off the rim. This led to the discovery of a few decent dents in the rim that had been hiding under the tars, and, more seriously, a significantly over-reamed bowl. The bottom of the bowl was a full 1/4” below the draft hole – a burn-out waiting to happen!

20150922_130932

I dropped the stummel into the alcohol bath to dissolve the old lacquer finish and soften up any remaining tars and other gunk in the briar’s airway. While it soaked, I turned my attention to the stem, which turned out to be made of a cheap-feeling plastic. It was also completely plugged with bits of tobacco and old tars. Yay! So out came a succession of drill bits and a 1/8” round needle file, which I used to both clear the blockage and widen the stem’s airway, which, at a measley 3/32” diameter, was simply too constricted. I spent quite a bit of time on this, but eventually I had a smoothly tapered airway running from 3/32” at the bit to 5/32” at the tenon. Air flow was significantly improved and the stem no longer emitted a high-pitched whistle when I blew through it. A few final runs with pipe cleaners and alcohol finished things up nicely.

20150922_133407

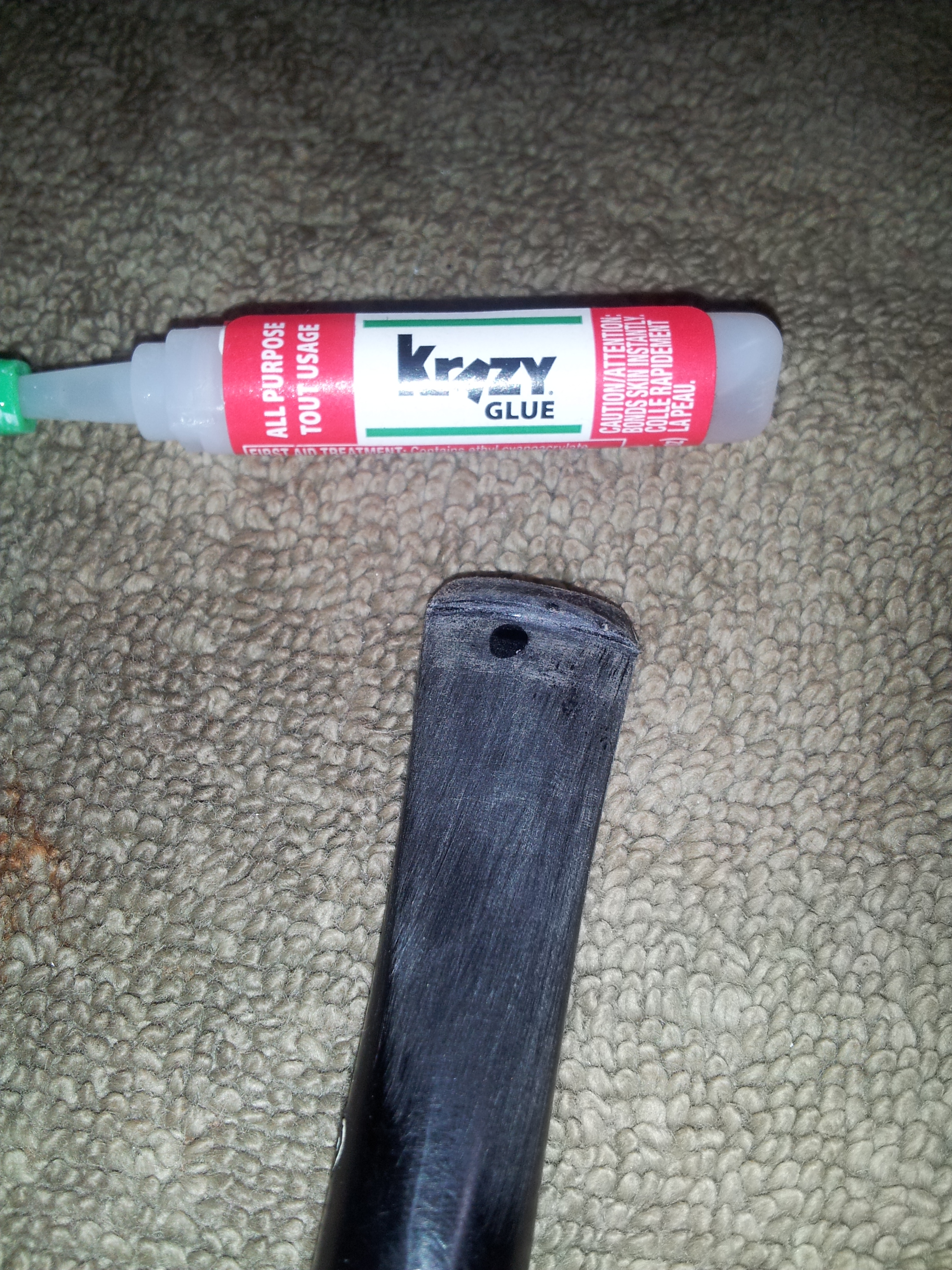

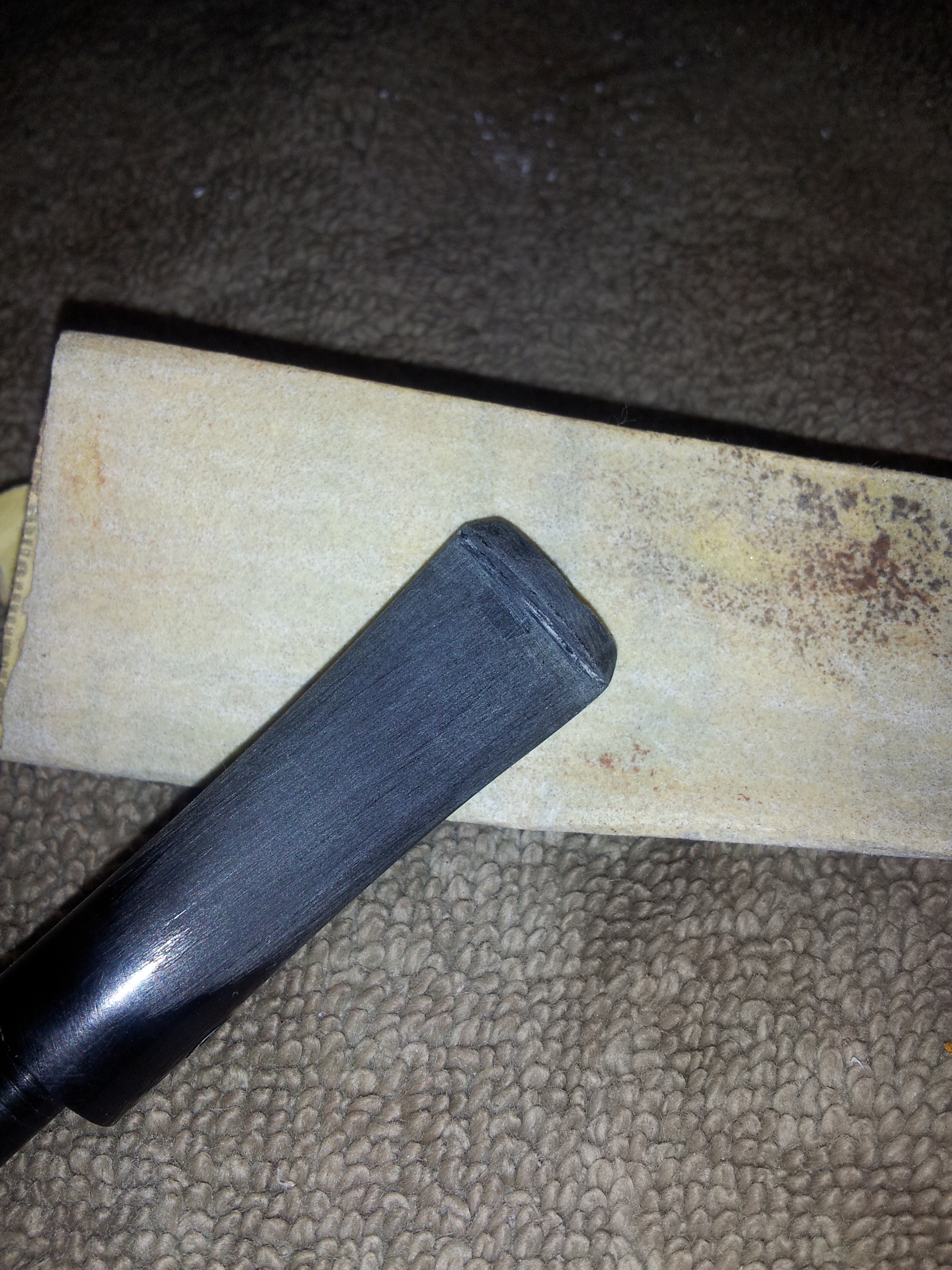

I dropped a bit of clear CA glue into the one larger tooth dent in the stem, then used 220 and 320-grit paper to remove tooth chatter and to tidy up the button.

20150922_154033 20150922_155323 20150922_155329

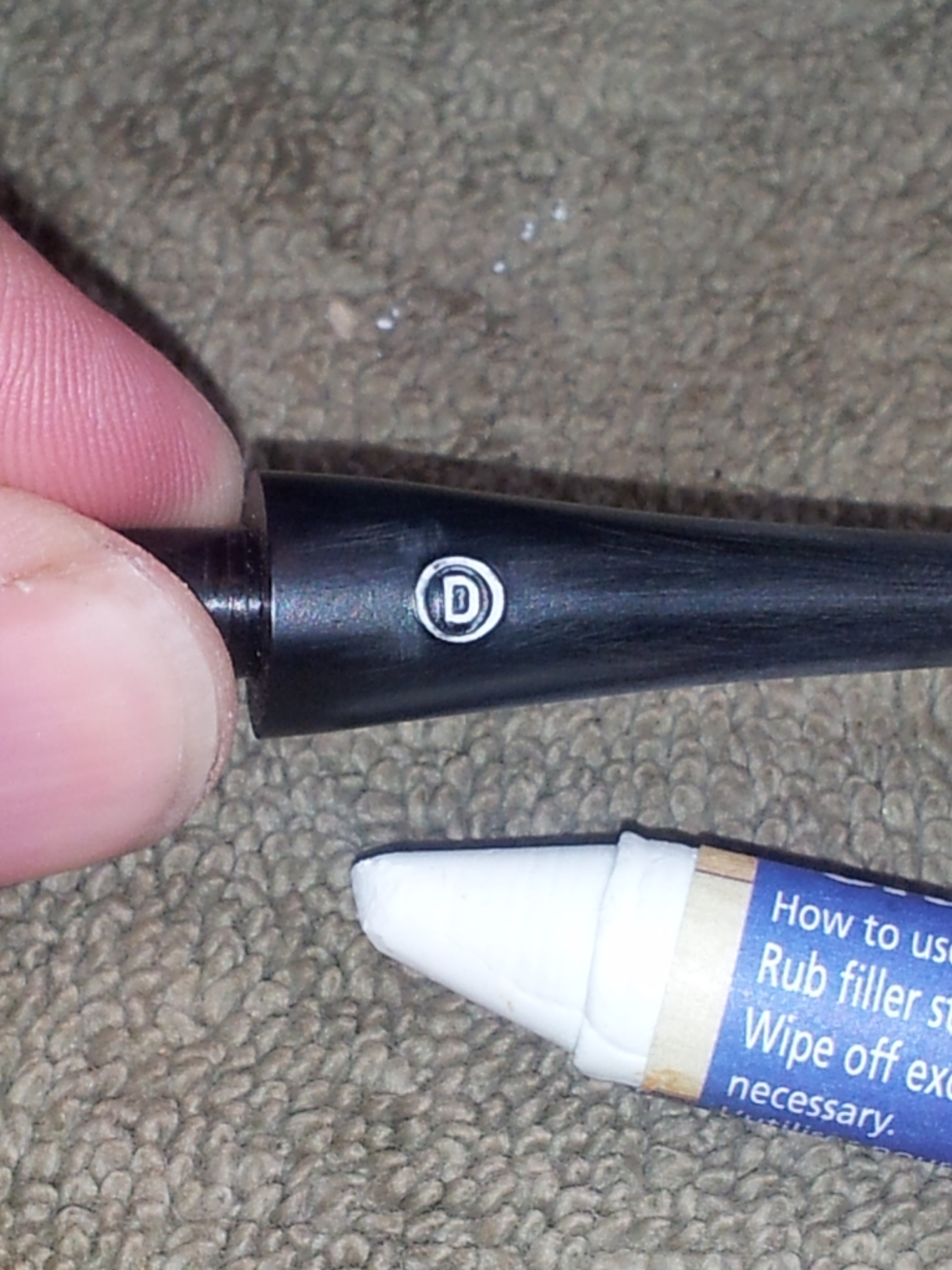

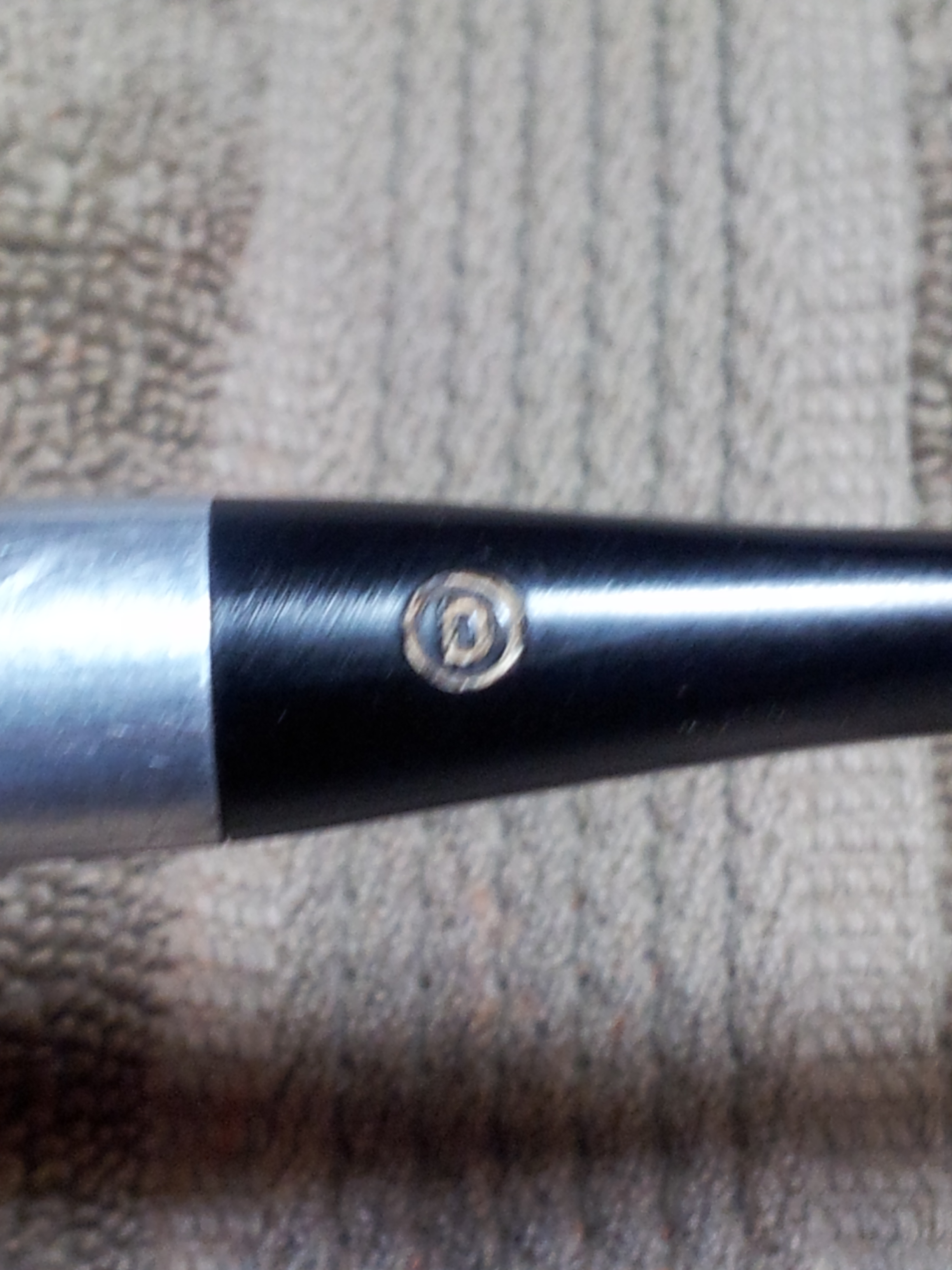

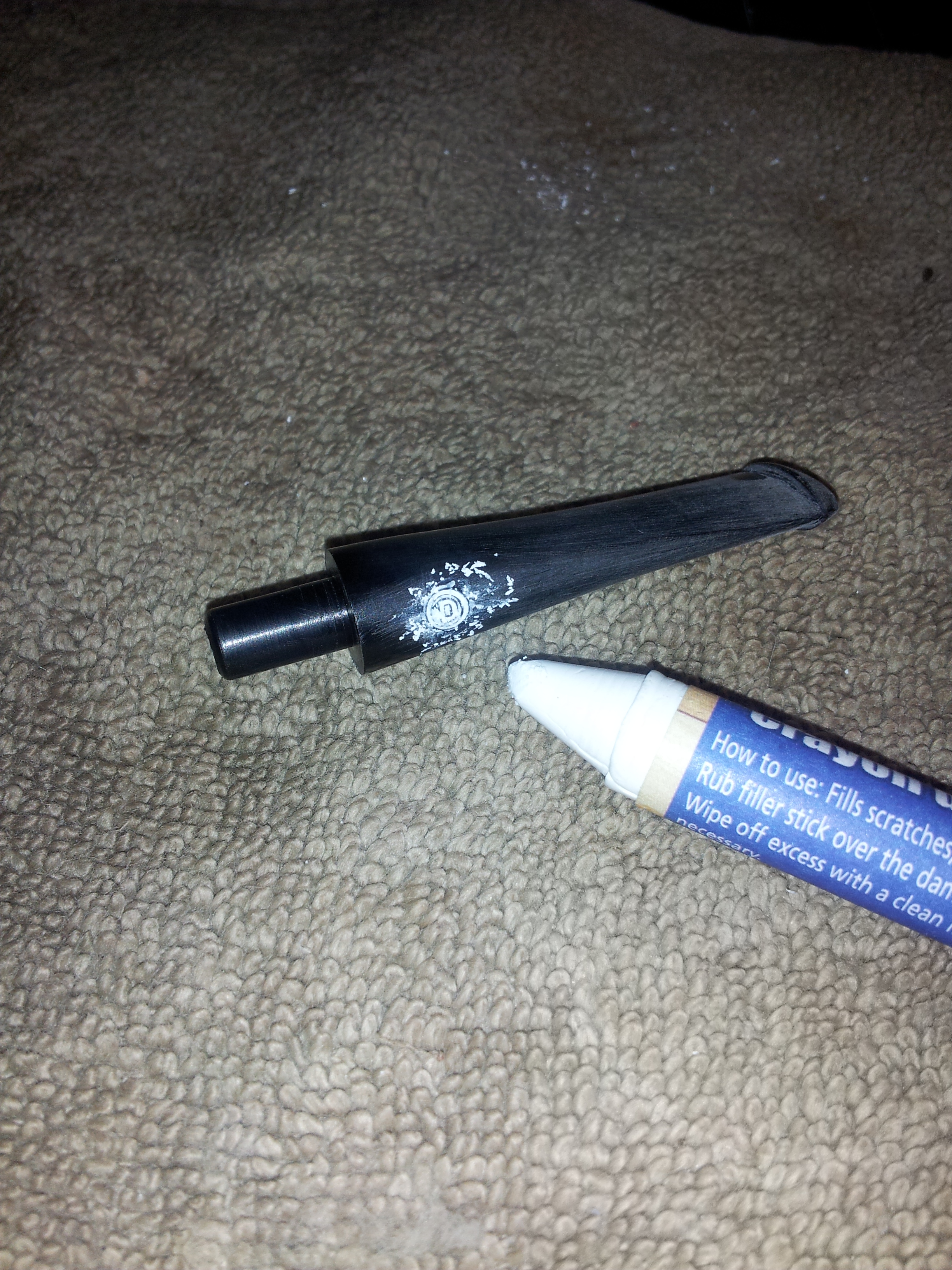

I also gently sanded the stem stamping to remove tiny bits of excess plastic hanging onto the edges, then renewed the stamp with a quick rub of a white wax filler stick.

20150922_155937 20150922_160506

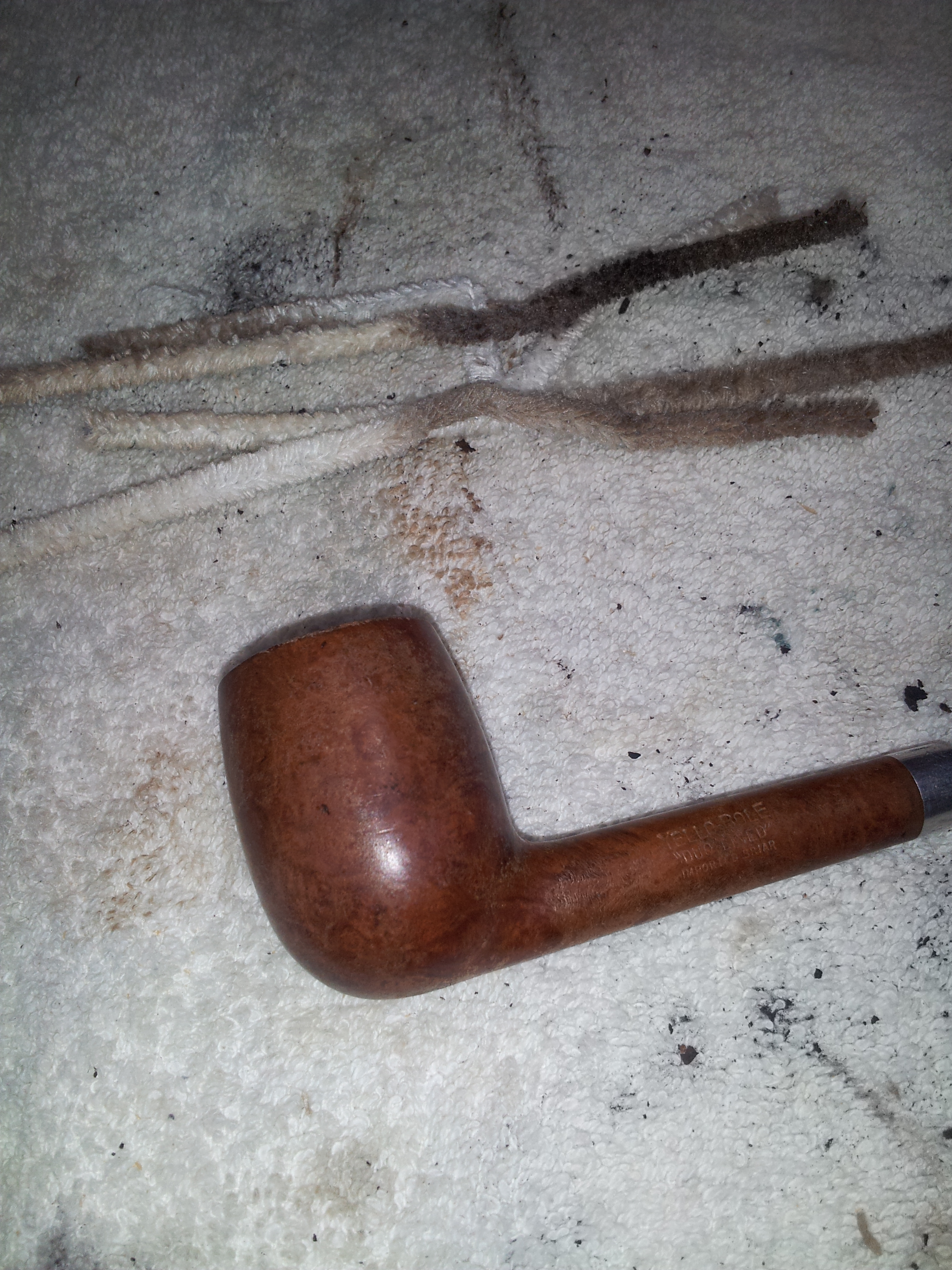

The following morning, I pulled the stummel from the alcohol bath and gave it a quick rub-down with an old terry towel to remove surface dirt. Knowing the original condition of the stem, it was hardly surprising to find the airway through the stummel was also blocked up solid. Out again with the drill bits! Turning the bits by hand, I carefully reamed the shank with 3/32” through 5/32” drill bits. A few alcohol-dipped pipe cleaners finished up the shank cleaning.

20150923_085453

20150923_08522620150923_085920

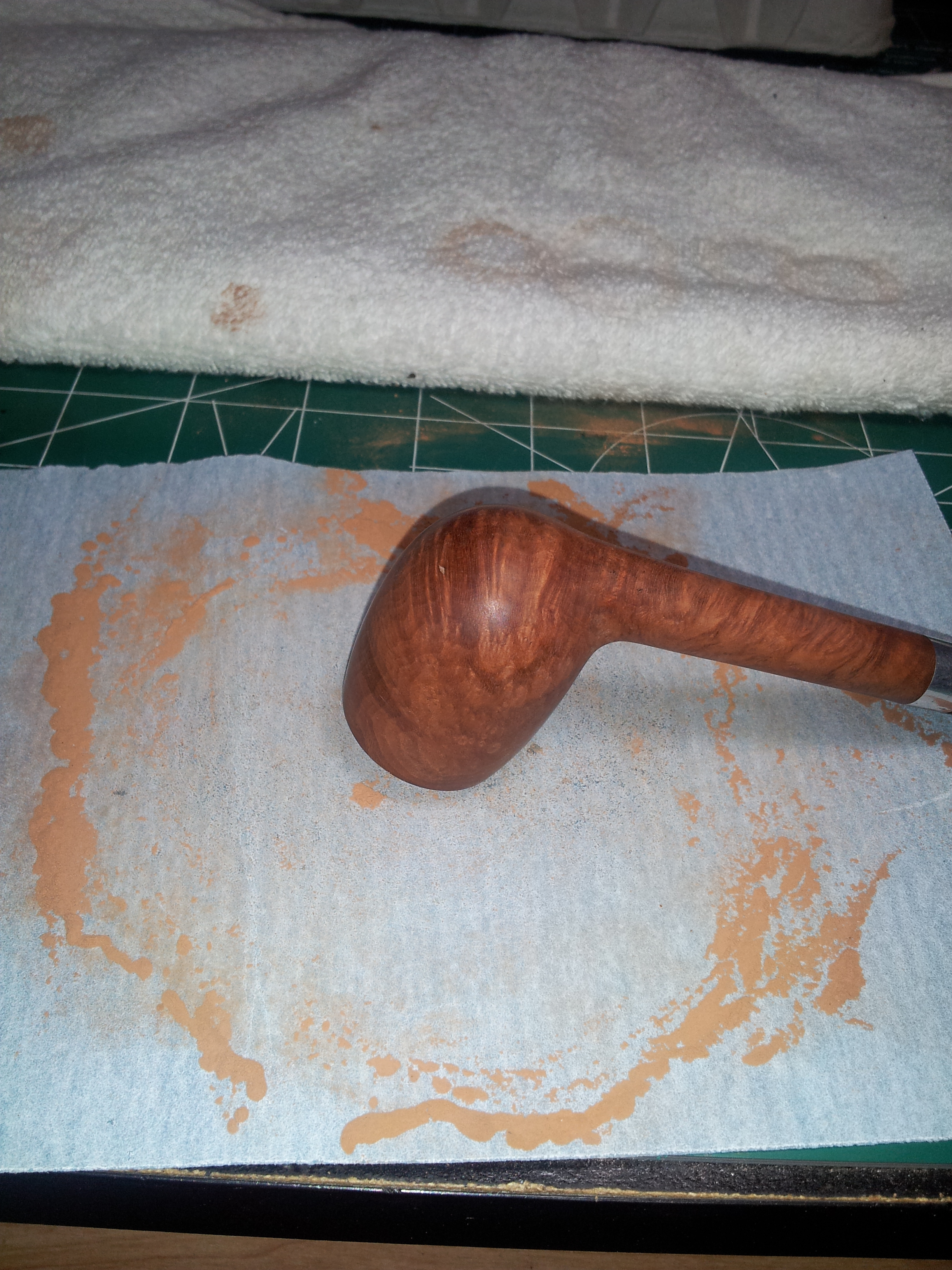

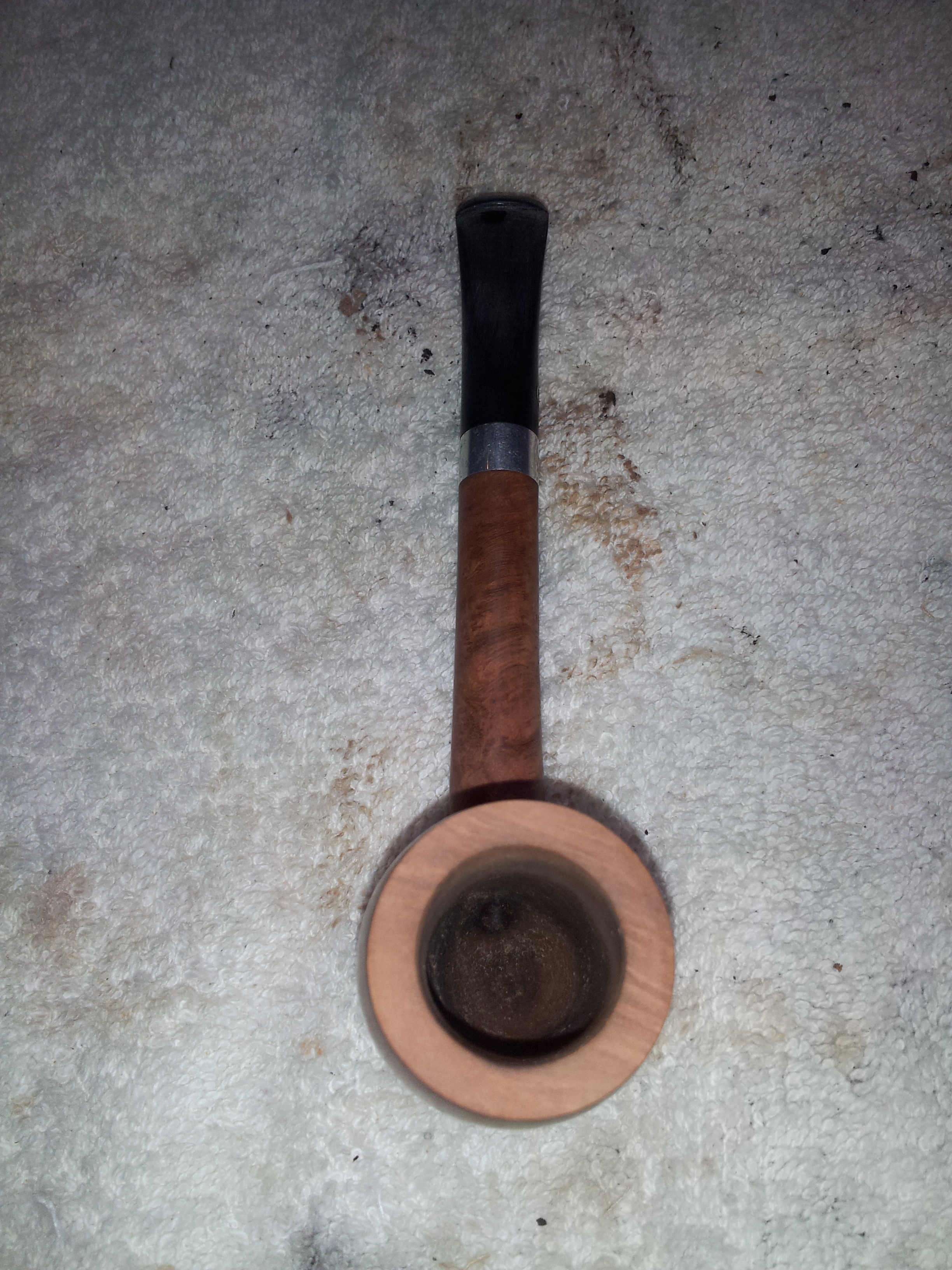

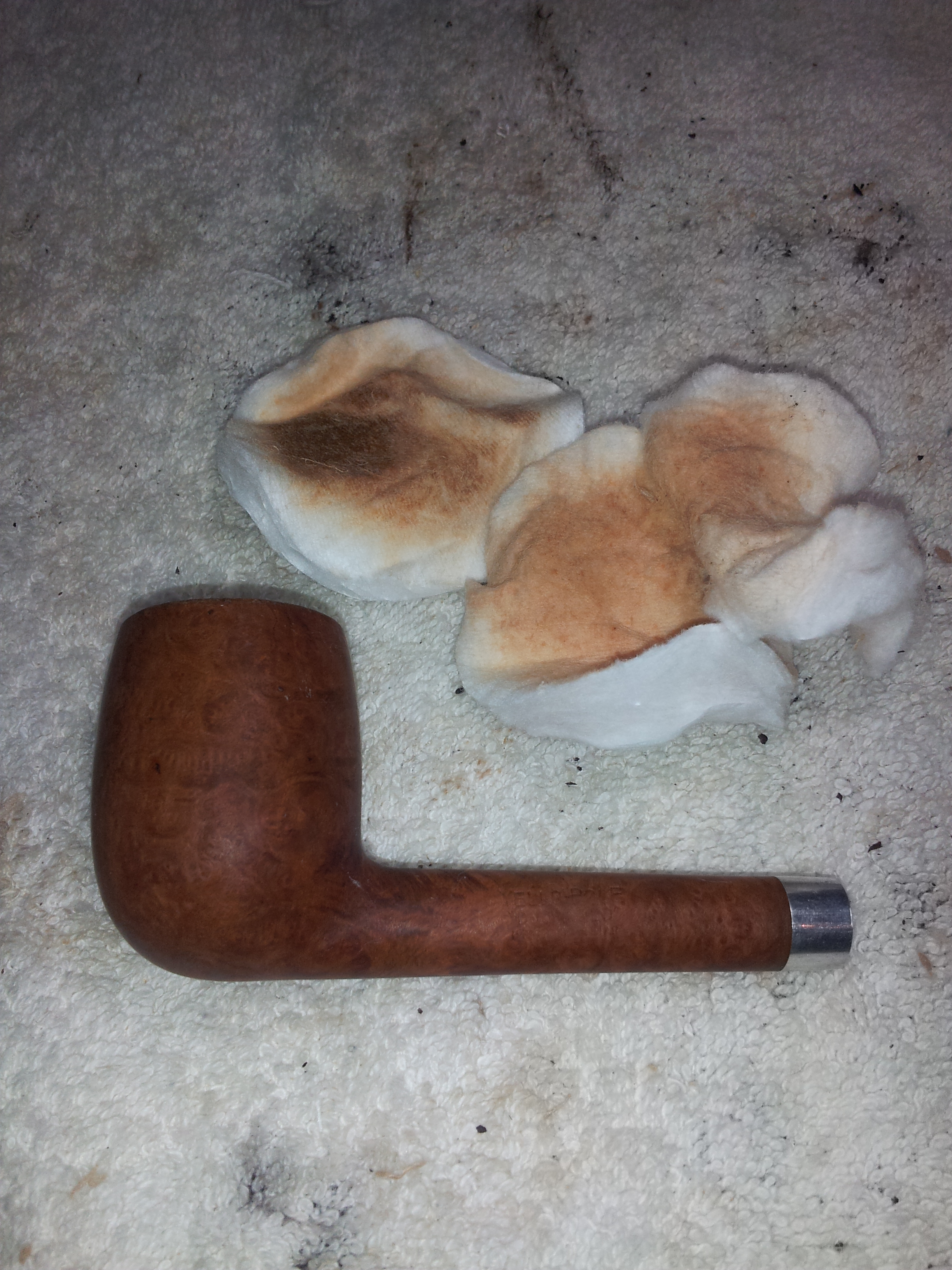

I wiped down the exterior of the stummel with nail polish remover and cotton pads to remove the last of the factory lacquer finish, then topped the bowl lightly to remove a few edge dents. The final pic below shows the entire pipe at this point in the refurbishment.

20150923_093421

20150923_094800 20150923_121247 20150923_121253

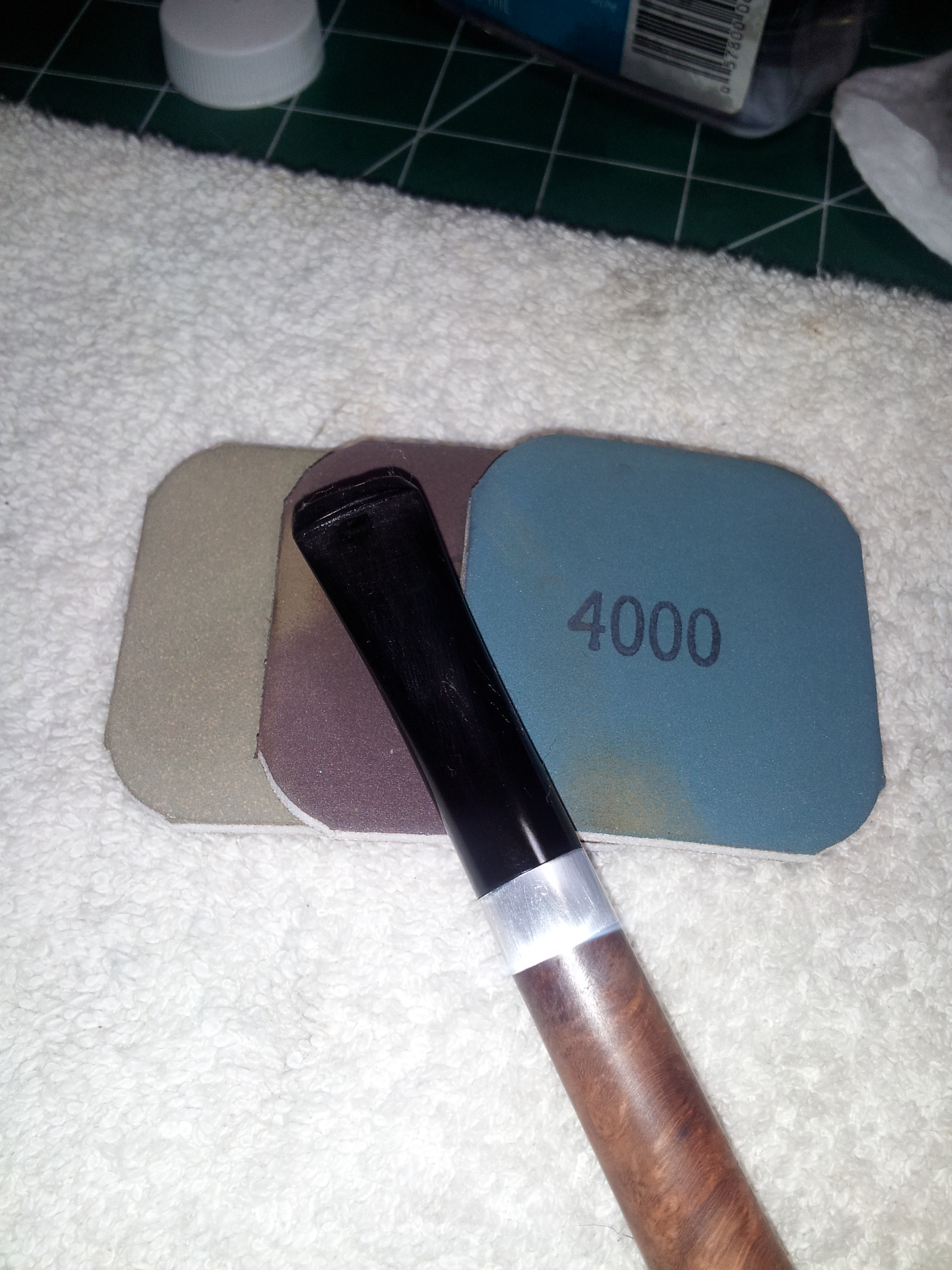

I moved back to the stem, this time with the Micro Mesh pads. I sanded the stem in sets of three pads until I had worked my way through the entire 1500 – 12000 grit lineup.

20150923_122316 20150923_122651 20150923_123232

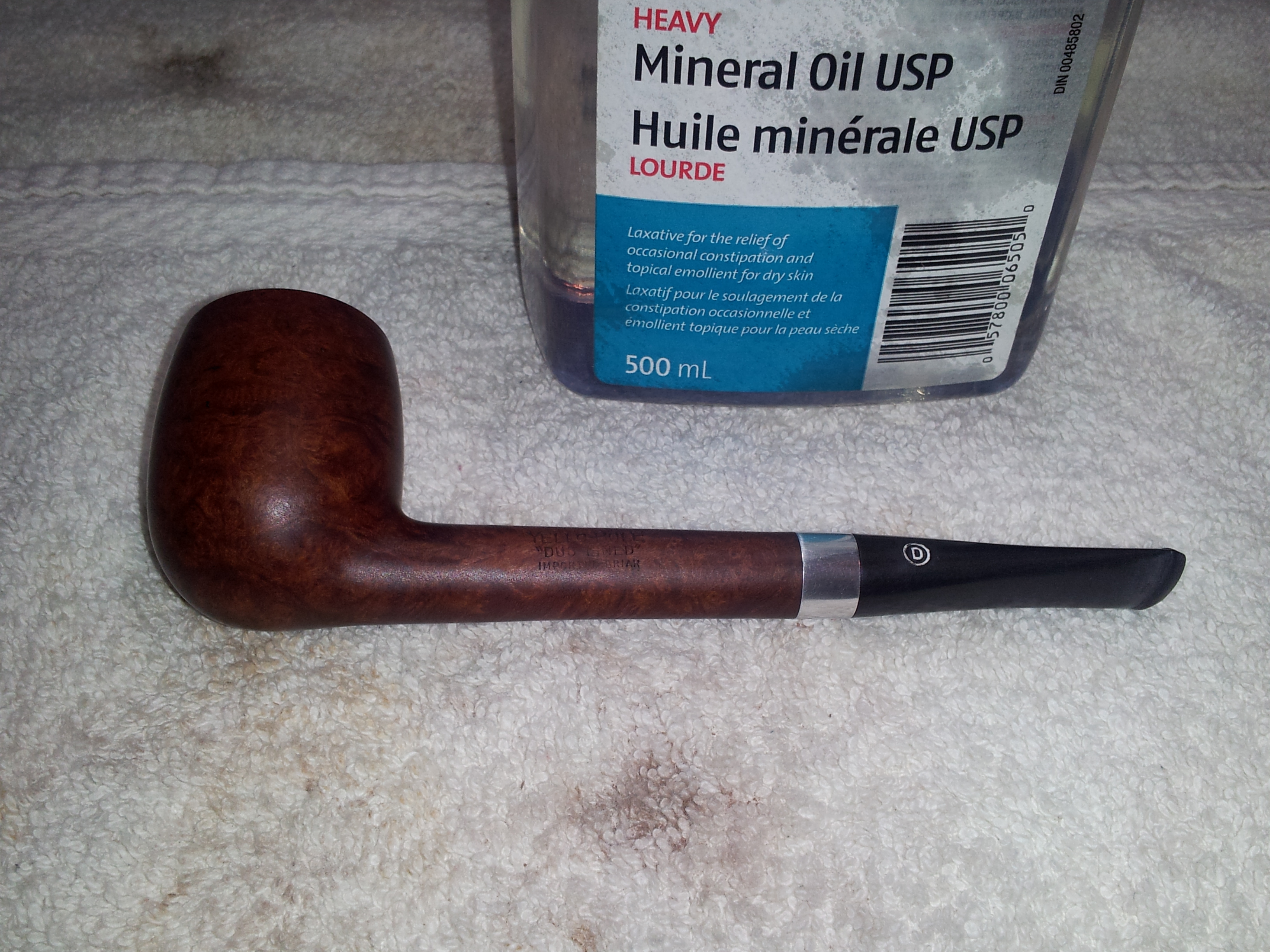

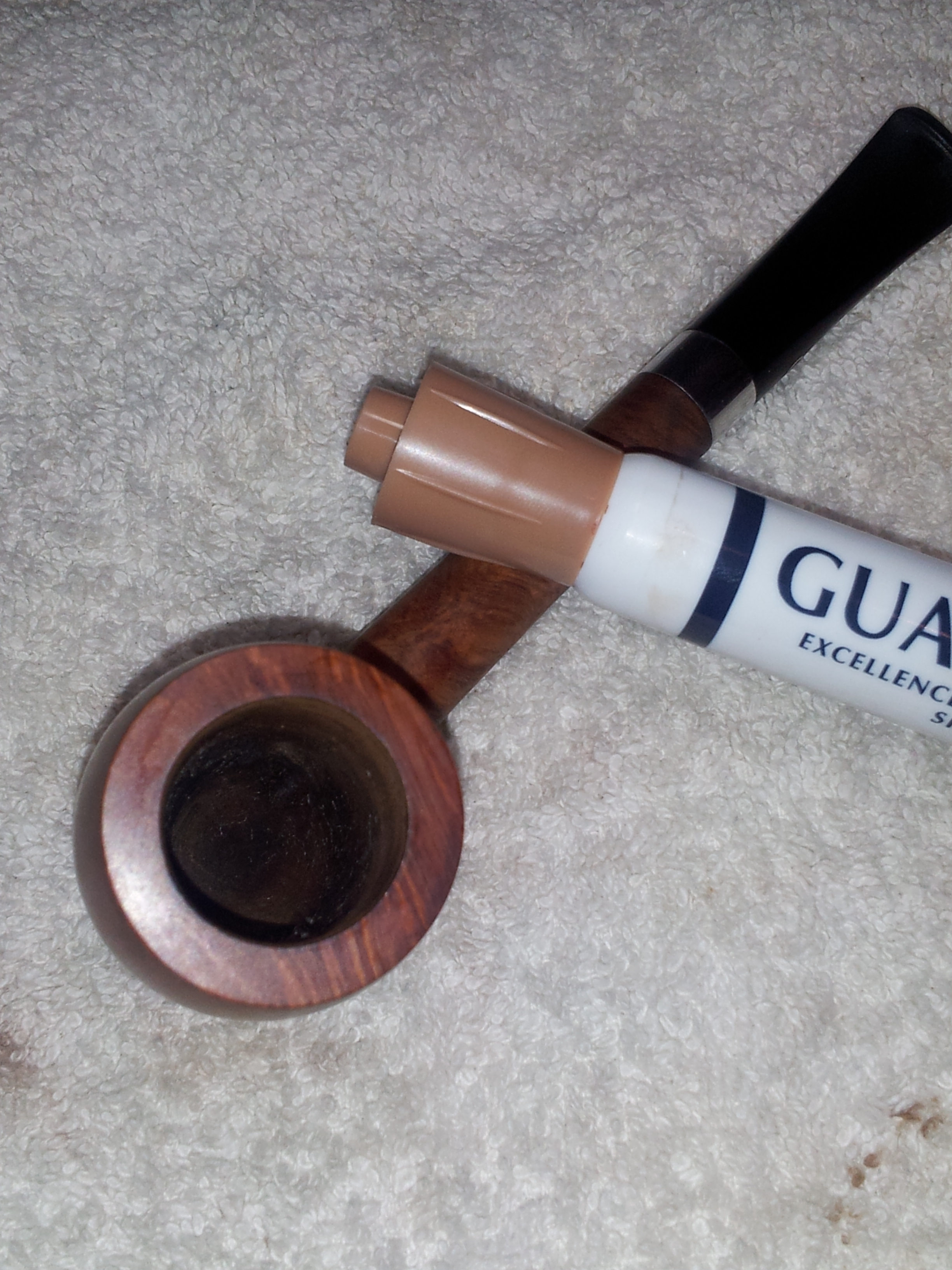

I touched up the stain on the rim with a stain pen, then wiped the pipe down with mineral oil to liven up the grain.

20150923_123558 20150923_130634

It was now time to address the over-reamed bowl, a task which, if I’m being honest, I had been putting off until the last possible moment. Given the amount by which the bowl floor needed to be raised, I decided against using traditional pipe mud made from cigar ash and water. I was afraid that pipe mud that thick would crack and fail as it dried; instead, I opted to use JB-Weld. JB-Weld is a steel-reinforced epoxy that dries hard without excessive shrinkage, and is exceptionally heat-resistant. It also cured to a stable, inert compound, and so is safe to use inside the bowl of a pipe.

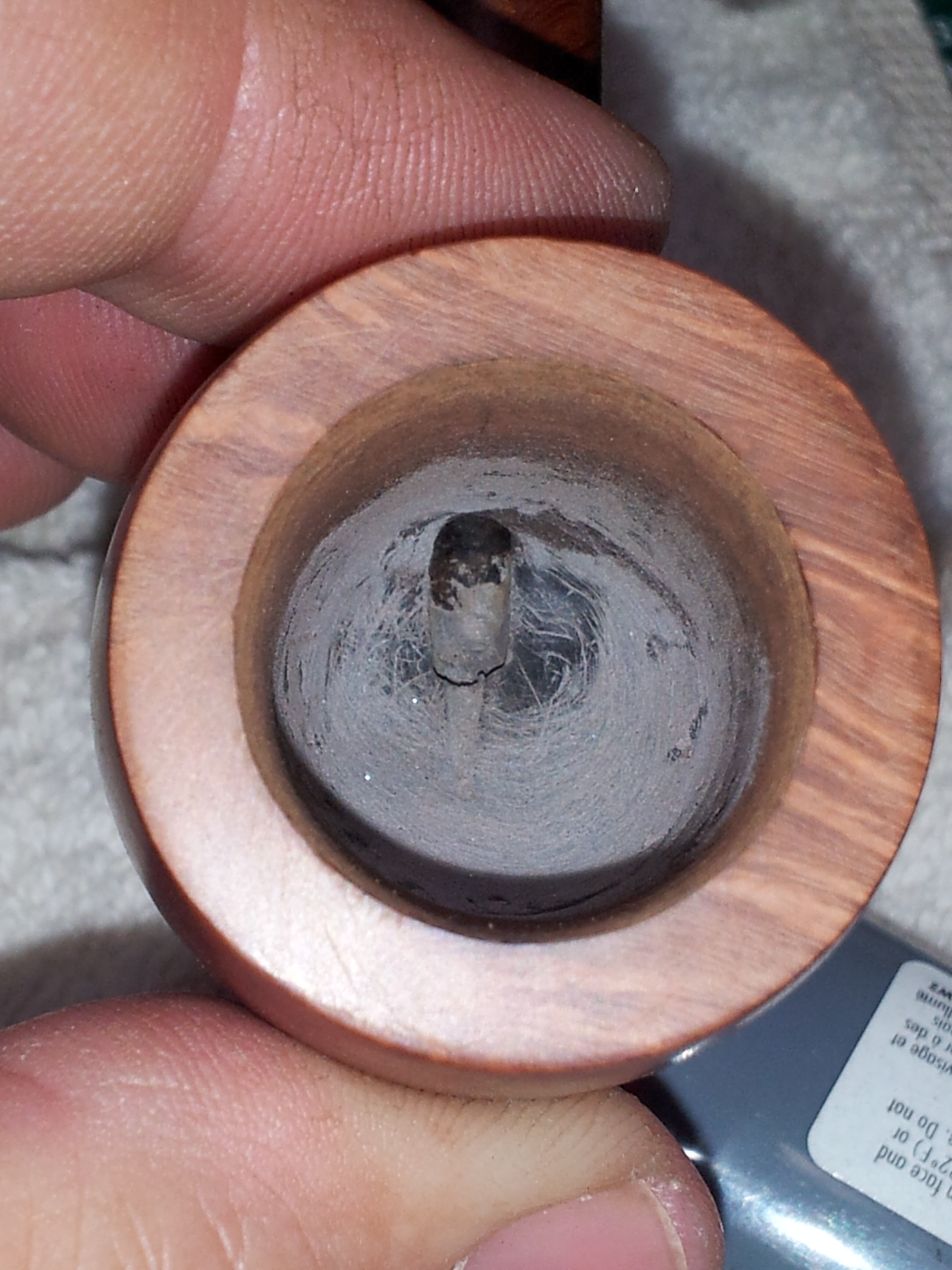

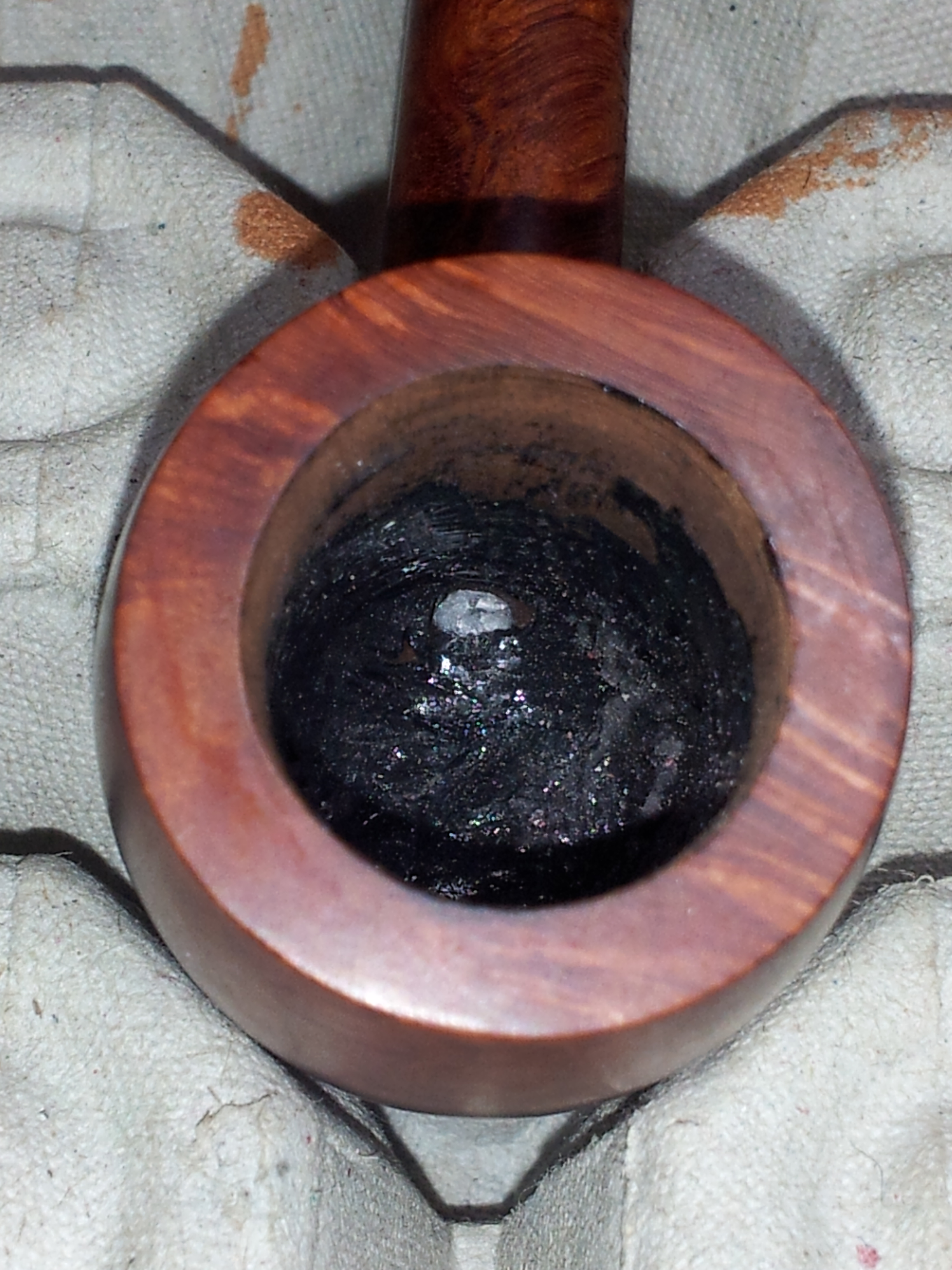

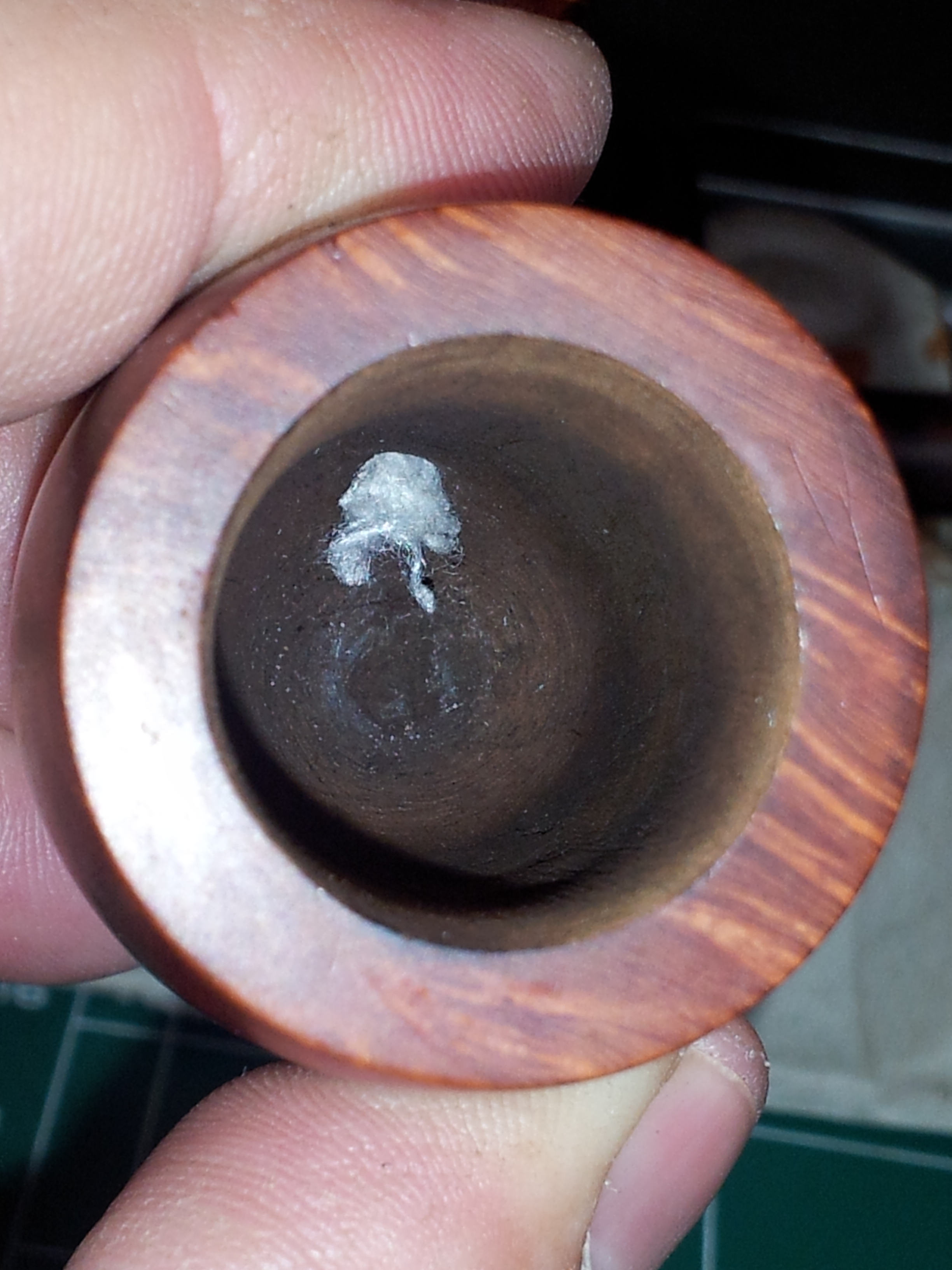

The next series of pictures shows the process of mixing and applying the JB-Weld to the bottom of the bowl. I inserted a pipe cleaner through the shank until it just entered the bowl. This would help keep the draft hole open. I then applied two layers of JB, allowing the first to cure, and giving it a rough sanding, before adding the second layer. As you can see in the pics, the first hit of JB brought the level of the bowl floor up significantly, while the second flowed across the first layer, leaving a smooth bowl floor. The repair was finished by re-drilling the draft hole and sanding the JB patch to blend it smoothly into the walls of the tobacco chamber.

20150924_10205620150924_103707 20150924_103547
20150925_085457 20150925_091846

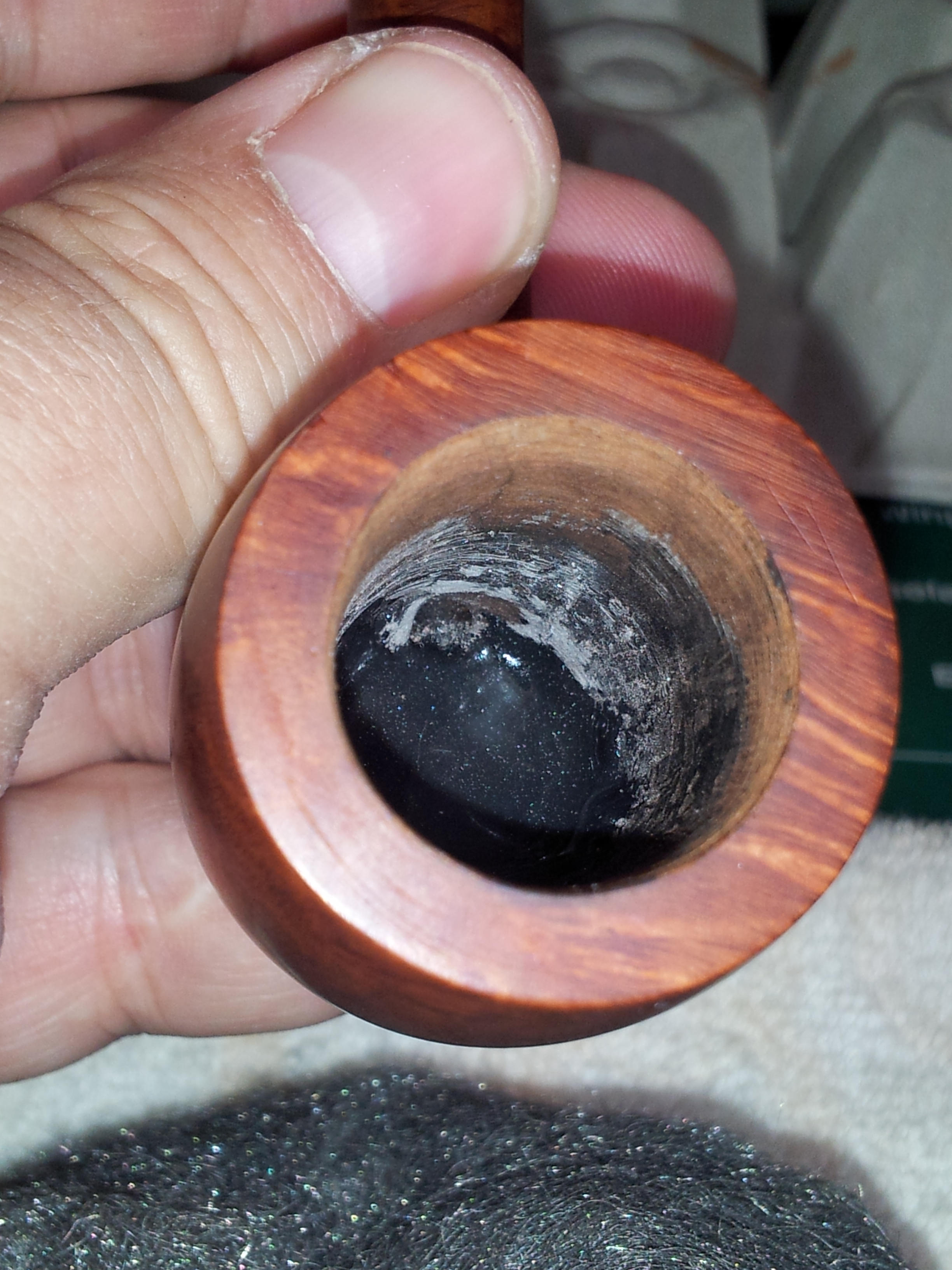

I buffed the entire pipe with my usual Red Tripoli and White Diamond compounds and gave it several coats of Carnauba wax before applying a bowl coating of maple syrup and activated charcoal powder. I have described this process in detail in THIS POST, so won’t get into the details again here. I will remind readers to let the fresh bowl coating cure for a WEEK before smoking the pipe again. This time allows the charcoal to be absorbed fully into the maple syrup, which in turn will dry with exposure to air. This forms the hard, black bowl coating that will both hide the grey JB-Weld and provide a firm yet breathable surface onto which new cake can form.

20150927_131348 20150927_133103 20150928_122726

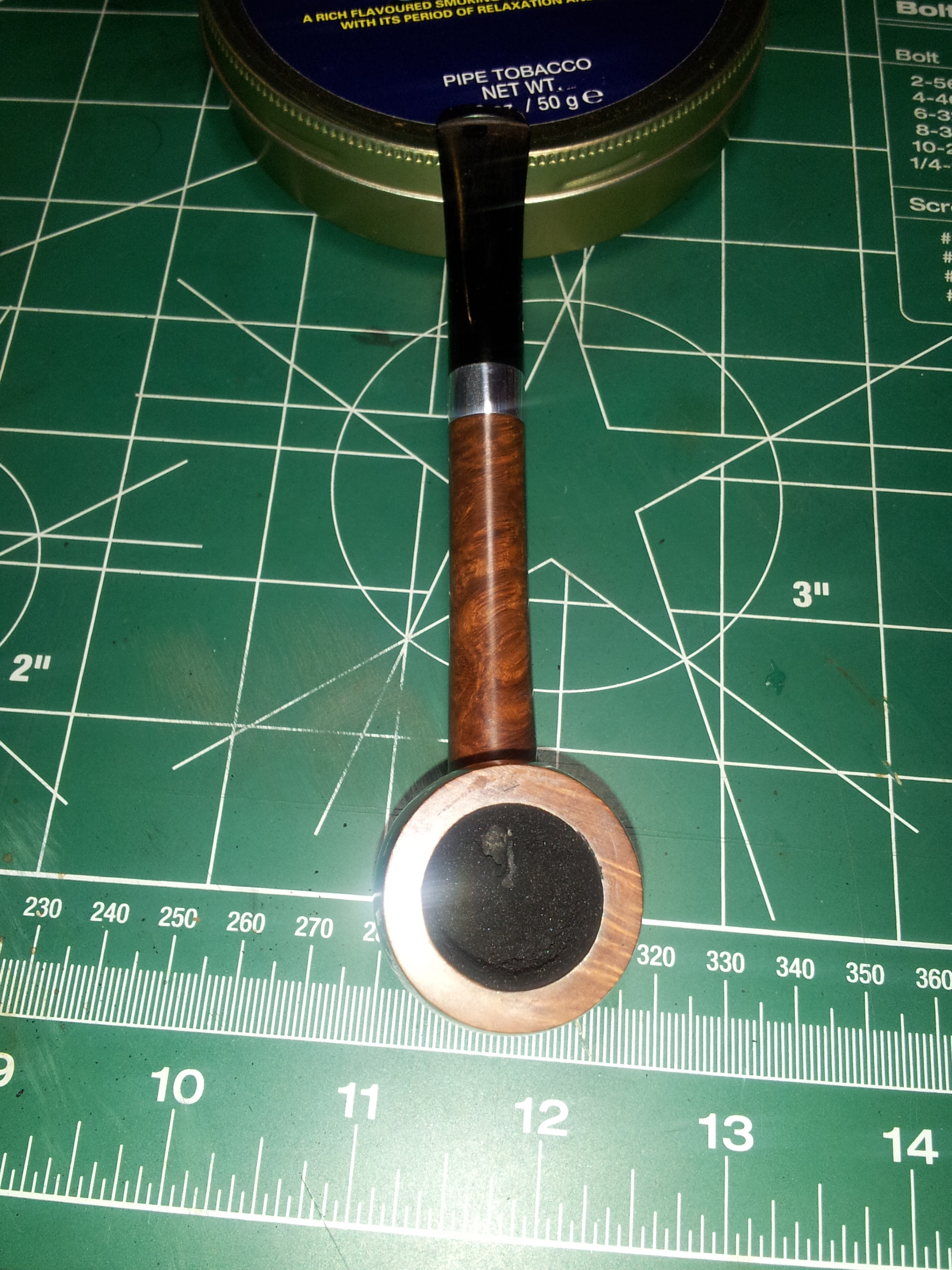

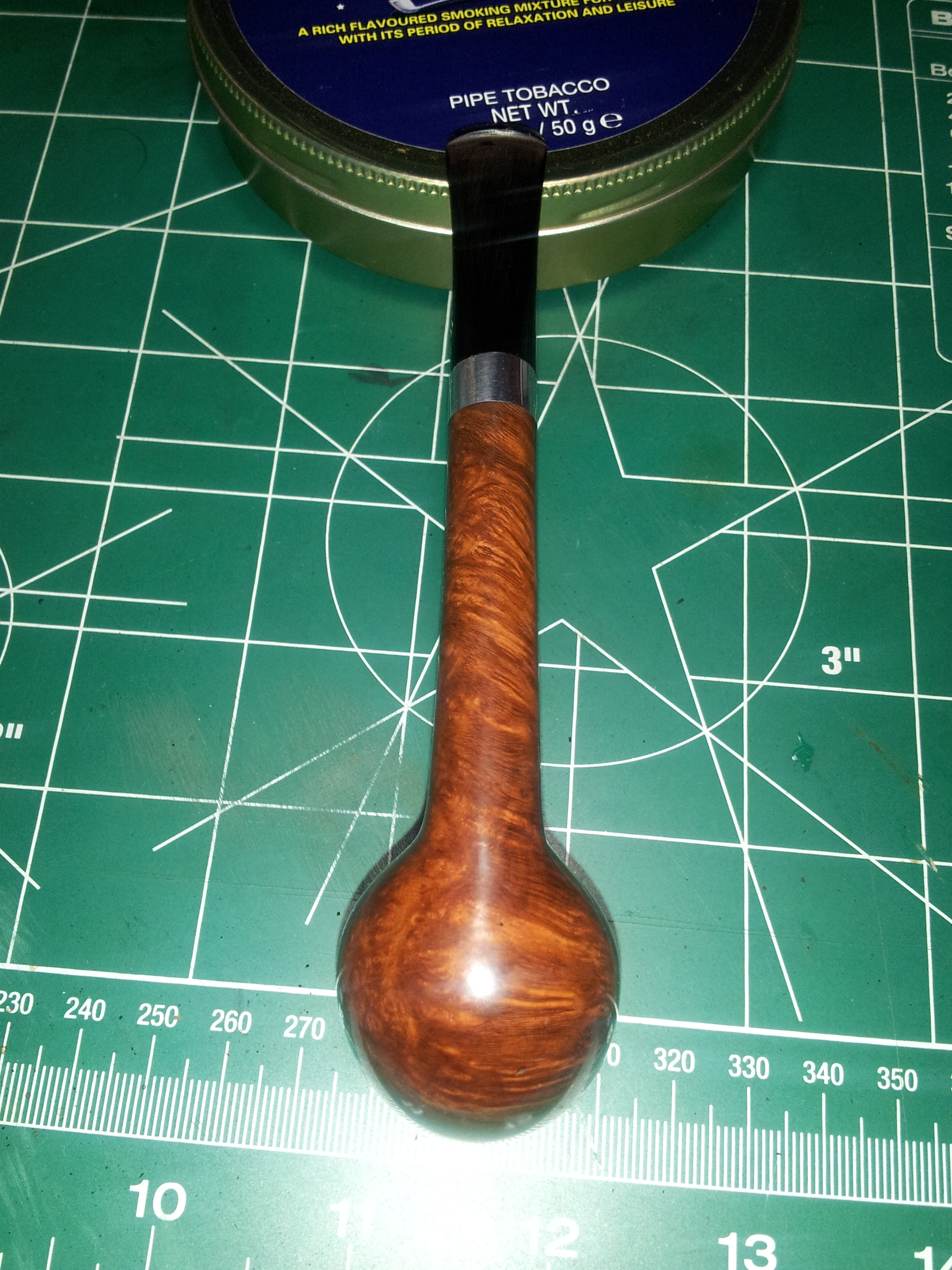

One week later, here is the finished pipe, ready to go. Though I could do without the cheap plastic stem, this pipe is one of my favourite shapes. The large bowl, long, slender shank and short stem come together to create an elegant, classically masculine pipe that should serve very well for years to come.

20150928_122802 20150928_122814 20150928_122841 20150928_122851
