Filling and Filing – An Exercise in Repairing Pits and Dents on a Treaty Bond Rhodesian

This is another pipe from my recently auction lot purchase. The shape and size of this Rhodesian is, at least for me, very appealing, though it may be a tad heavy for those that like to clench the pipe in their teeth. It is marked “Treaty Bond” over “Made in France” on the left shank, and, faintly, “Imported Briar” over “409” on the right shank.

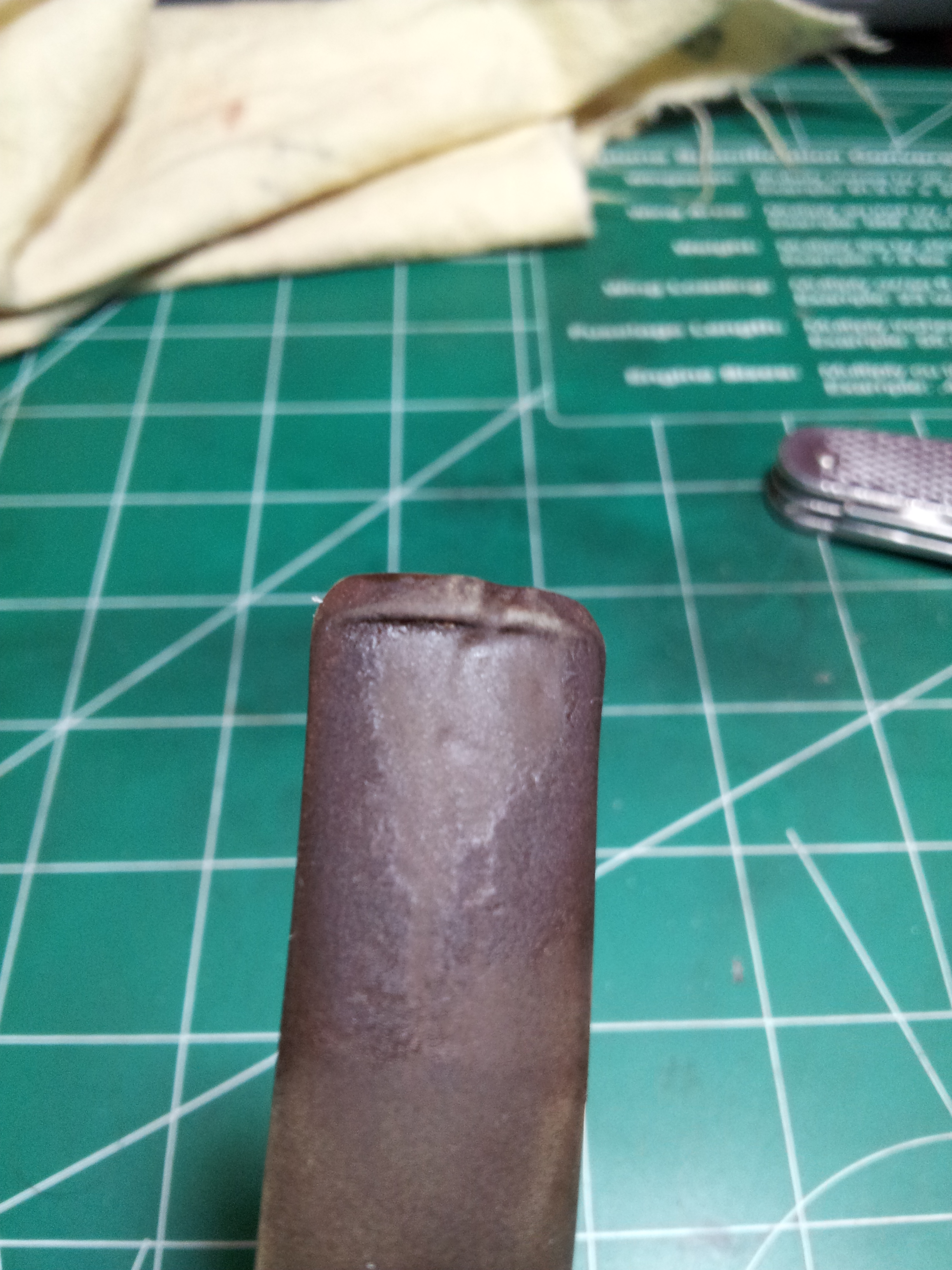

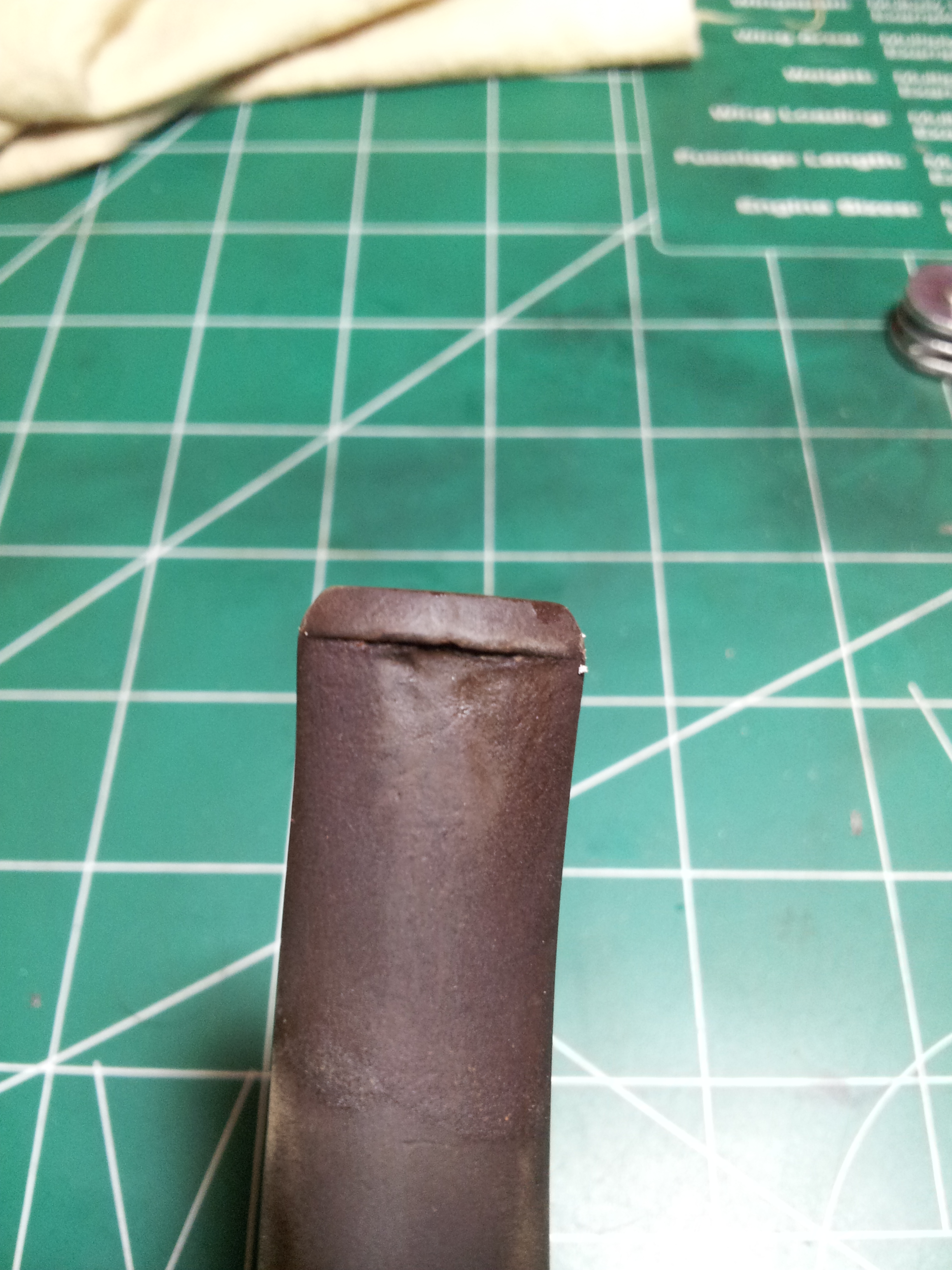

The pipe arrived on my work table like all the others from this lot – dirty! It had obviously been smoked a lot, as the bowl was clogged up with a heavy cake. In fact, the airway at the bottom of the bowl was completely caked over. The rim also had a layer of tars. The outside of the bowl was grimy and had two large spots where factory fills had fallen out. I also found a small crack on the bottom of the outside of the bowl. The stem was in similar condition – oxidized a grey/green colour and the bit was suffering from tooth dents top and bottom, including one that cut completely through the top of the bit.

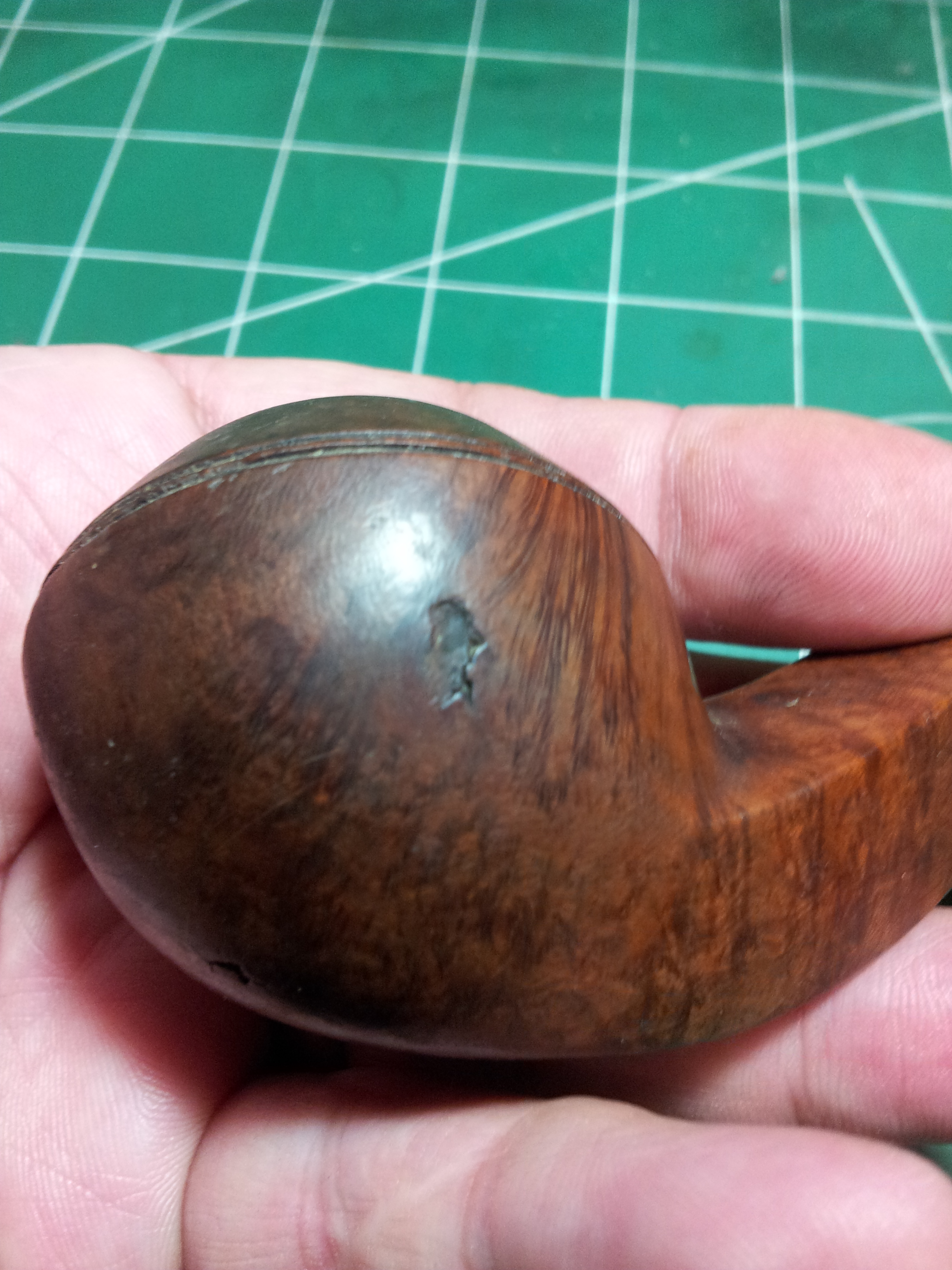

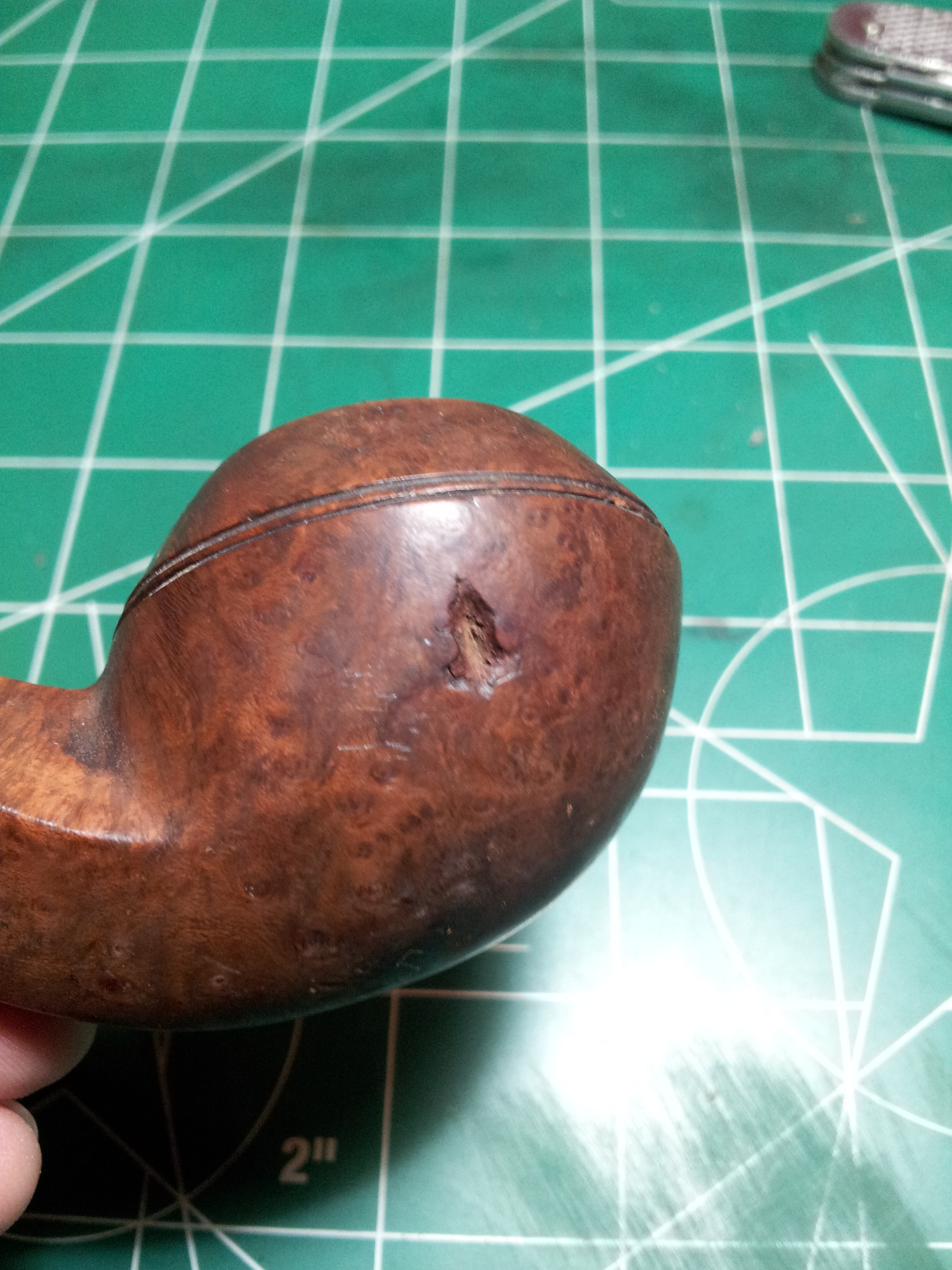

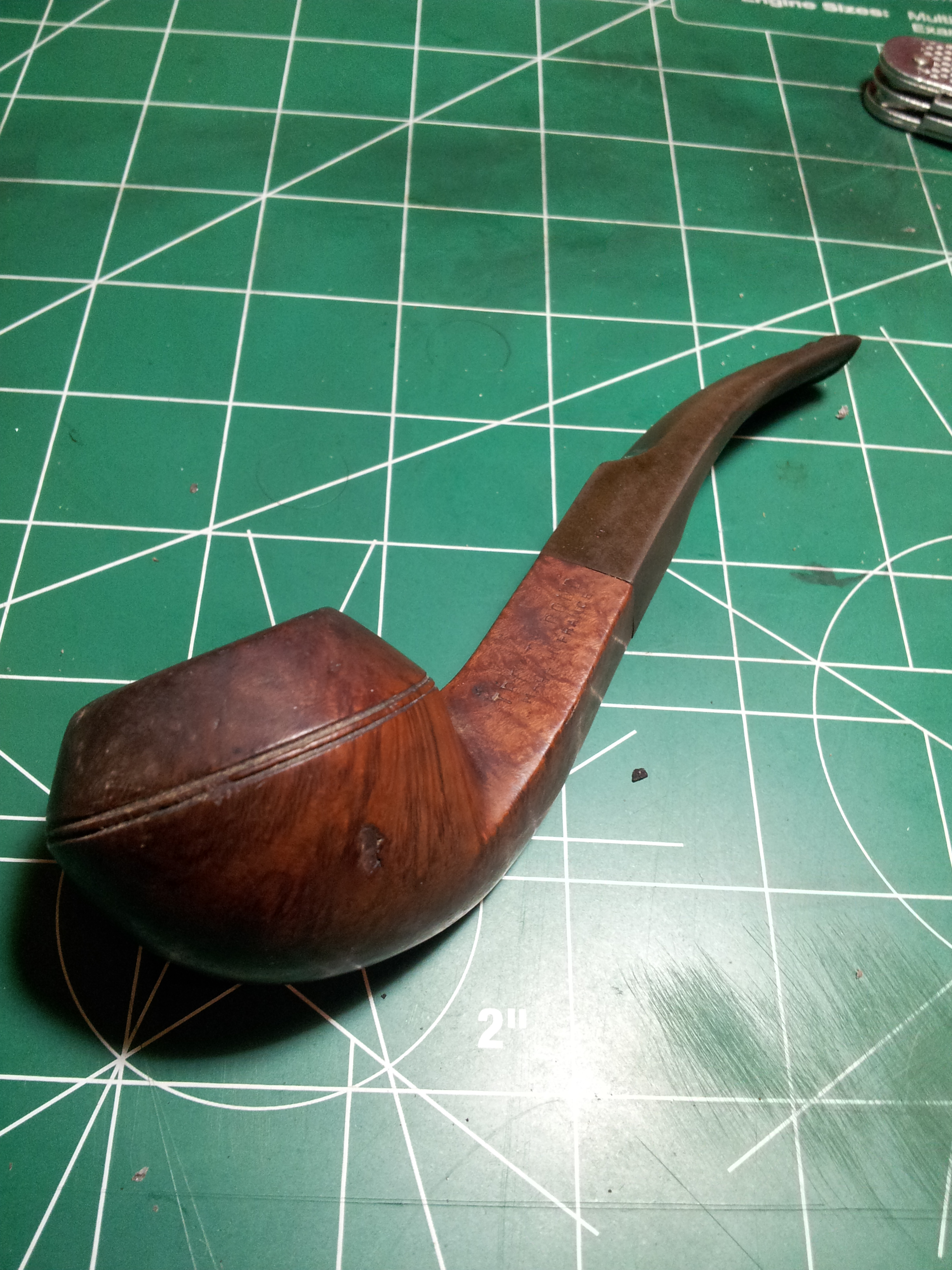

The pipe as found:

20150814_161638 20150814_161645 20150814_161651 20150814_161658 20150814_161703 20150814_161716 20150814_161724

Step 1 was reaming the bowl to remove the old cake and inspect for interior damage. I was happy to see that the small crack I had found on the outside of the bowl did not penetrate through the briar into the chamber. I then used a series of small drill bits to reopen the airway from shank to bowl. I started with a 1/8” bit, and turned it by hand until the drill bit broke through the accumulated tars and cake into the bowl. I moved on to larger bits, ending at 5/64”. At this point a few pipe cleaners dipped in isopropyl alcohol finished the job, removing the last of the old tars and gunk from the shank.

Moving on, I dropped the stummel into an alcohol bath and the stem into an Oxyclean bath for a nice long soak. I pulled out the stem after about an hour and scrubbed the accumulated oxidation off with 0000 steel wool and a Magic Eraser pad. I paid careful attention to the shank end of the stem, as I didn’t want to round over the sharp edges of the diamond shank. After this initial scrub-down, I did all the stem sanding with the stem seated fully in the pipe shank so I could easily maintain the crisp transition from briar to vulcanite.

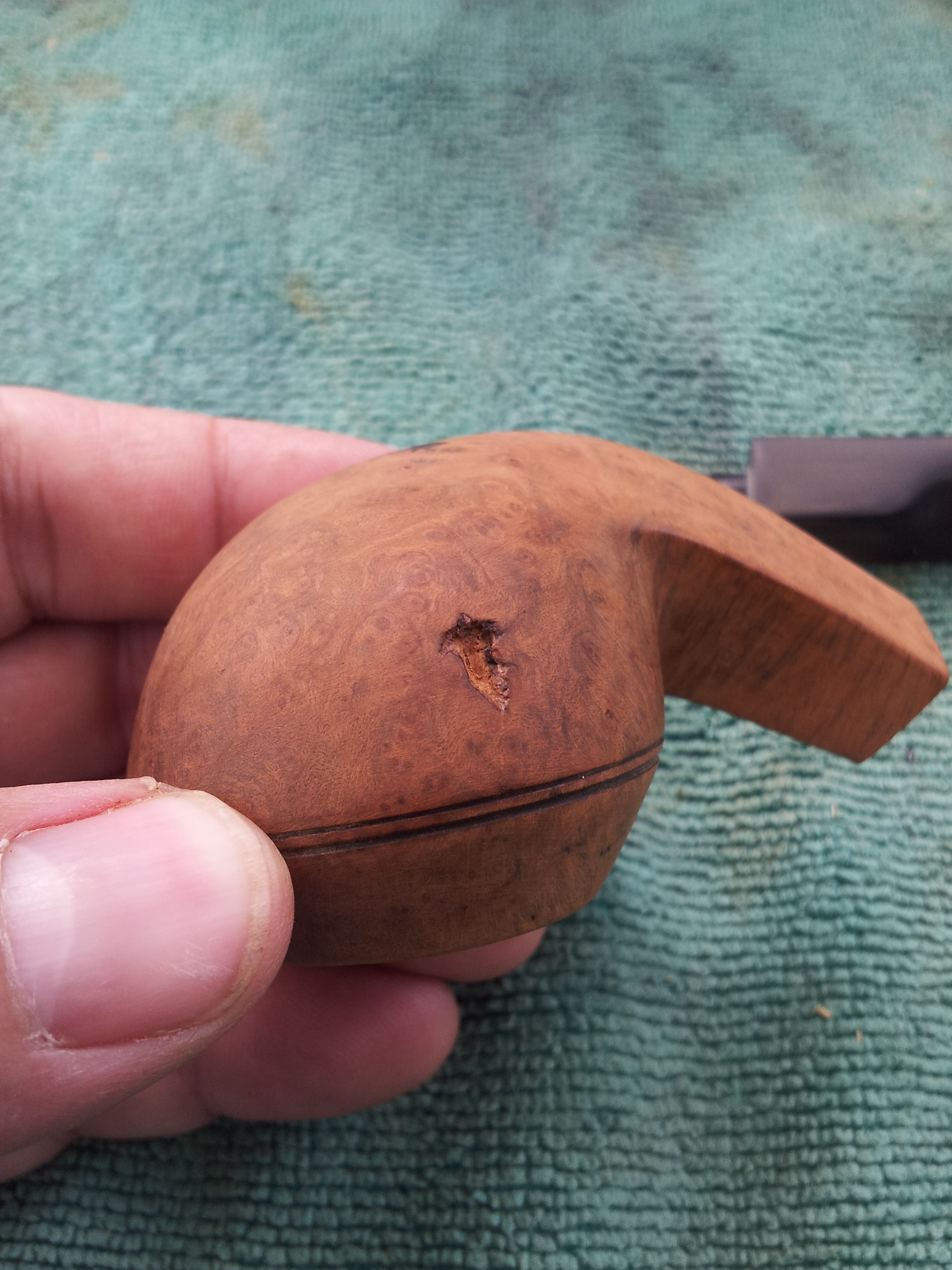

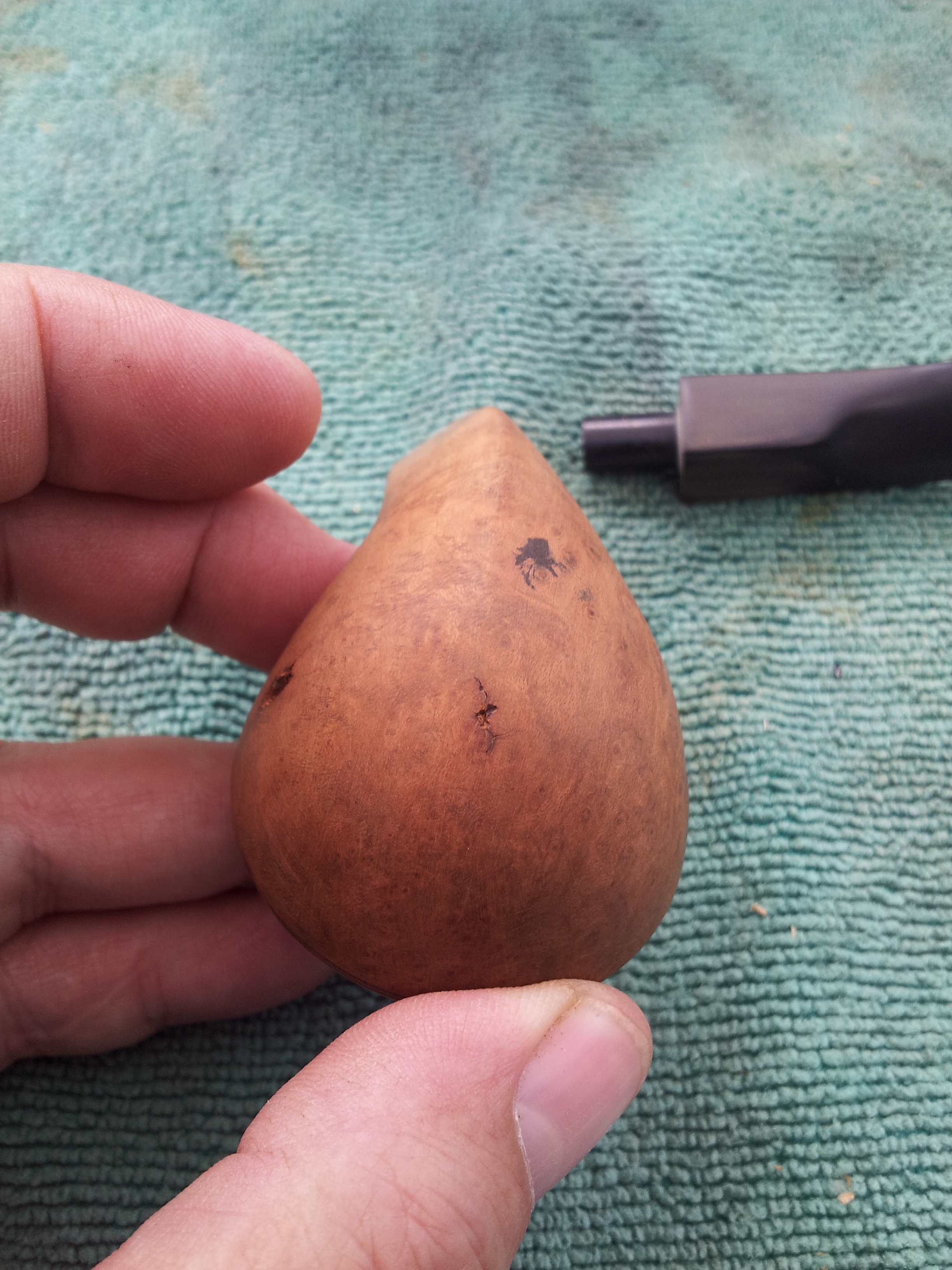

With the basic work on the stem complete, I moved to the stummel. I pulled it out of the alcohol bath and dried it with a towel before giving it a good inspection. The alcohol had softened the remains of the old putty fills in the two large dents. I carefully picked out what was left of the putty and gave the entire stummel a once-over with some 320-grit sandpaper. Here’s the pipe at this point.

20150815_114746 20150815_114751 20150815_114754

Time to do something about those dents! I mixed up some fill material from CA glue and briar dust and pressed it into the dents. I overfilled the dents, as the glue will shrink slightly as it dries. The patches were then sanded flush with the surrounding briar. Because of the depth of these dents, I had to repeat the fill/sand process several times, gradually bringing the fill level up to the surrounding wood. The small surface crack on the bottom of the bowl was repaired with a quick hit of thin CA glue.

20150815_115657

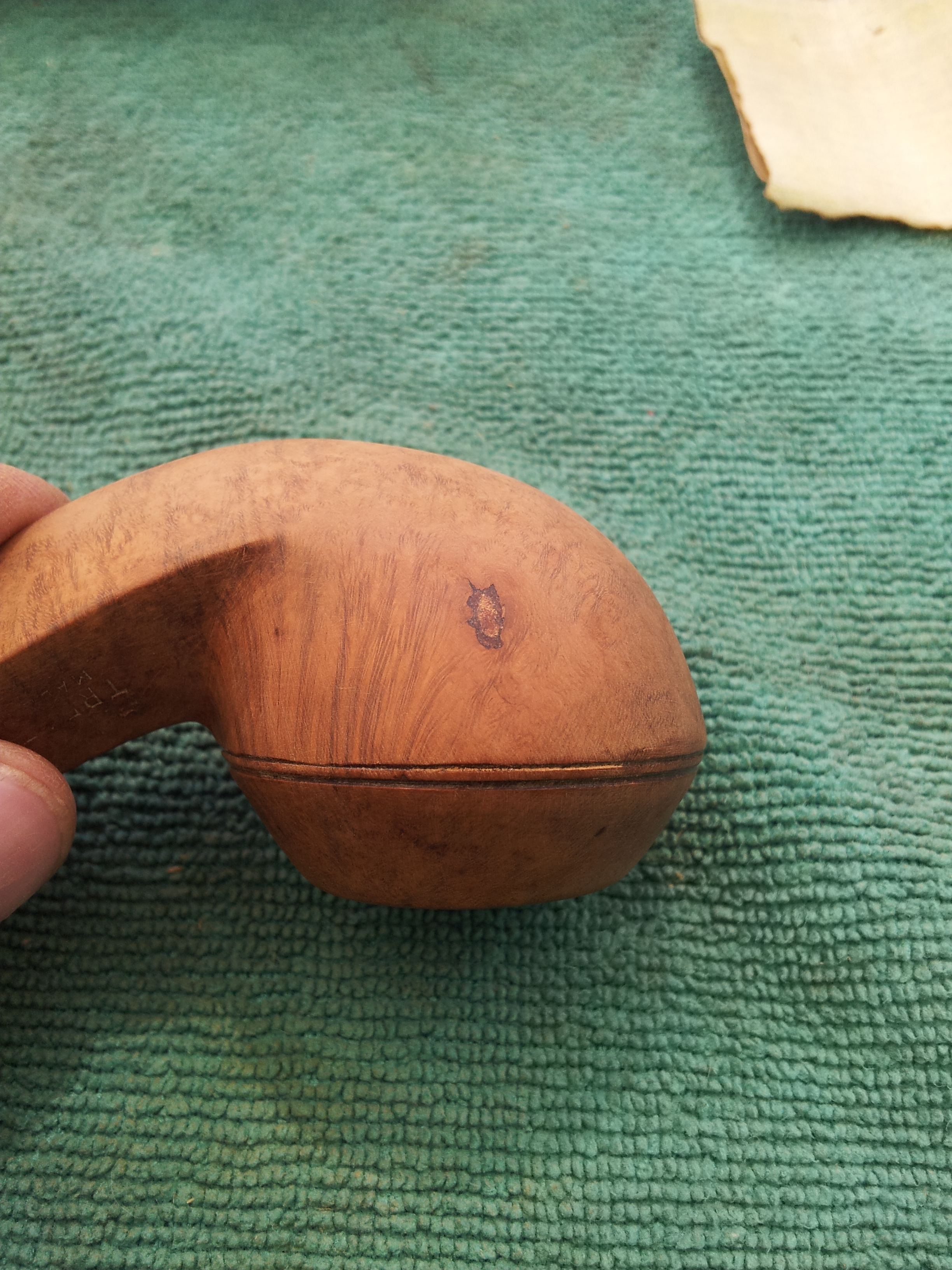

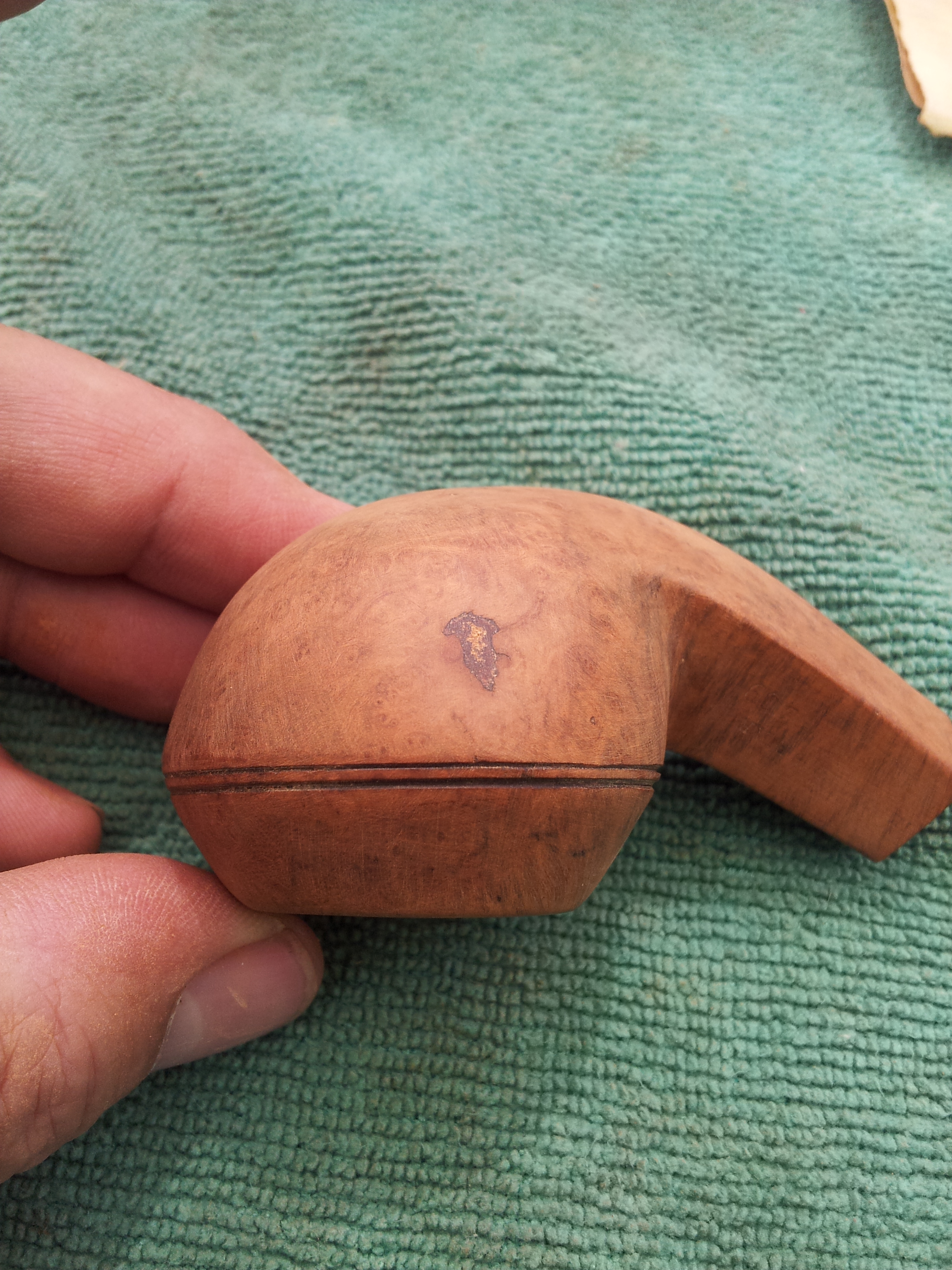

Then it was time to sand, sand and sand some more! The briar dust fills levelled out quickly. I then sanded the entire pipe, spending a lot of time working out a darker patch on the front face of the bowl and what looked like an ink stain on the lower left.

20150815_122738 20150815_122743 20150815_122748

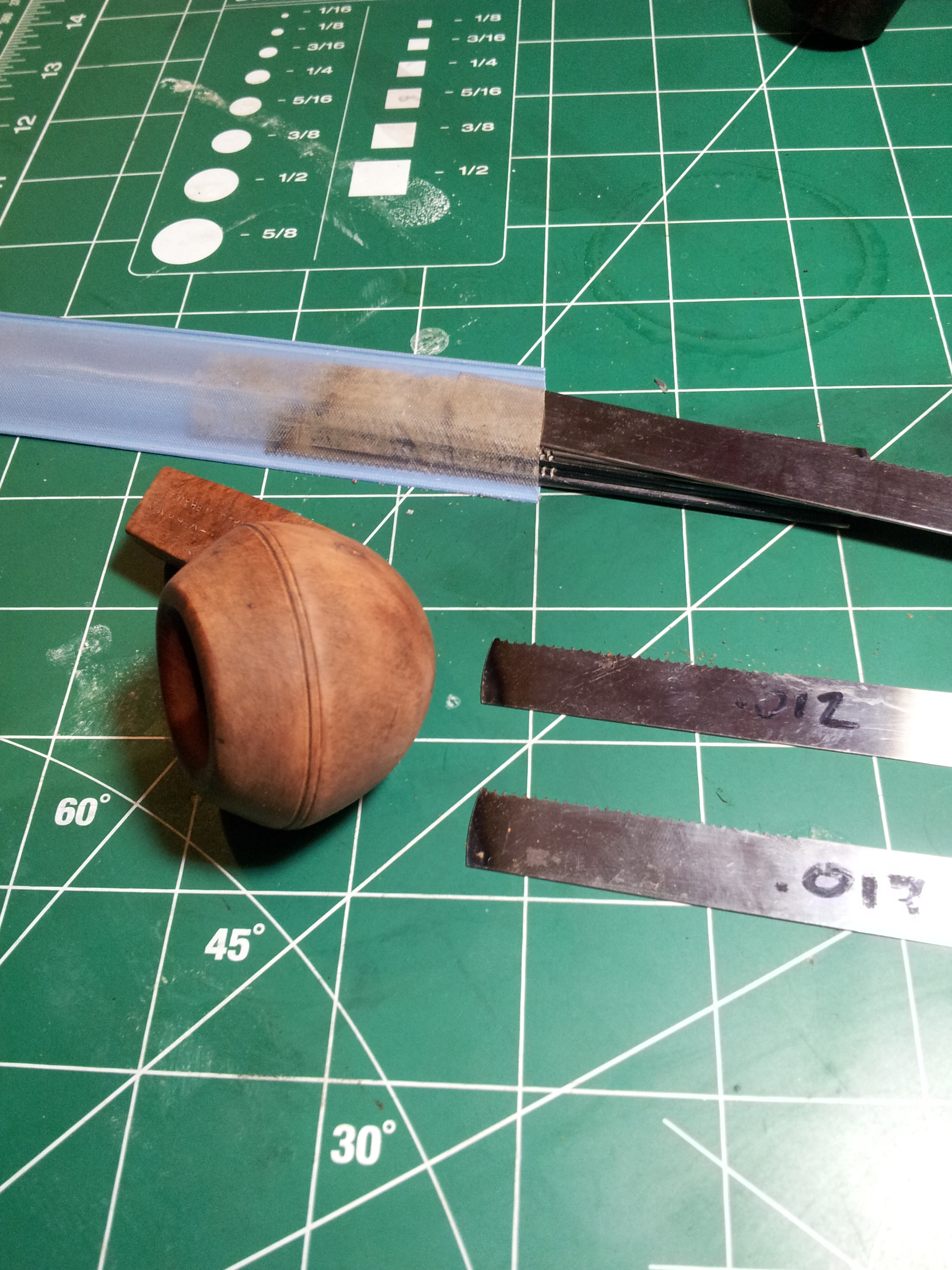

All the sanding left the twin rings around the bowl slightly shallow, so I dug into my guitar repair kit and used several thin files (made for cutting string slots in bone) to clean out and redefine the rings.

20150815_133324

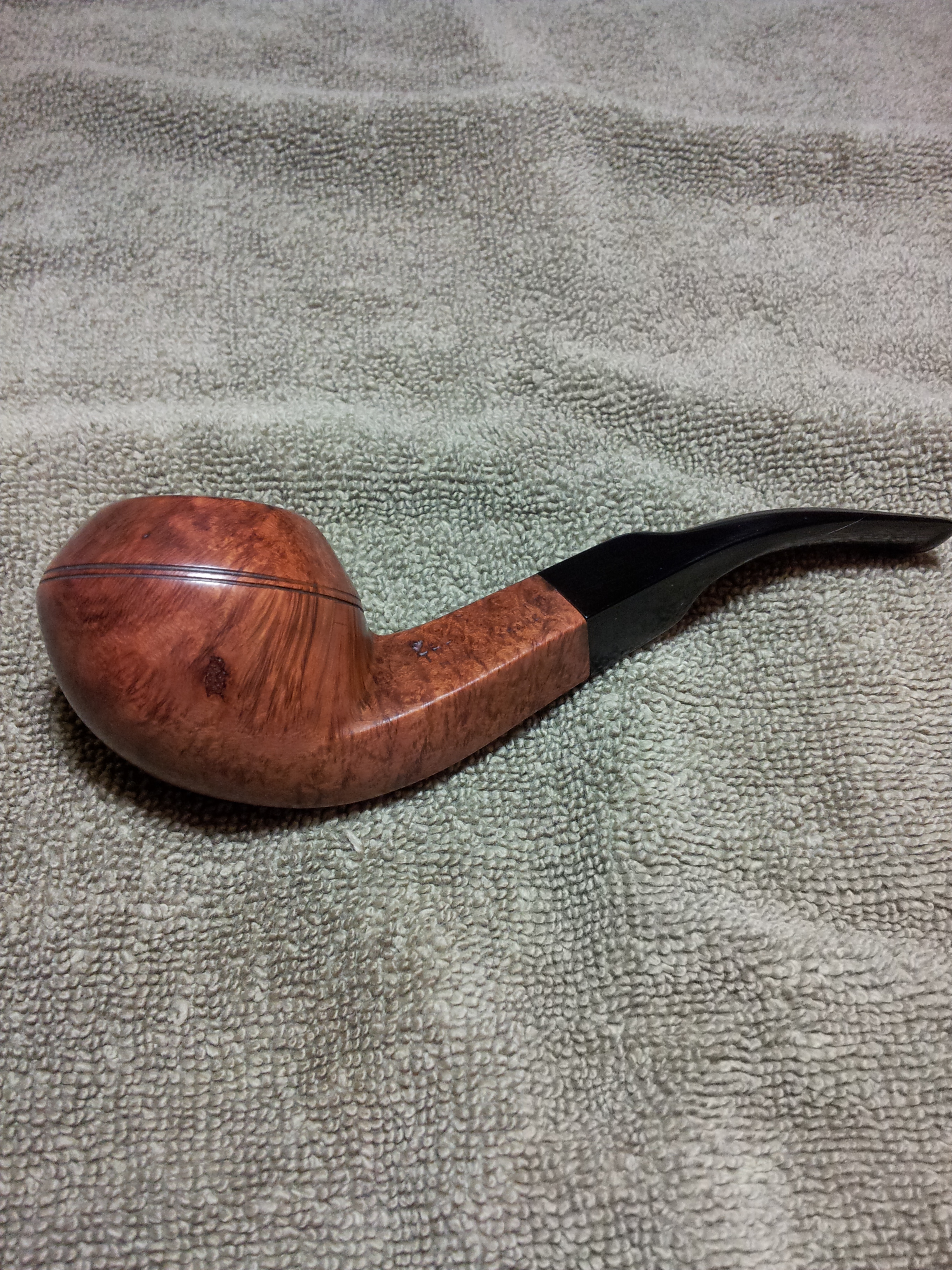

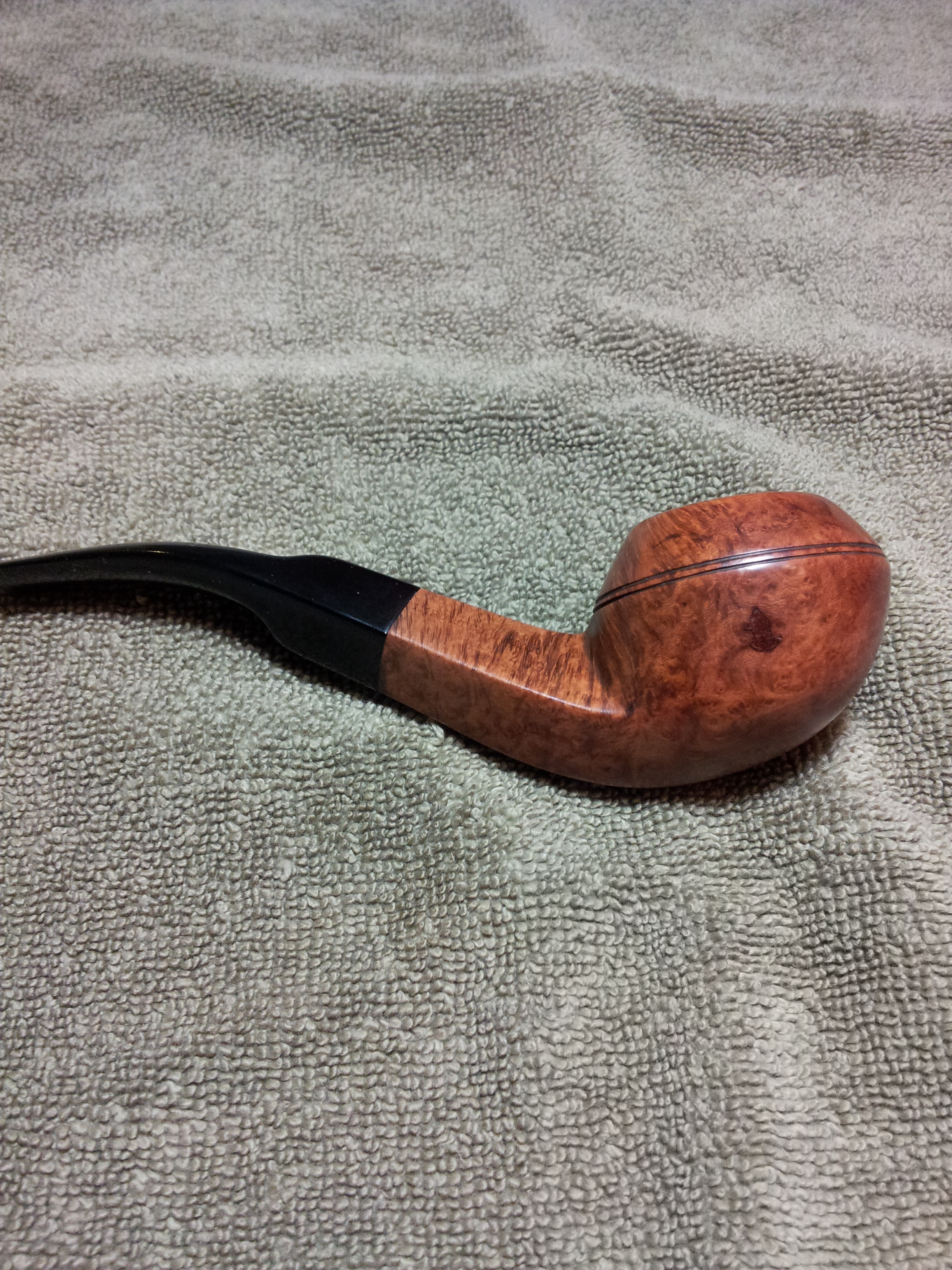

The pipe was ready for a final sanding/polishing in preparation for staining. I wet-sanded the pipe with 400-2000 grit paper, and let it dry. My original plan for staining this Rhody was to go with a two-colour contrast stain. I applied a coat of Fiebing’s Black to the briar and let it dry before sanding off the surface stain. The sanding exposes most of the briar while leaving the black colour in the softer grain. I decided that I liked the contrast between the black and the natural briar, so I left the stain as it was. I buffed the pipe quickly using Red Tripoli to remove leftover traces of stain, and then wiped the pipe with mineral oil to add depth to the grain and bring out the natural reds of the wood. The large fills on the sides of the bowl are still quite visible, but I think the original fills would have been as well. A darker overall stain would help to hide them, but this would have meant also covering the attractive birdseye and tiger stripe grain on the rest of the pipe. I chose to let the fills stand as proud reminders of battles fought and won during this pipe’s many past campaigns.
20150816_165029 20150816_165035 20150816_165041 20150816_165100

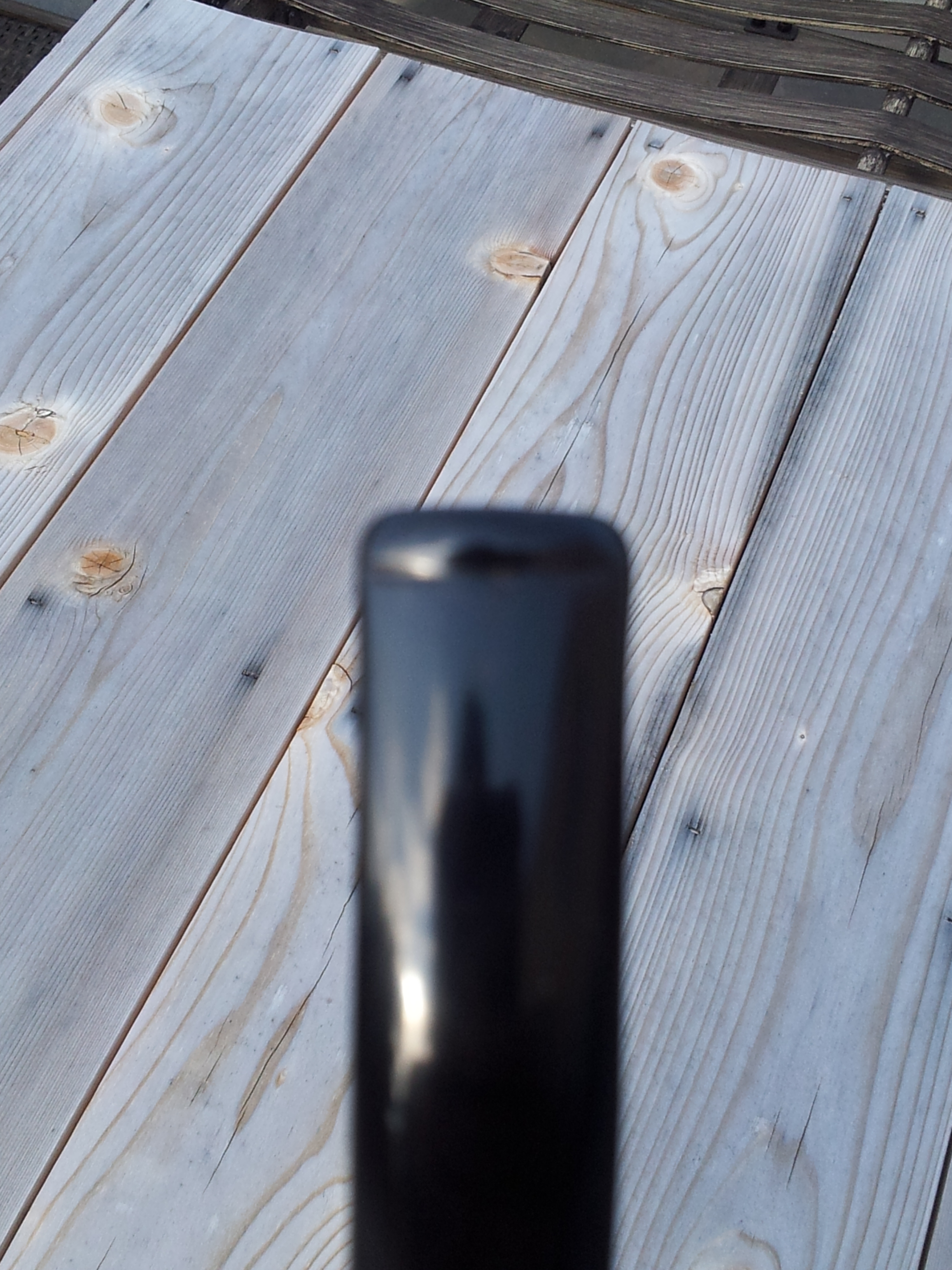

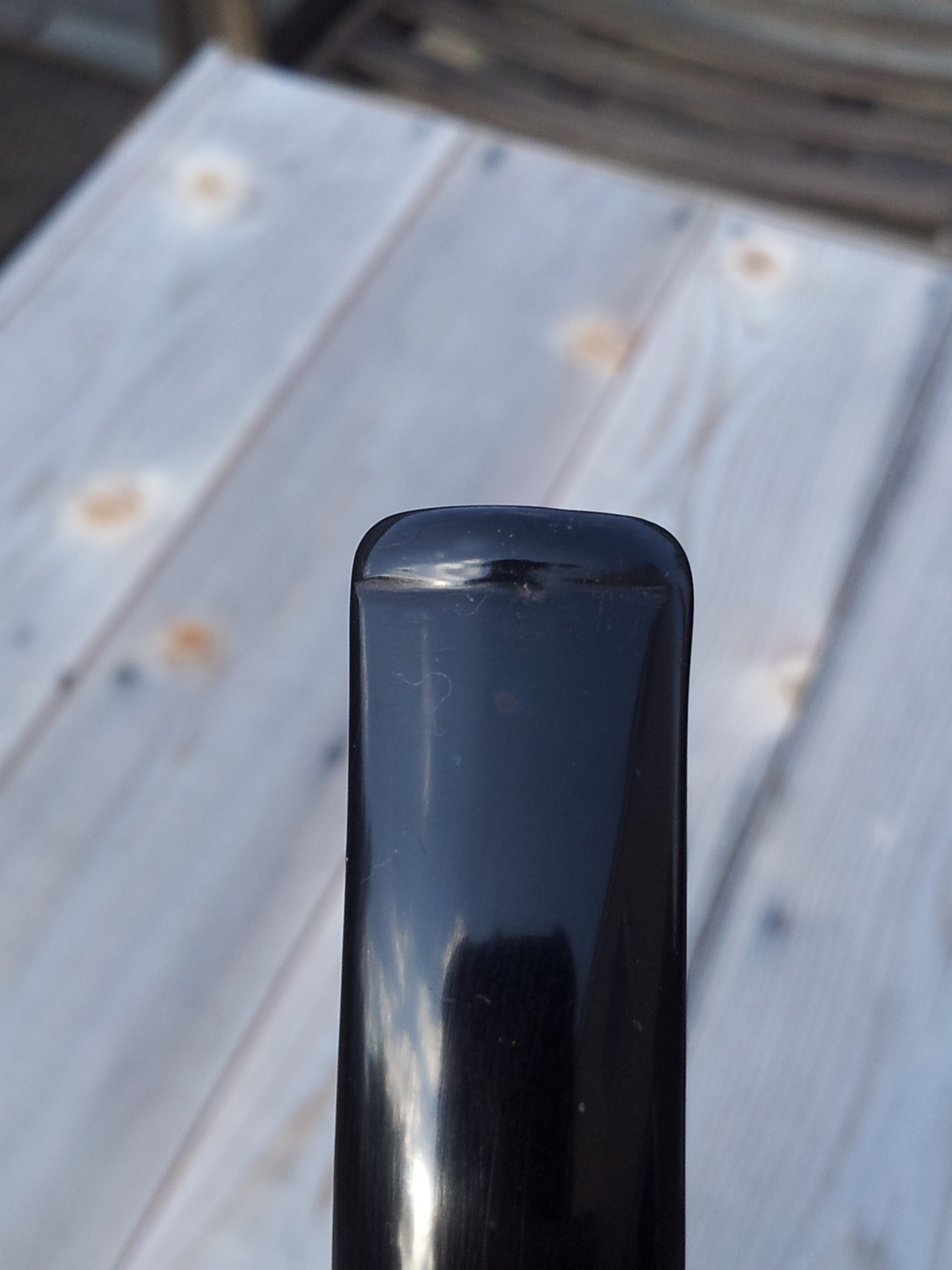

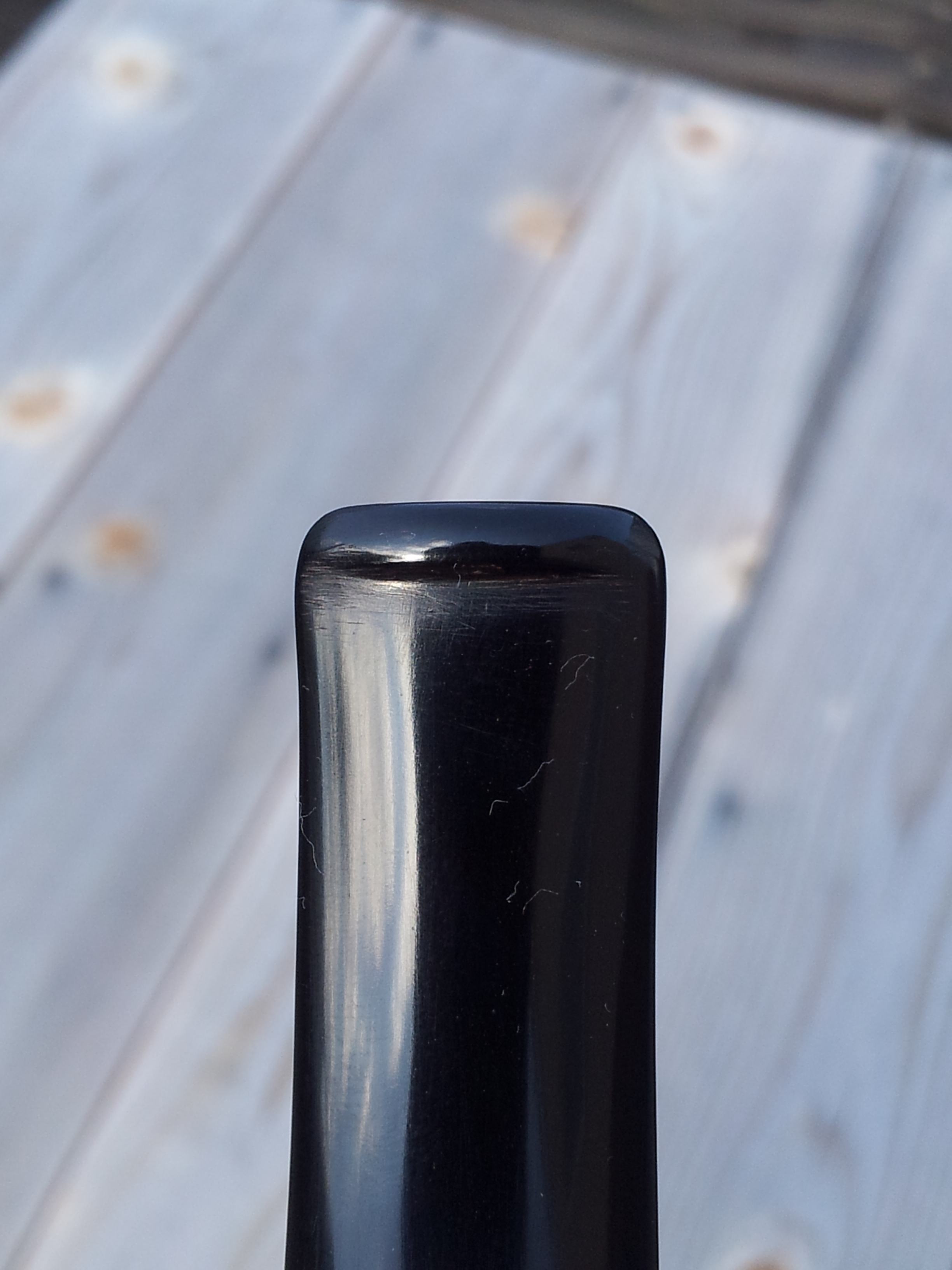

At this point, the stummel was ready for final buffing and waxing, but the stem still needed work to address the tooth dents. I decided to fill the dents with a mixture of CA glue and activated charcoal powder. I mixed a small amount of this filler in a disposable cup and, working quickly, applied the fill to the dents with a toothpick. I find this fill material dries VERY quickly, so in less than a minute I was filing down the excess fill, bringing it down flush with the original stem surface. The stem was then wet-sanded to 2000-grit to remove the sanding marks and polish the repair area.


20150816_165456 20150816_165501

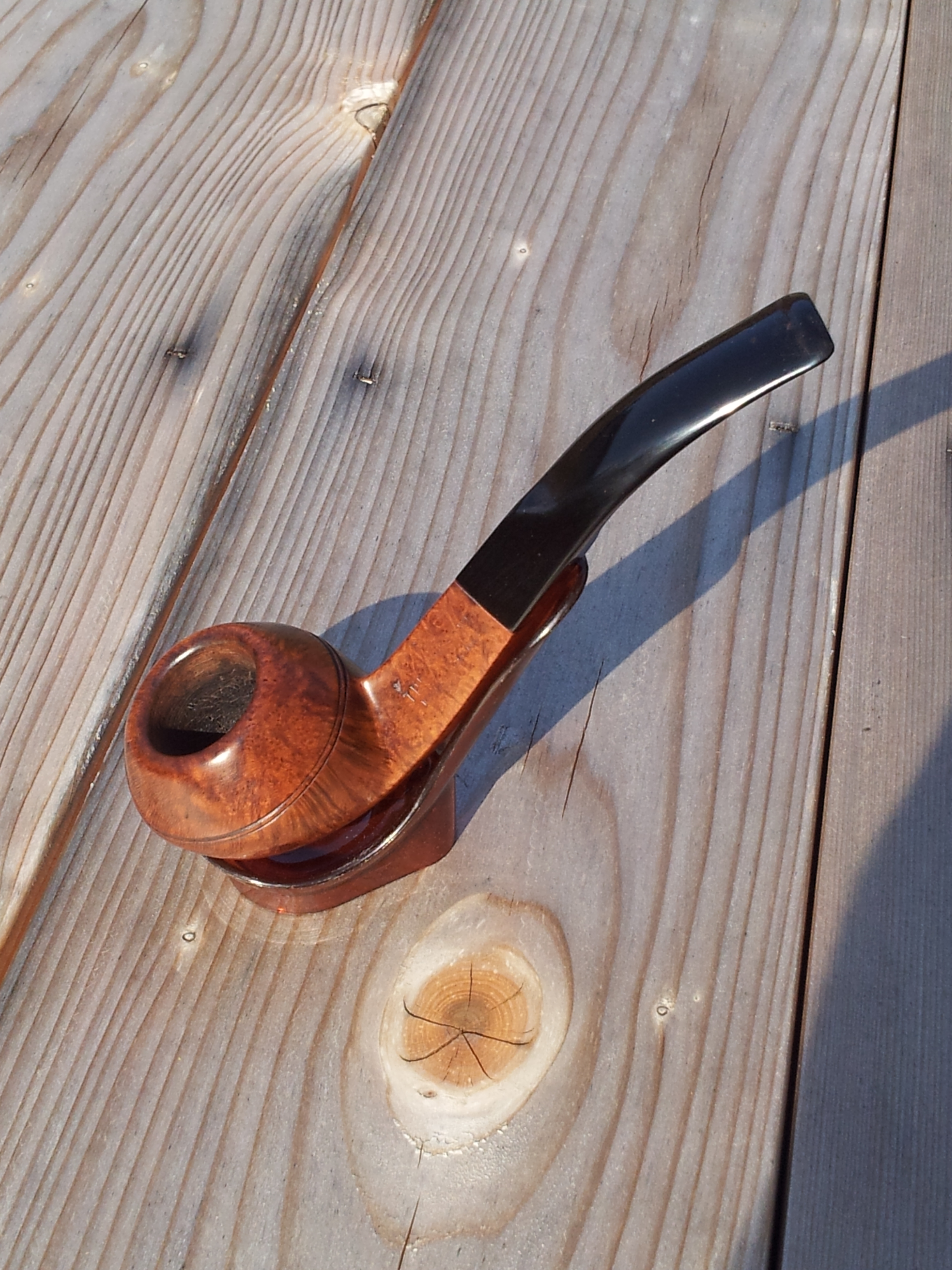

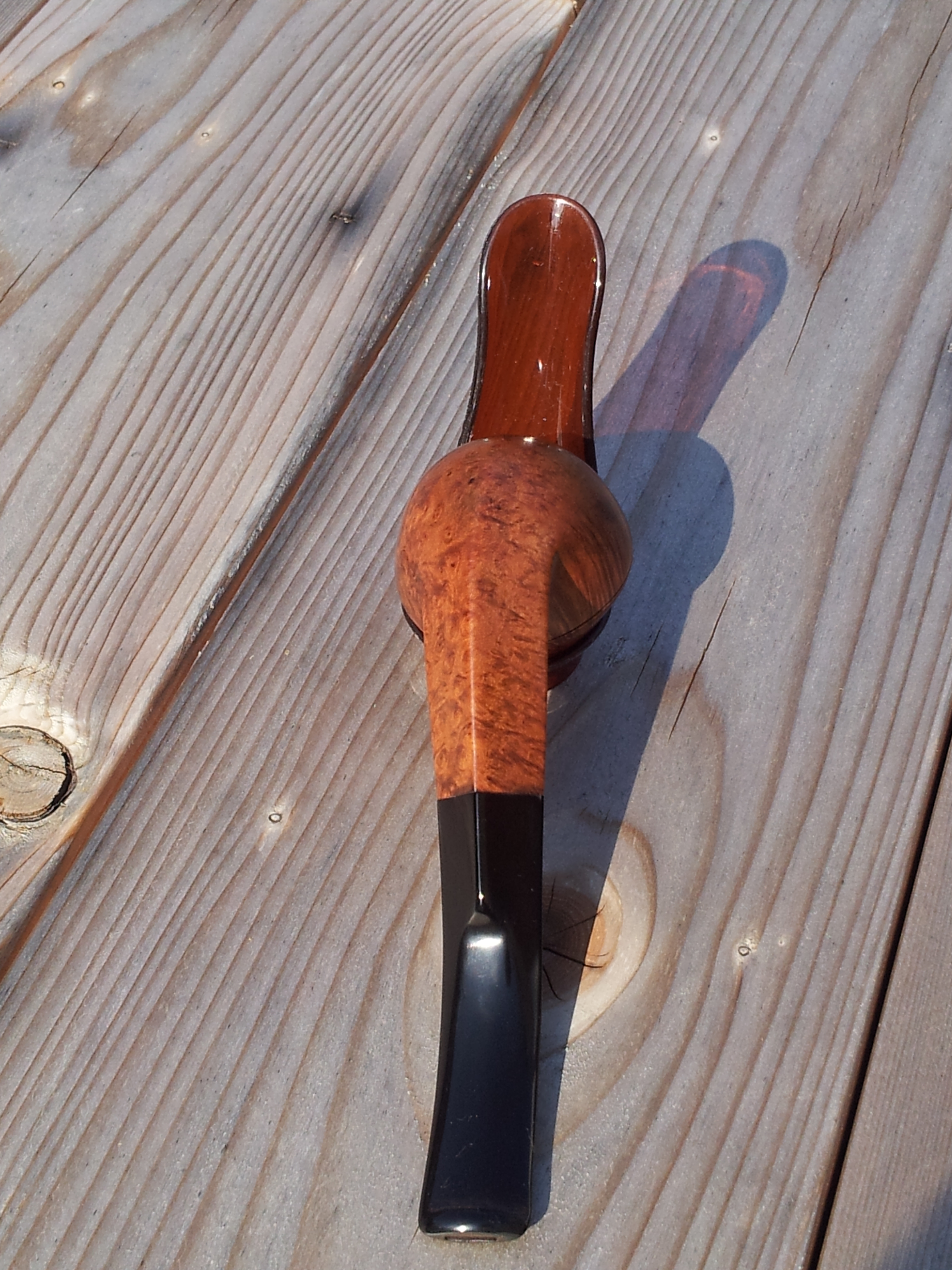

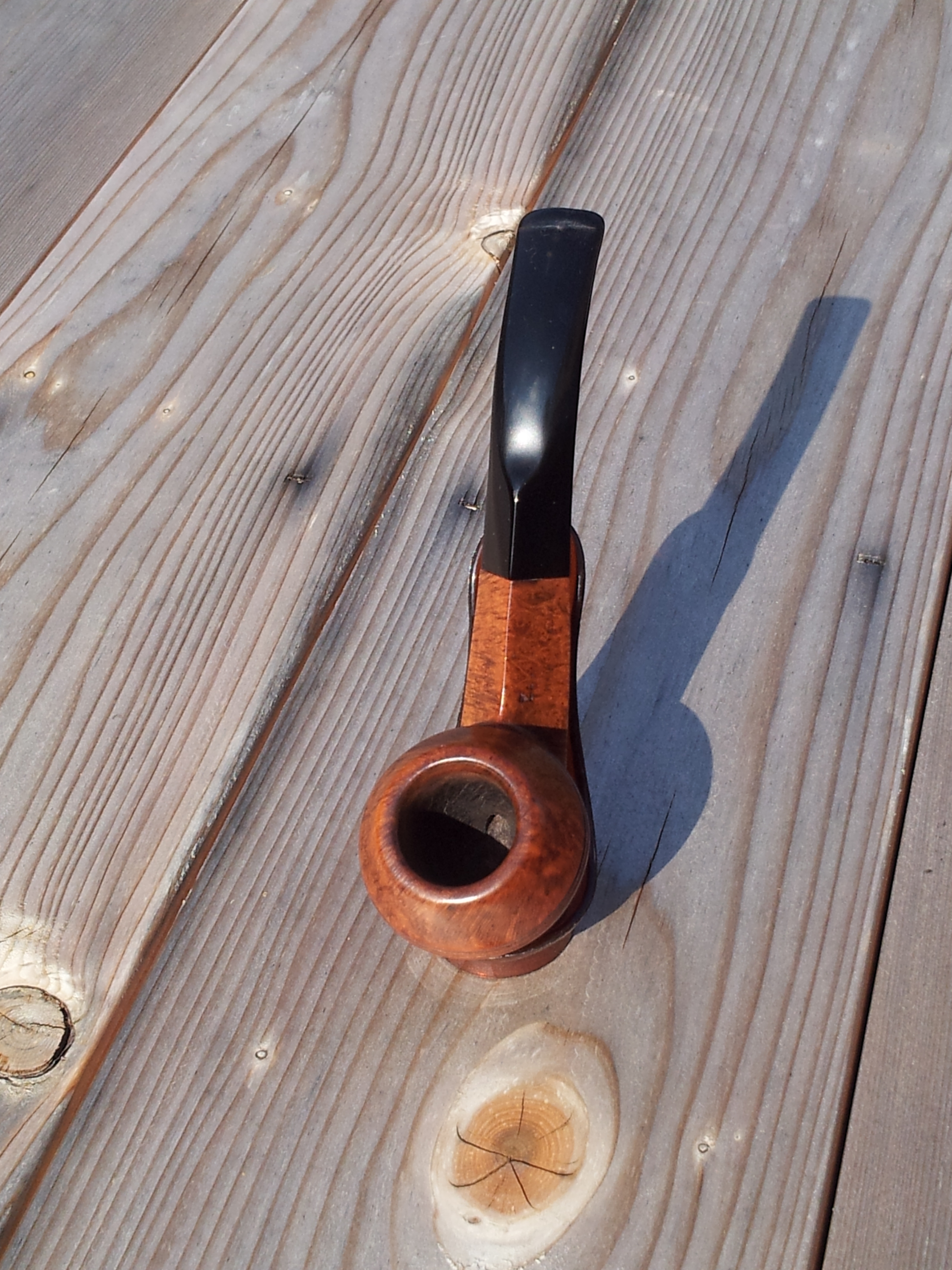

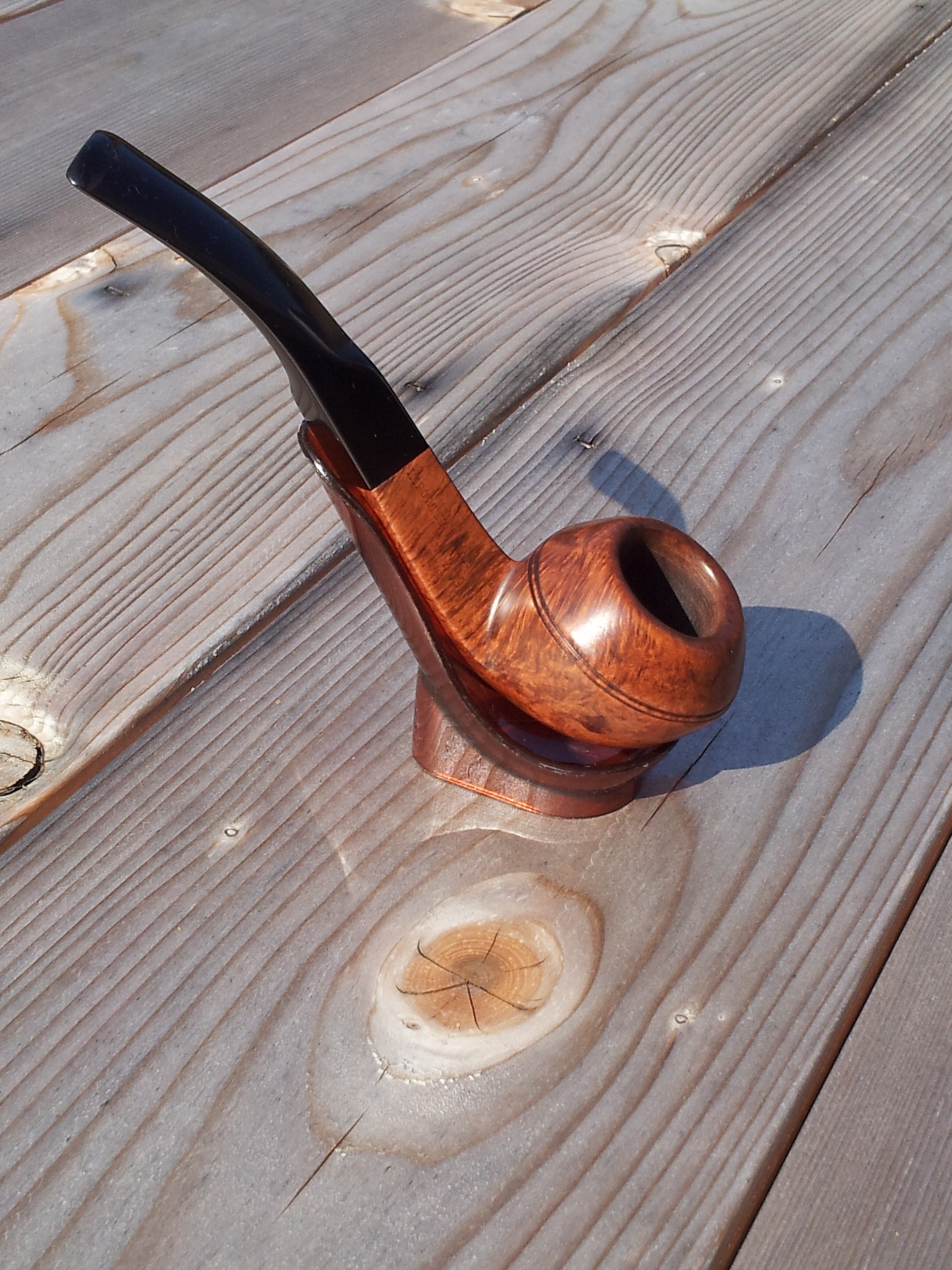

Finally, the pipe was given the full four-step buffing and polishing using Red Tripoli, White Diamond, wax and a final polish with a clean flannel buff. The finished pipe is shown below. The fills in the briar are still visible but smooth in the hand. I’m quite pleased with the way this pipe turned out. It looks pretty good, feels great in the hand, and the stem looks and feels good as new. This Rhodesian is ready for its new life in active rotation as part of a new piper’s rack!

20150816_165346 20150816_165404 20150816_165418 20150816_165429
